Rear Toe Adjustment

  1. Start the engine (6007) and center the steering wheel (3600).

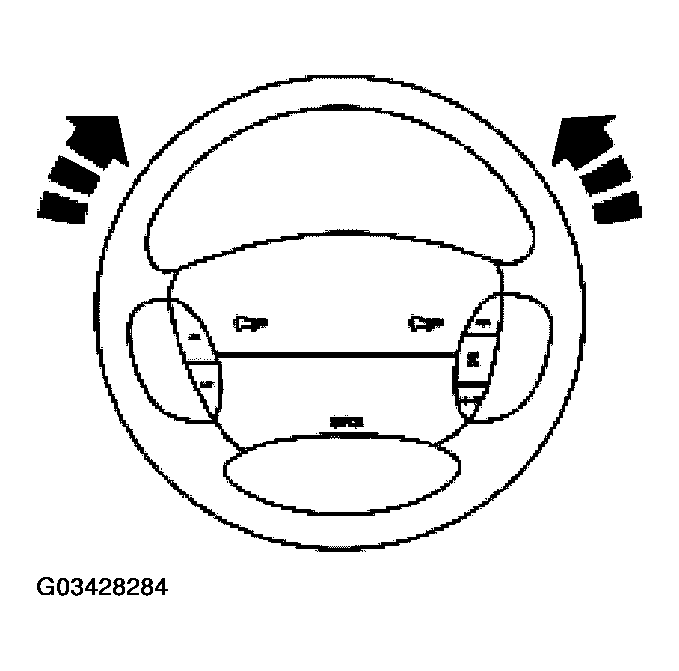

    Fig 1: Centering Steering Wheel
    G03428284Courtesy of FORD MOTOR CO.
  2. Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
  3. Loosen the nuts.
    • Clean and lubricate the nut(s) and rear toe link (5A962) threads.

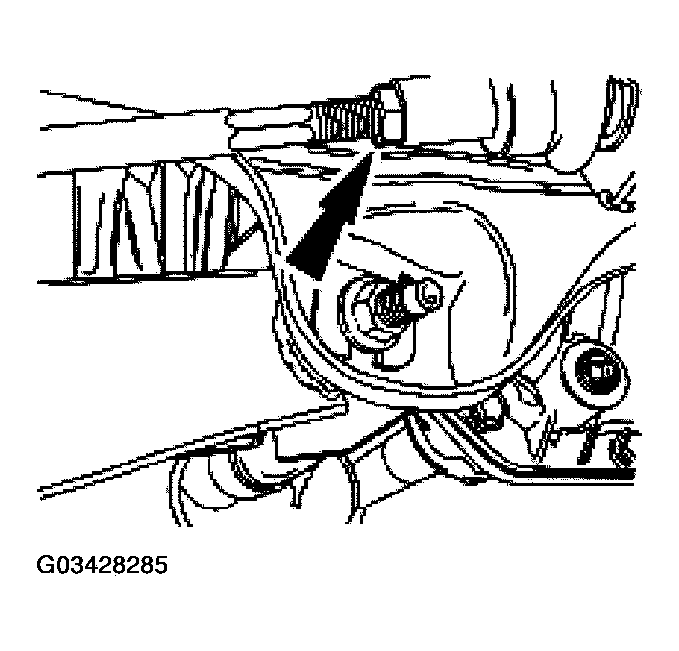

    Fig 2: Locating Nut
    G03428285Courtesy of FORD MOTOR CO.
  4. While holding the toe link spindle tie rod rotate the toe link adjuster.

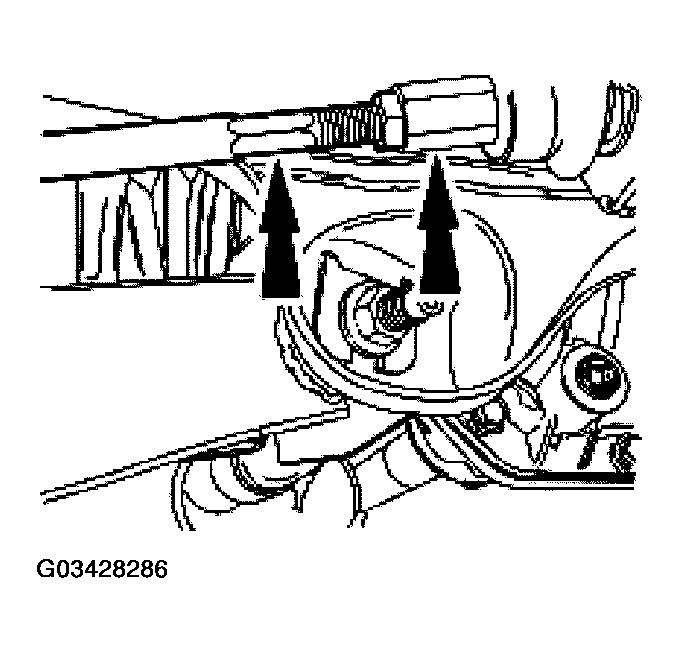

    Fig 3: Identifying Toe Link Adjuster
    G03428286Courtesy of FORD MOTOR CO.
    5. NOTE: Make sure the toe settings are not disturbed while tightening the nuts.

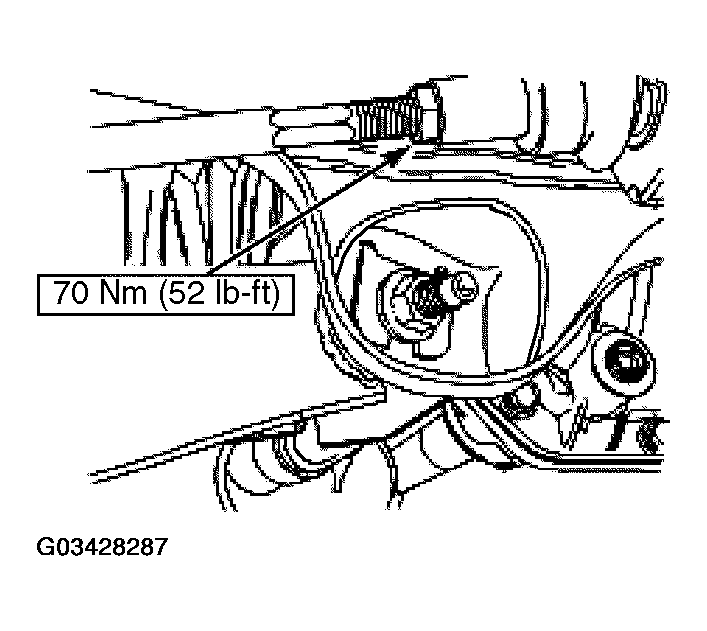

    Fig 4: Tightening Nut
    G03428287Courtesy of FORD MOTOR CO.
  5. While holding the adjuster, tighten the nuts.
