Main Control Valve Body: Disassembly

    NOTE: The valve body separator plate has a bonded gasket.
  1. Remove the valve body separator plate.

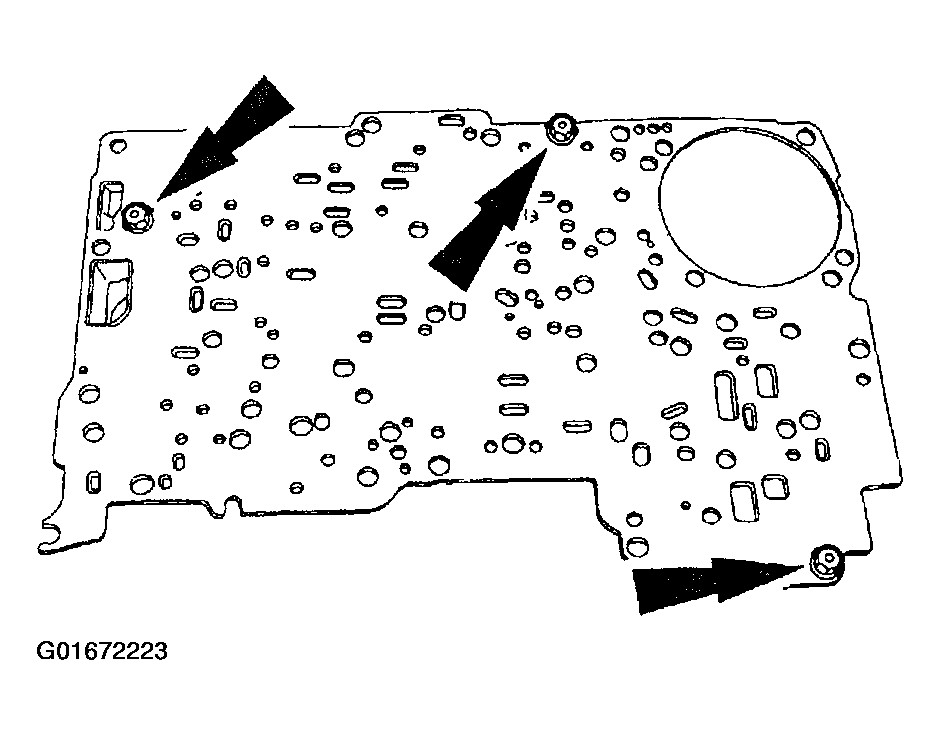

    2. Fig 1: Removing Valve Body Separator Plate
    G01672223Courtesy of FORD MOTOR CO.
  2. Remove the check balls.

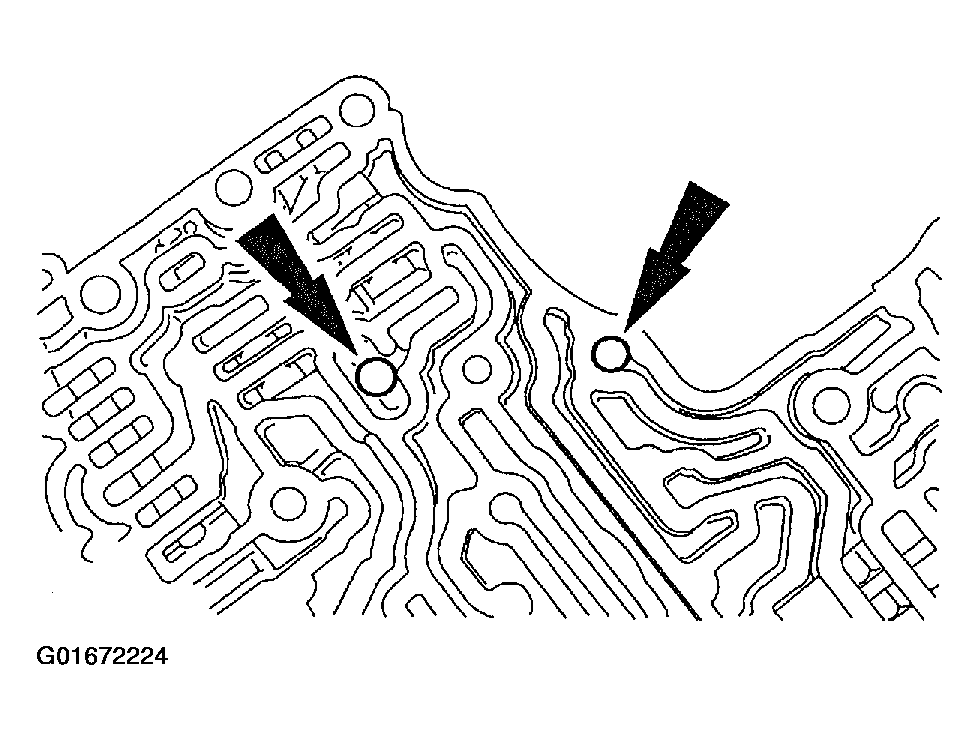

    3. Fig 2: Locating Check Balls
    G01672224Courtesy of FORD MOTOR CO.

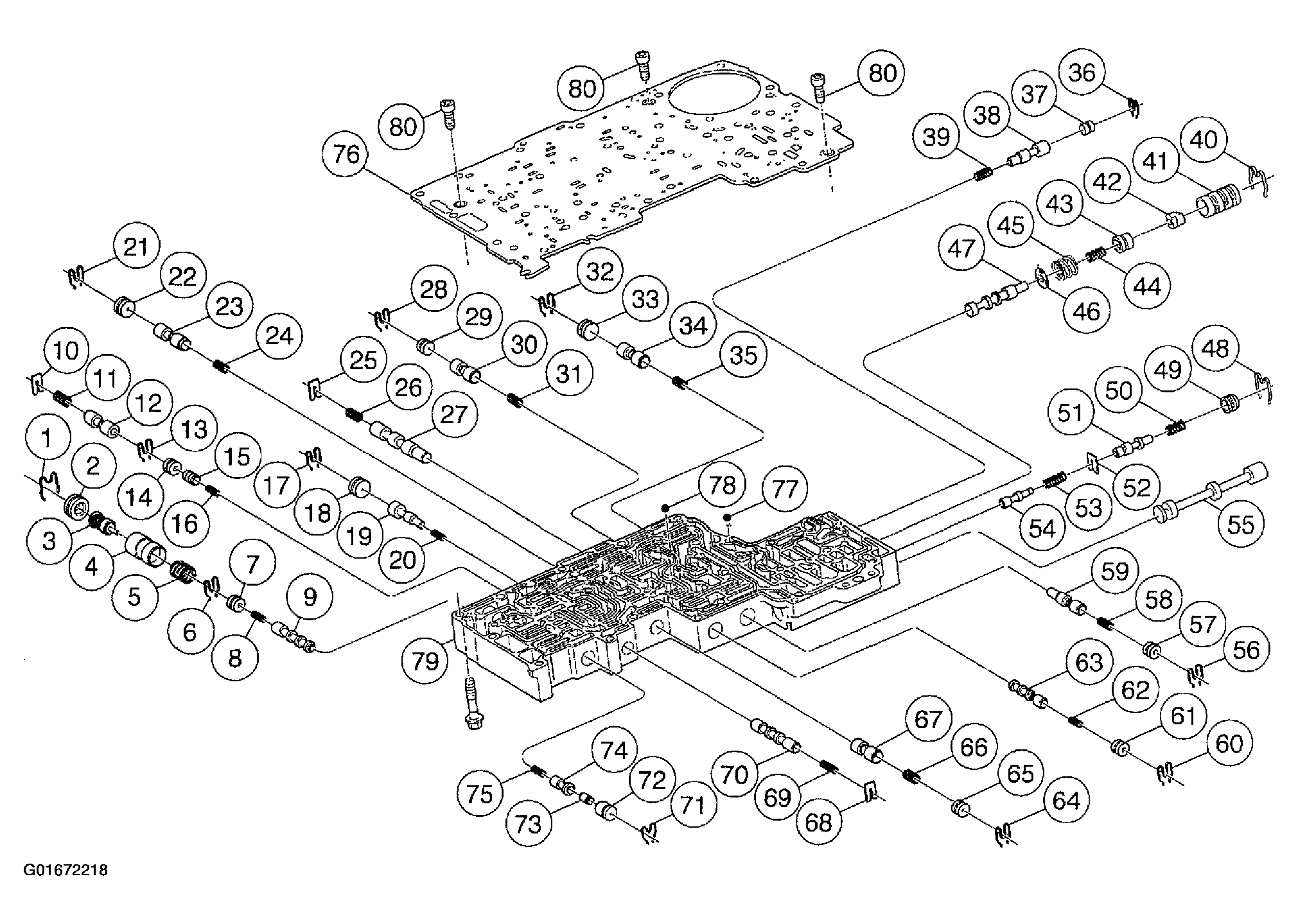

    NOTE: Refer to the disassembled view. See Figure .
  3. Disassemble the main control valve body.
