Direct Clutch Drum Assembly: Notes

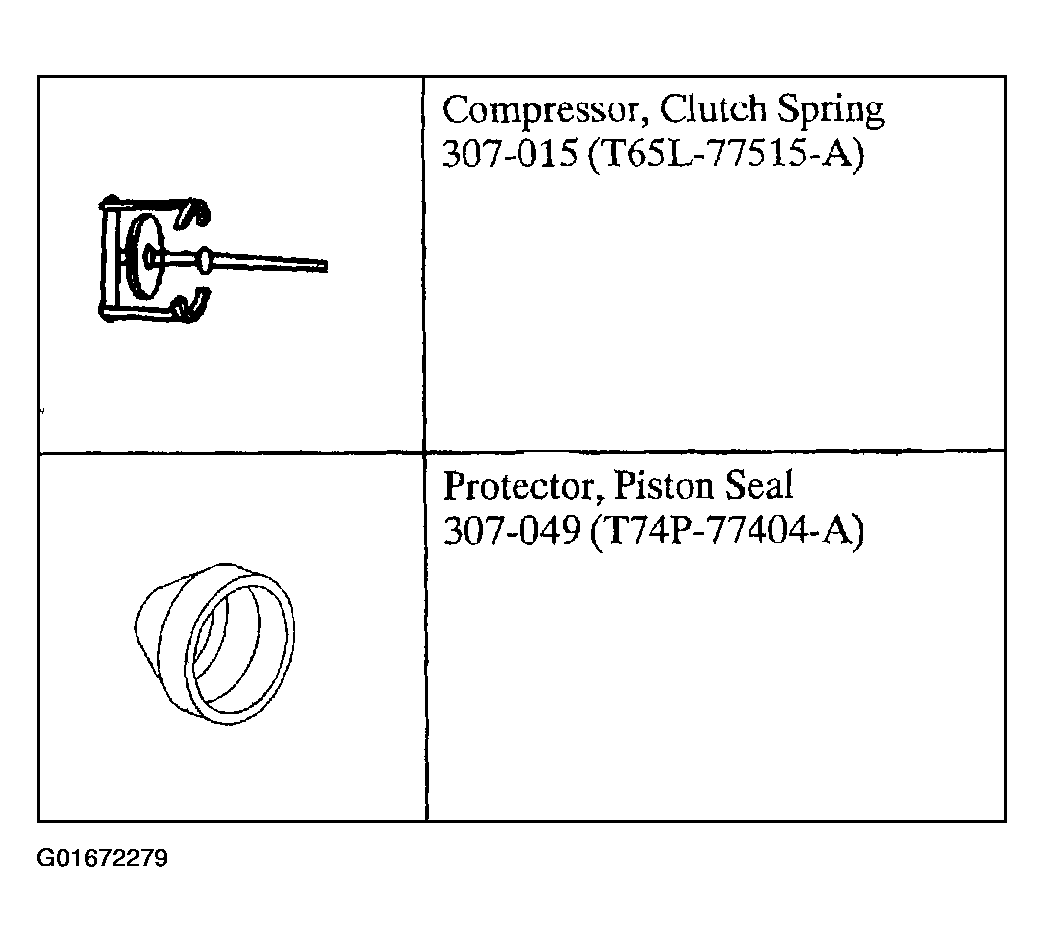

Fig 1: Special Tool(s)
G01672279Courtesy of FORD MOTOR CO.
Fig 2: Materials
G01672280Courtesy of FORD MOTOR CO.

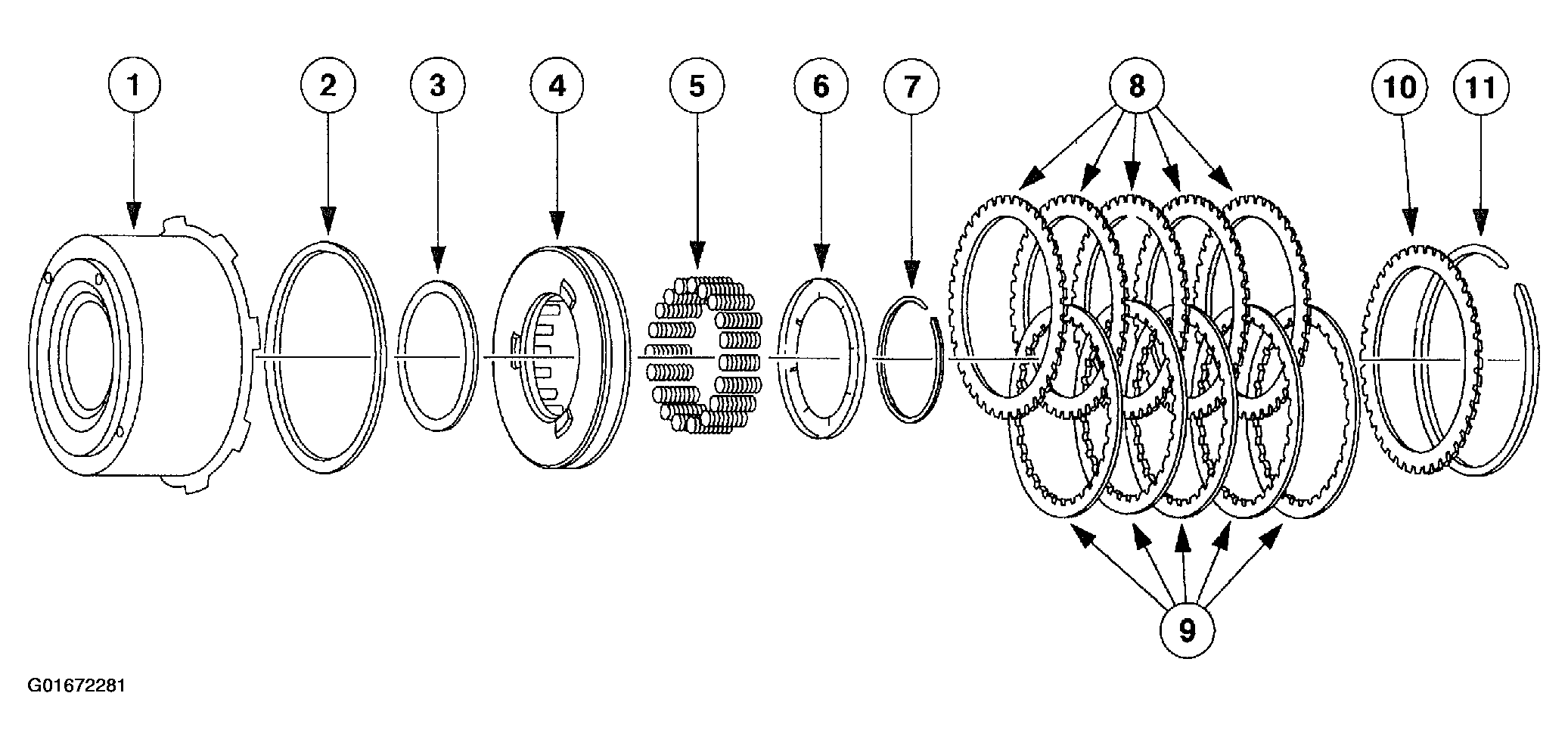

Fig 3: Direct Clutch Drum Assembly Component View
G01672281Courtesy of FORD MOTOR CO.

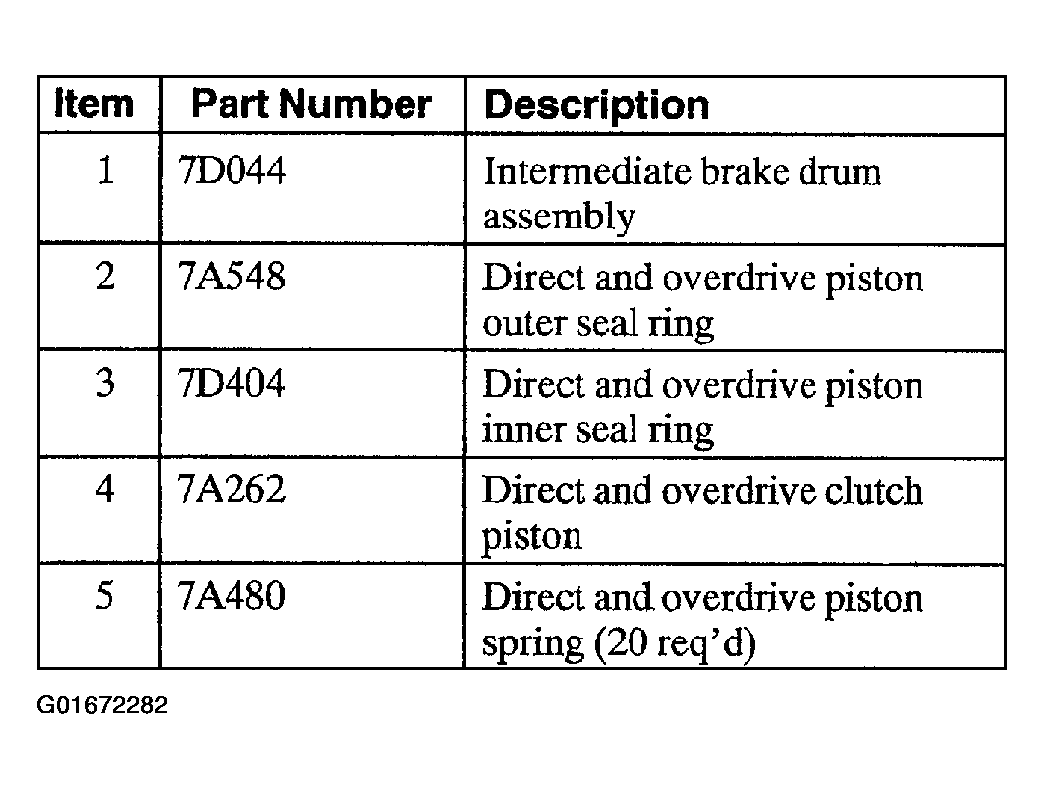

Fig 4: Direct Clutch Drum Assembly Component View Legend (Items 1-5)
G01672282Courtesy of FORD MOTOR CO.

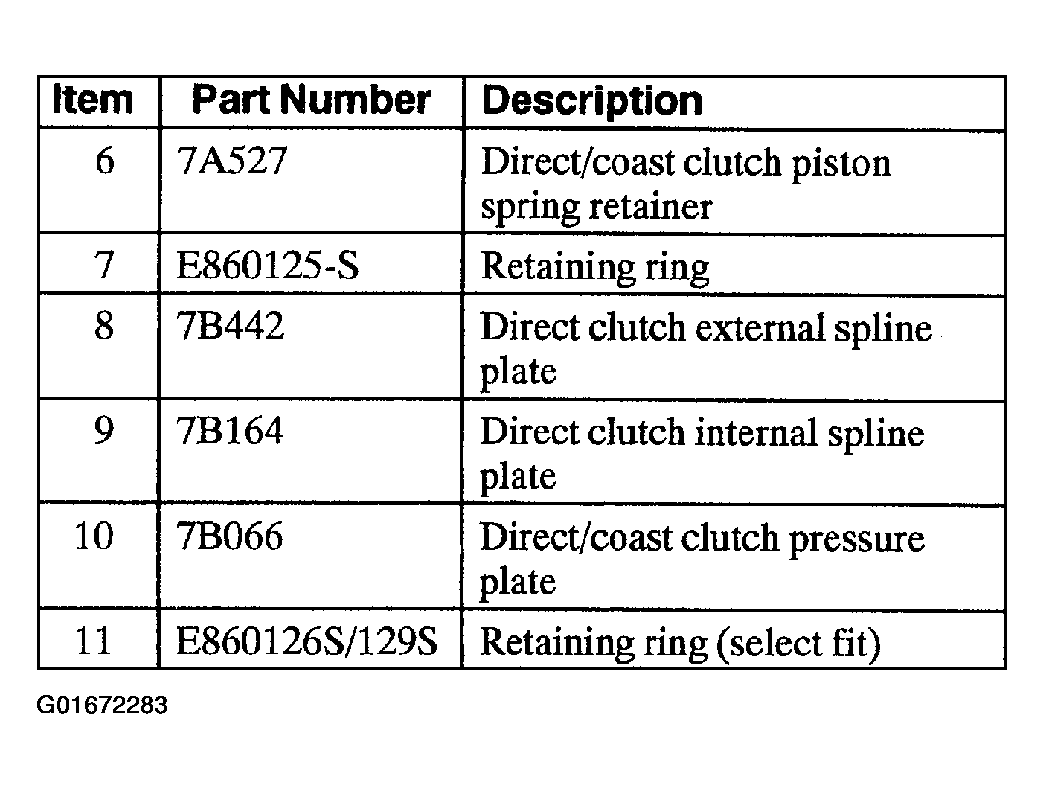

Fig 5: Direct Clutch Drum Assembly Component View Legend (Items 6-11)
G01672283Courtesy of FORD MOTOR CO.
