Four-Wheel Drive Control Module Connector End View (C281b)

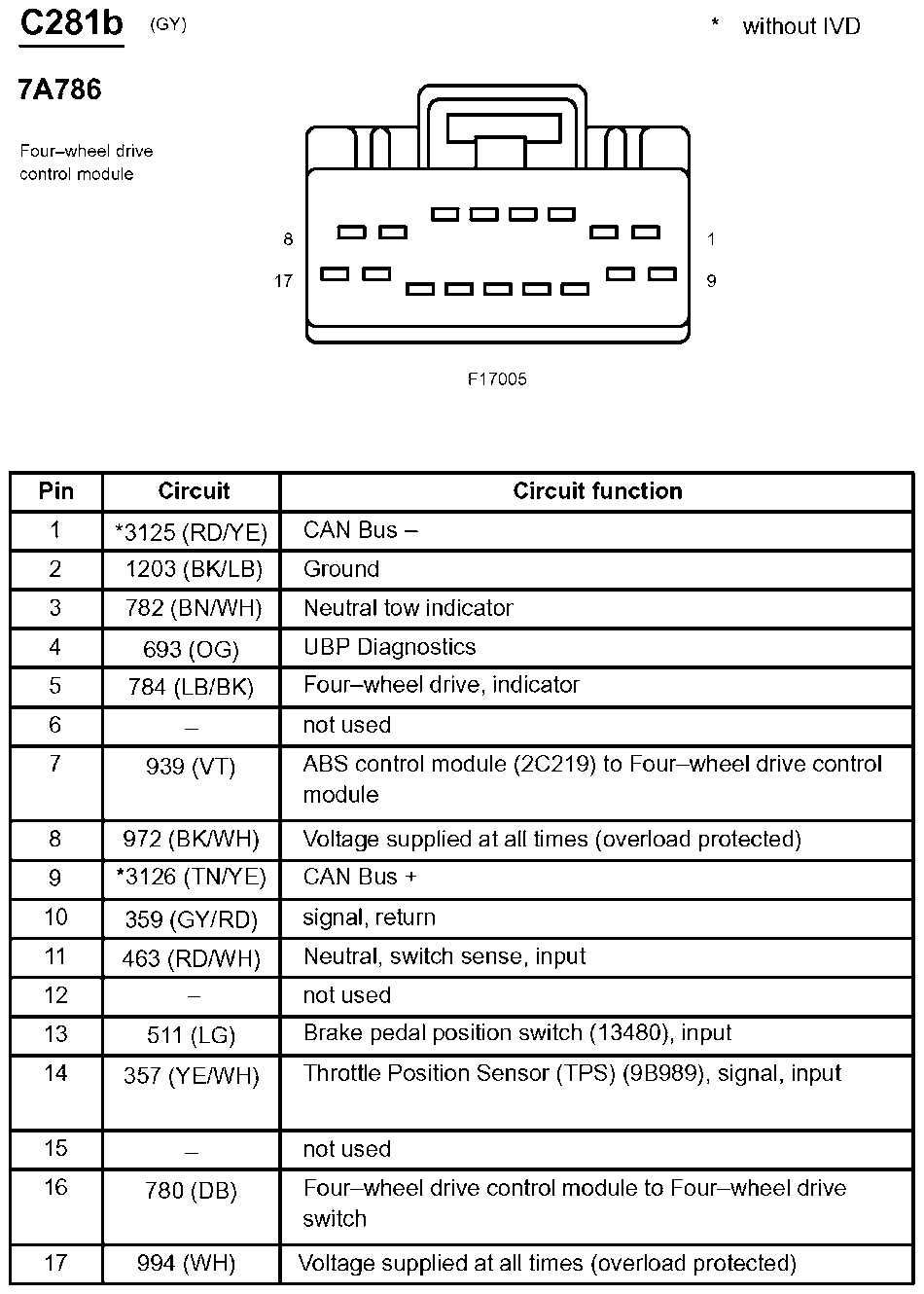

Fig 1: Four-Wheel Drive Control Module Connector End View (C281b)

G07832932

Courtesy of FORD MOTOR CO.
