Sensor - Front, 4x4: Removal

  1. Disconnect the front brake anti-lock sensor electrical connector.

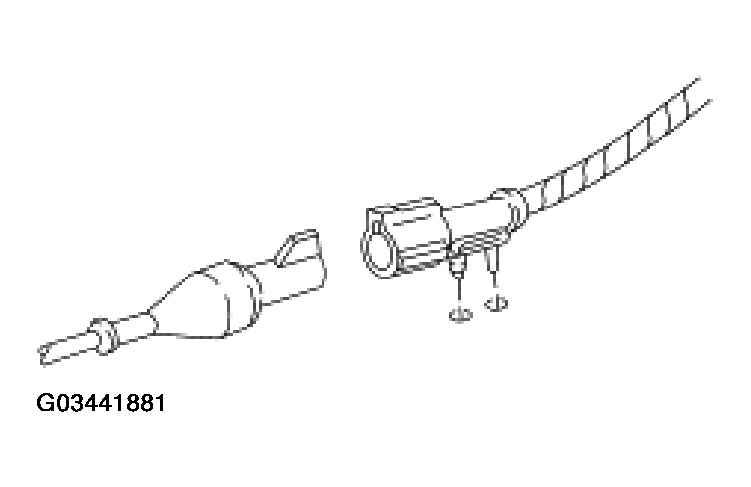

    Fig 1: Disconnecting Front Brake Anti-Lock Sensor Electrical Connector (4x4)
    G03441881Courtesy of FORD MOTOR CO.
  2. Remove the front disc brake rotor shield.
  3. Remove the (A) front brake anti-lock sensor bolts and the (B) front brake anti-lock sensor.

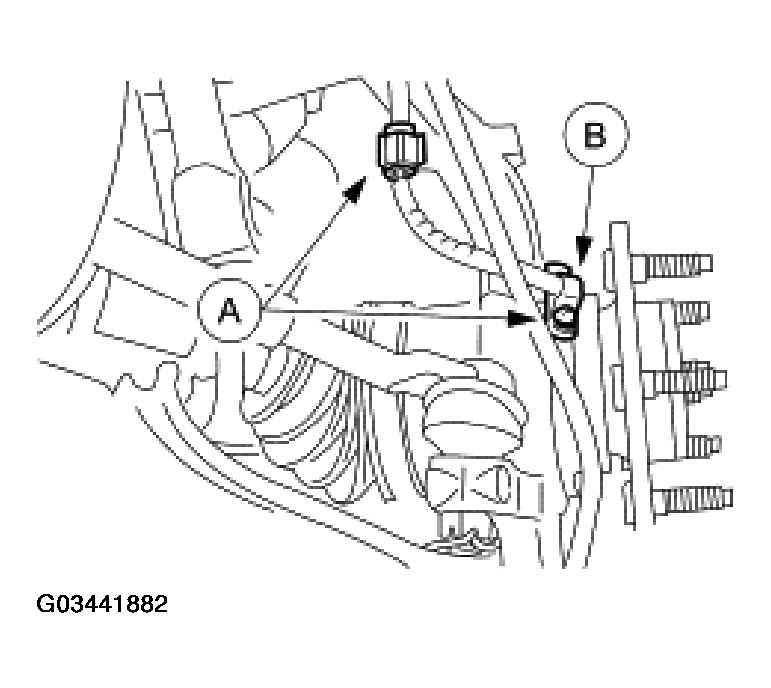

    Fig 2: Removing Front Brake Anti-Lock Sensor & Bolts (4x4)
    G03441882Courtesy of FORD MOTOR CO.
