Removal & Installation

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

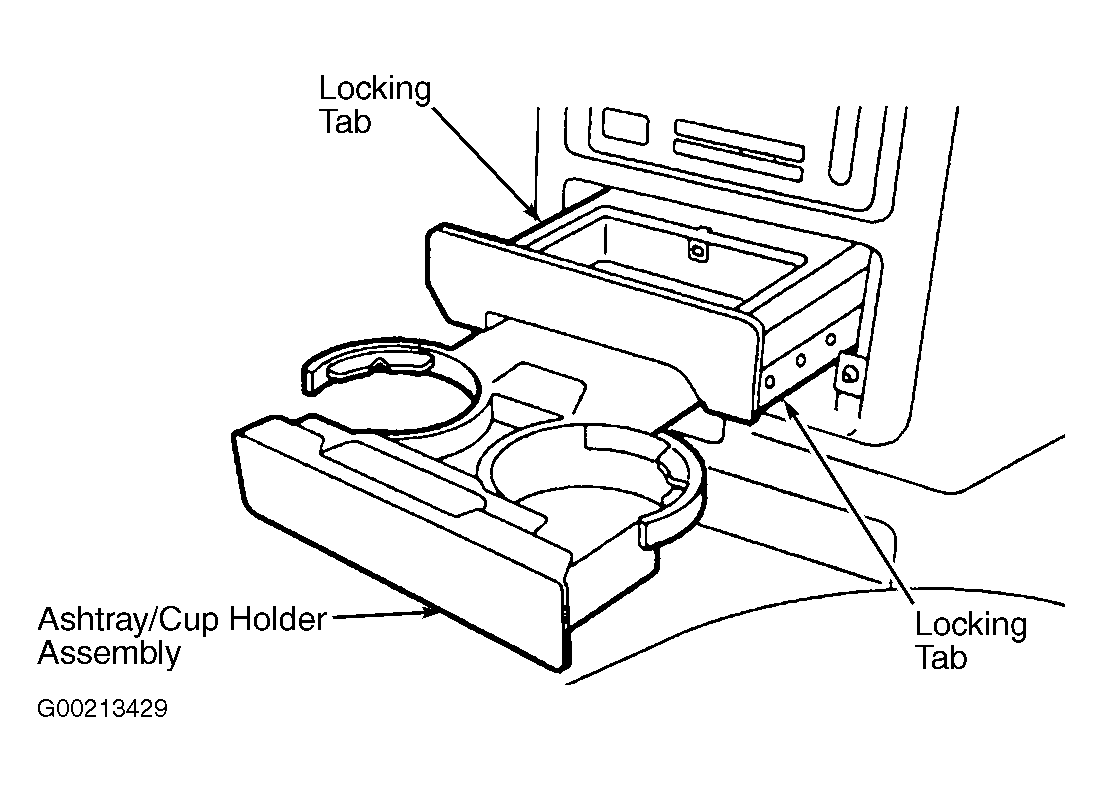

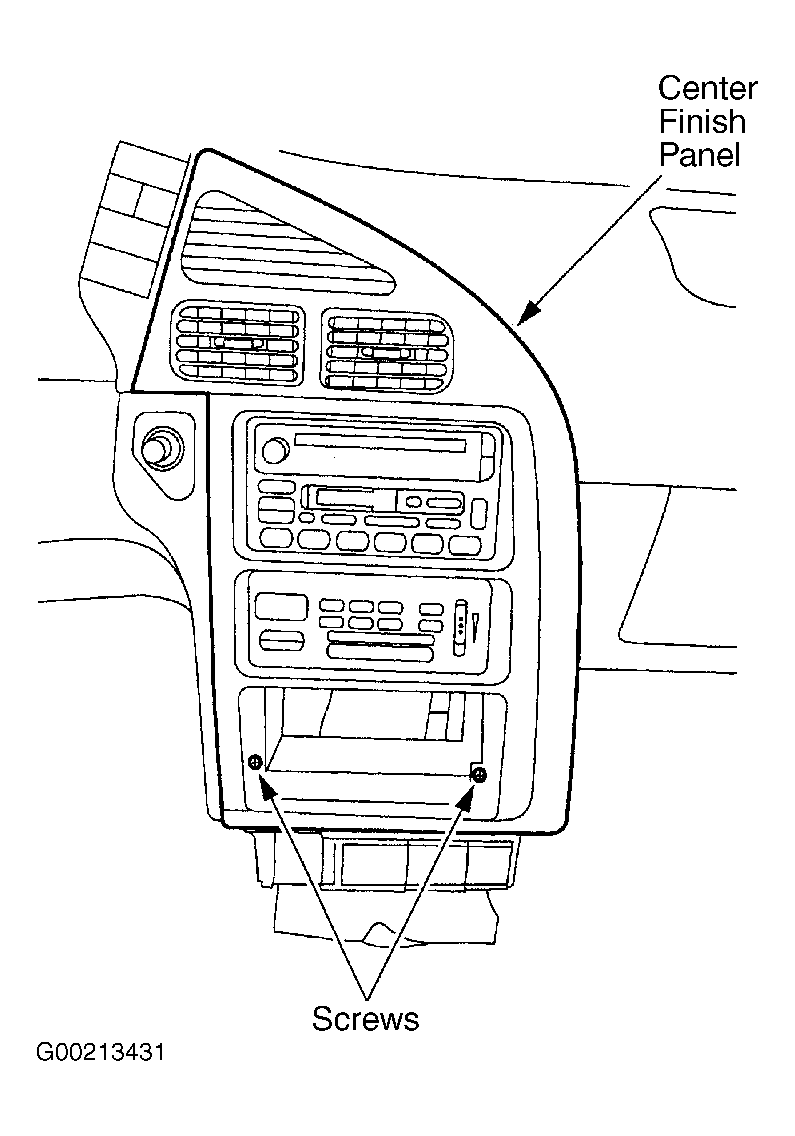

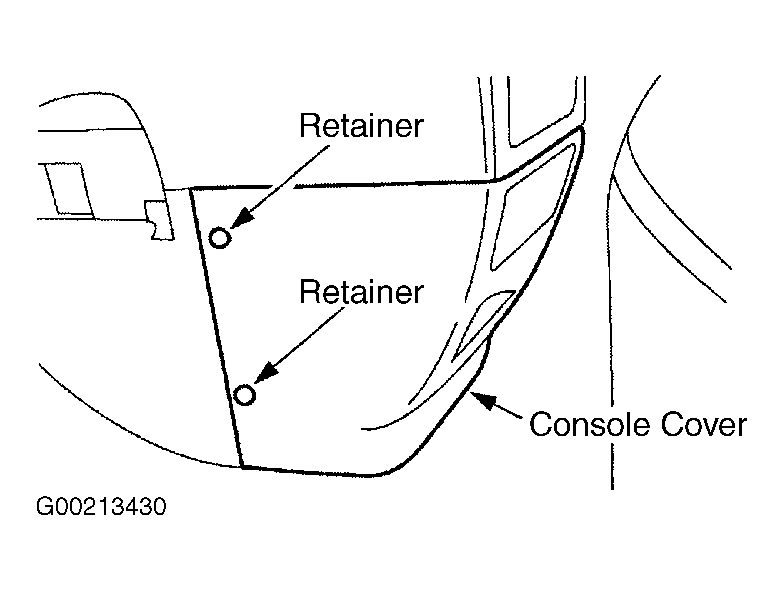

  1. Disconnect negative battery cable. Release 2 locking tabs and remove ashtray and cup holder assembly. See Figure. Disconnect ashtray and cup holder assembly electrical connector. Remove 4 pin-type retainers and console cover. See Figure. Remove 2 screws and instrument panel center finish panel. See Figure. Disconnect cigarette lighter electrical connector. Remove 4 screws and A/C control panel. See Fig 1. Disconnect connectors from back of control panel. See Fig 2. Remove control panel.
  2. To install, reverse removal procedure.

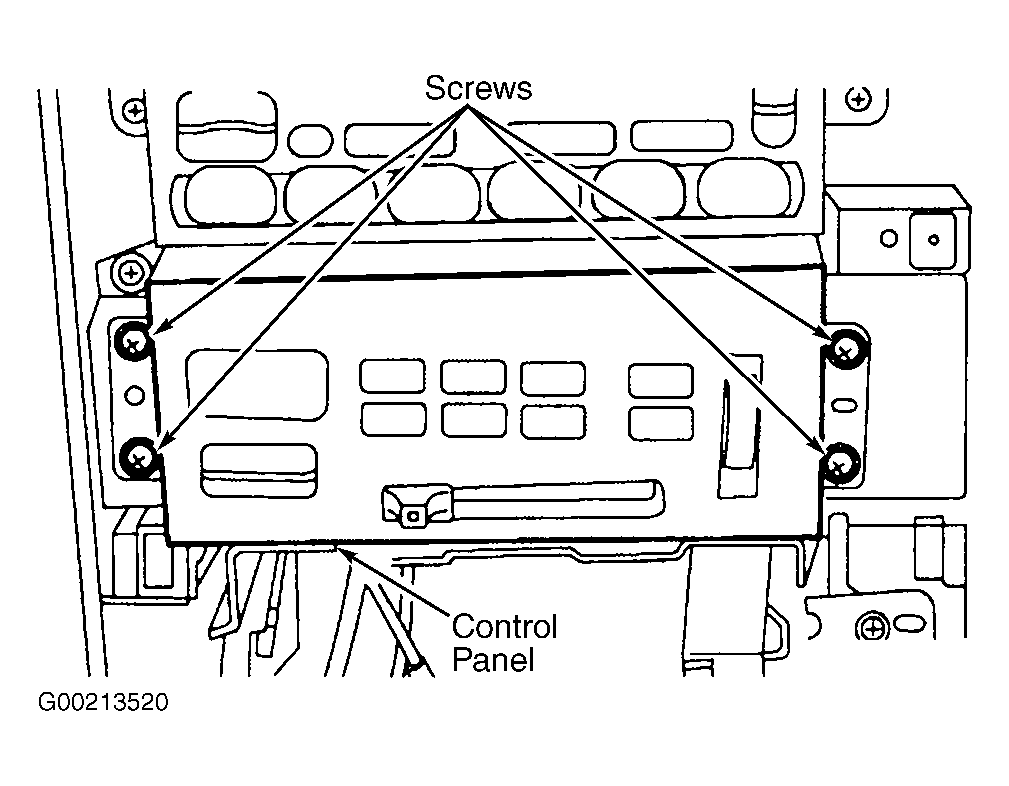

Fig 1: Removing Control Panel
G00213520Courtesy of FORD MOTOR CO.

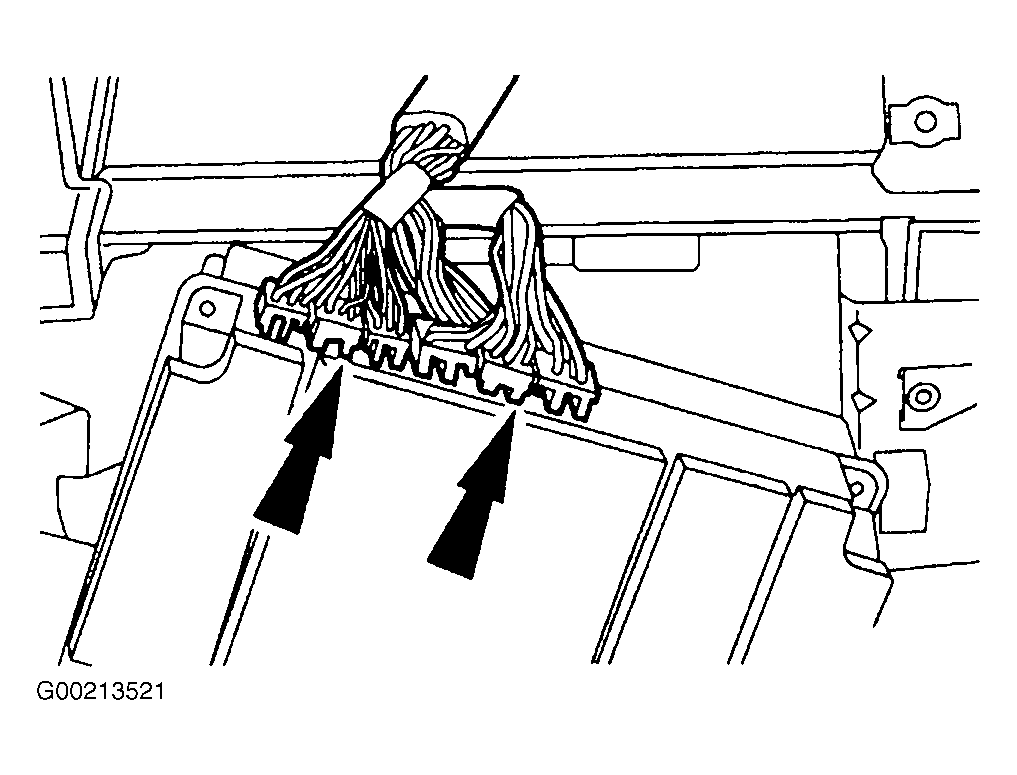

Fig 2: Identifying Control Panel Connectors
G00213521Courtesy of FORD MOTOR CO.
