Removal & Installation: Receiver/Dehydrator: Installation

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove protective caps from condenser, liquid line and receiver/dehydrator.
  2. Add the specified amount of PAG oil to the receiver/dehydrator. See SPECIFICATIONS  .
  3. Install NEW seal washers to the receiver/dehydrator.
  4. Install the receiver/dehydrator to the vehicle.
    5. CAUTION: Use a large pair of pliers to hold the fitting. Be careful not to twist the line.
  5. Install the receiver/dehydrator nut to the liquid line.
  6. Install the receiver/dehydrator nut to the condenser. Tighten the nut to specification. See TORQUE SPECIFICATIONS  .

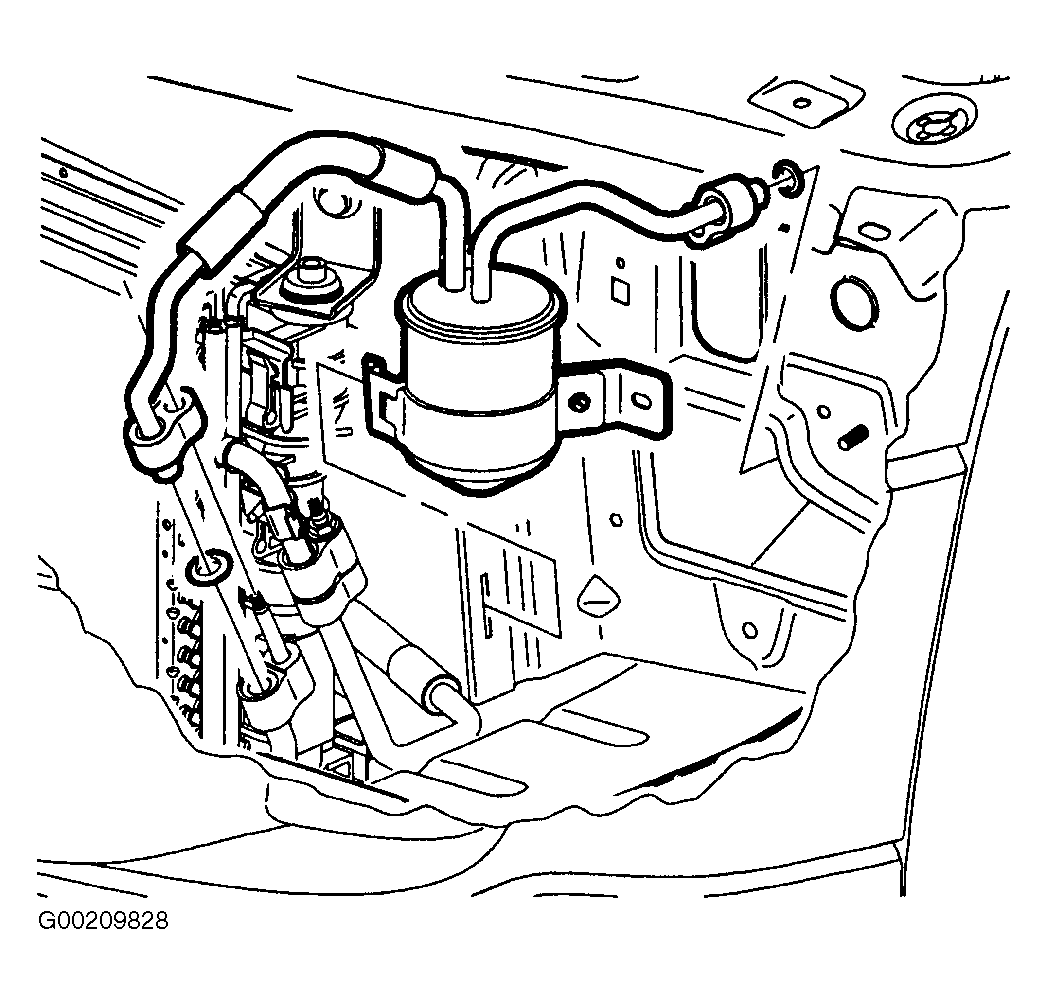

  7. Position the receiver/dehydrator in the vehicle. See Figure .
  8. Install the receiver/dehydrator nut to the vehicle. Tighten the bolt to specification. See TORQUE SPECIFICATIONS  .

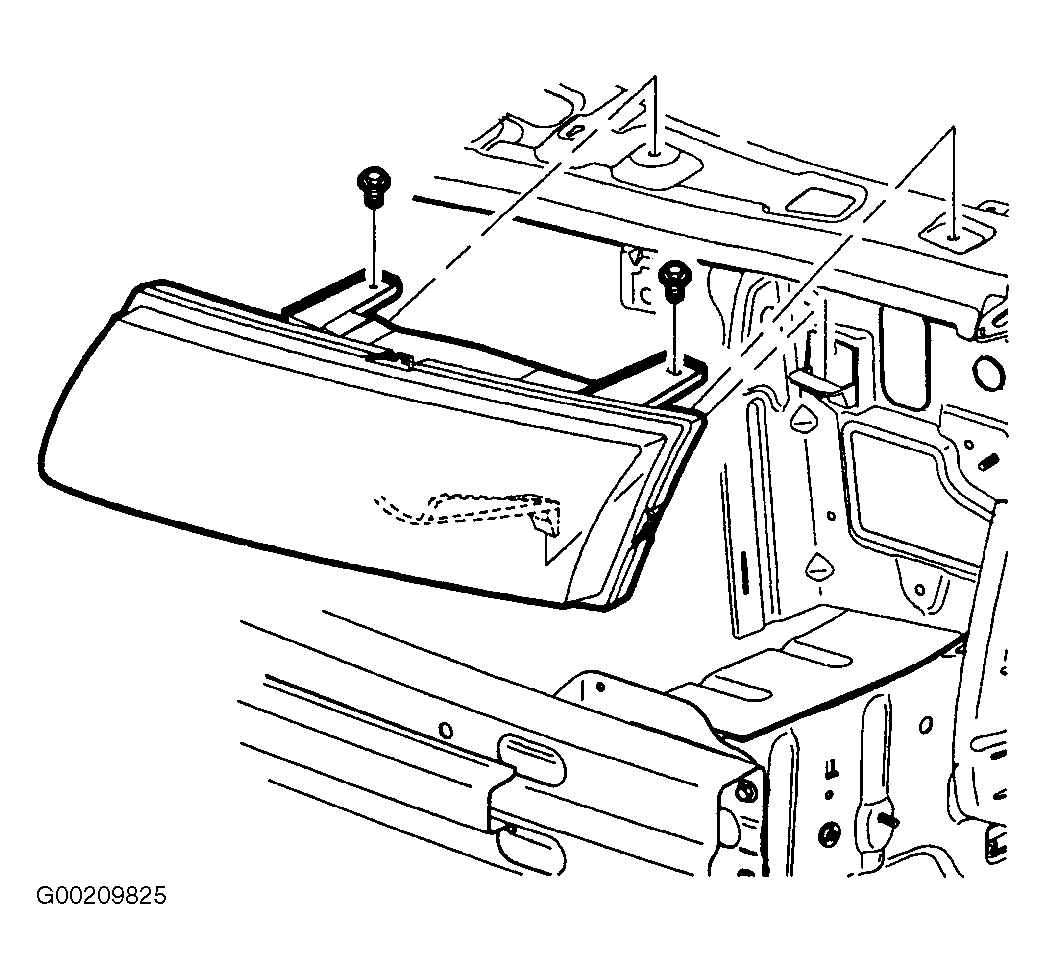

  9. Install left head lamp. See Figure .
  10. Evacuate and charge the A/C system. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING.
