A/C Pressure Sensor: Installation

WARNING: This page is about a different car, the 2002 Saturn LW300, 2002 Saturn LW200, 2002 Saturn L300, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate and install NEW "O" ring. Install A/C pressure sensor to liquid line and using a back-up wrench to support the liquid line, tighten A/C pressure sensor to specification. See TORQUE SPECIFICATIONS . Install A/C pressure sensor connector.

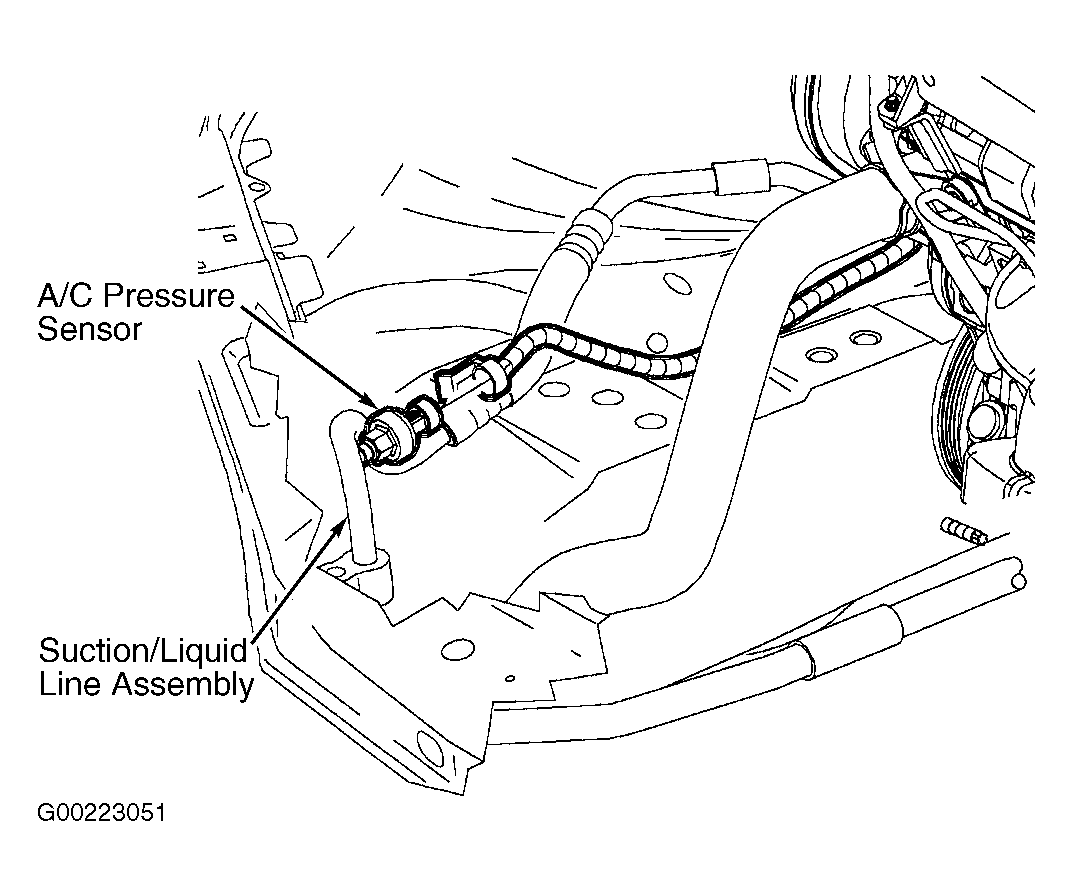

Fig 1: Removing & Installing A/C Pressure Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing & Installing A/C Pressure Sensor

Courtesy of GENERAL MOTORS CORP.
