Item 64: Center Support Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The center support is repaired as an assembly. Any damage requires installing a new component.

NOTE: When removing the center support, pull evenly around the center support web.

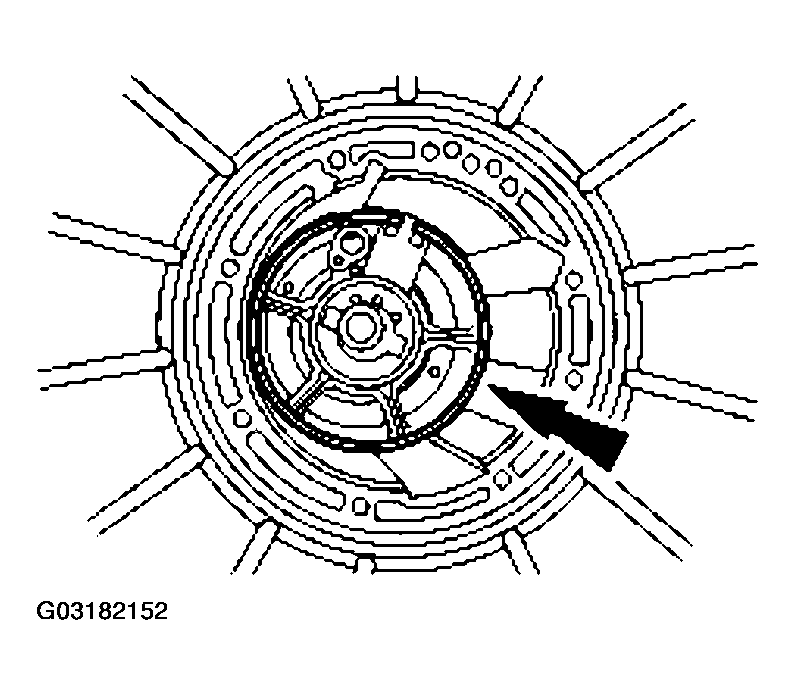

Fig 1: Removing Center Support

Courtesy of FORD MOTOR CO.

Remove the center support.
