Pinpoint Test H: The Module Does Not Respond To The Diagnostic Tool - Next Generation Speed Control (NGSC) Servo

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

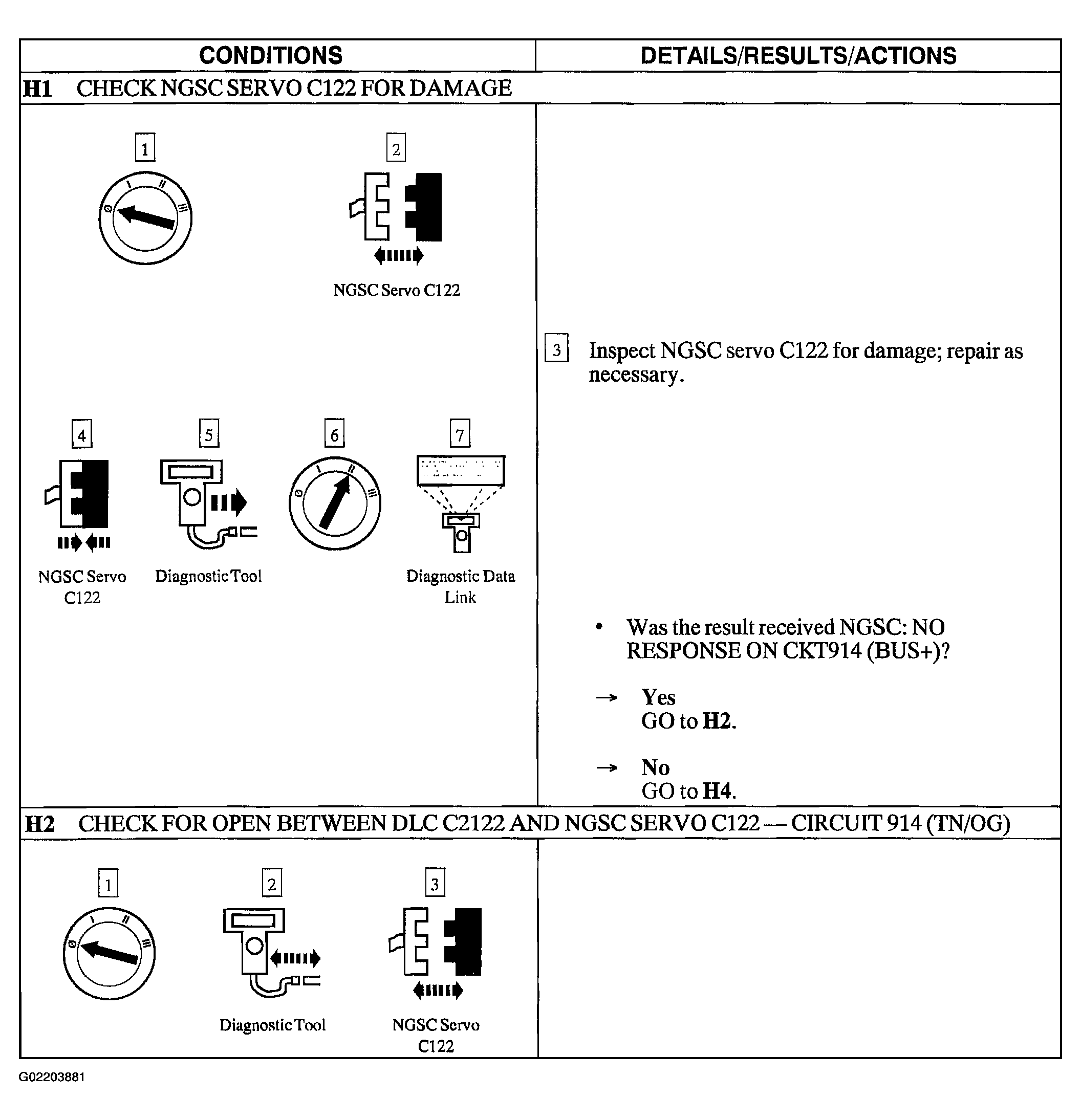

Fig 1: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H1-H2)
G02203881Courtesy of FORD MOTOR CO.

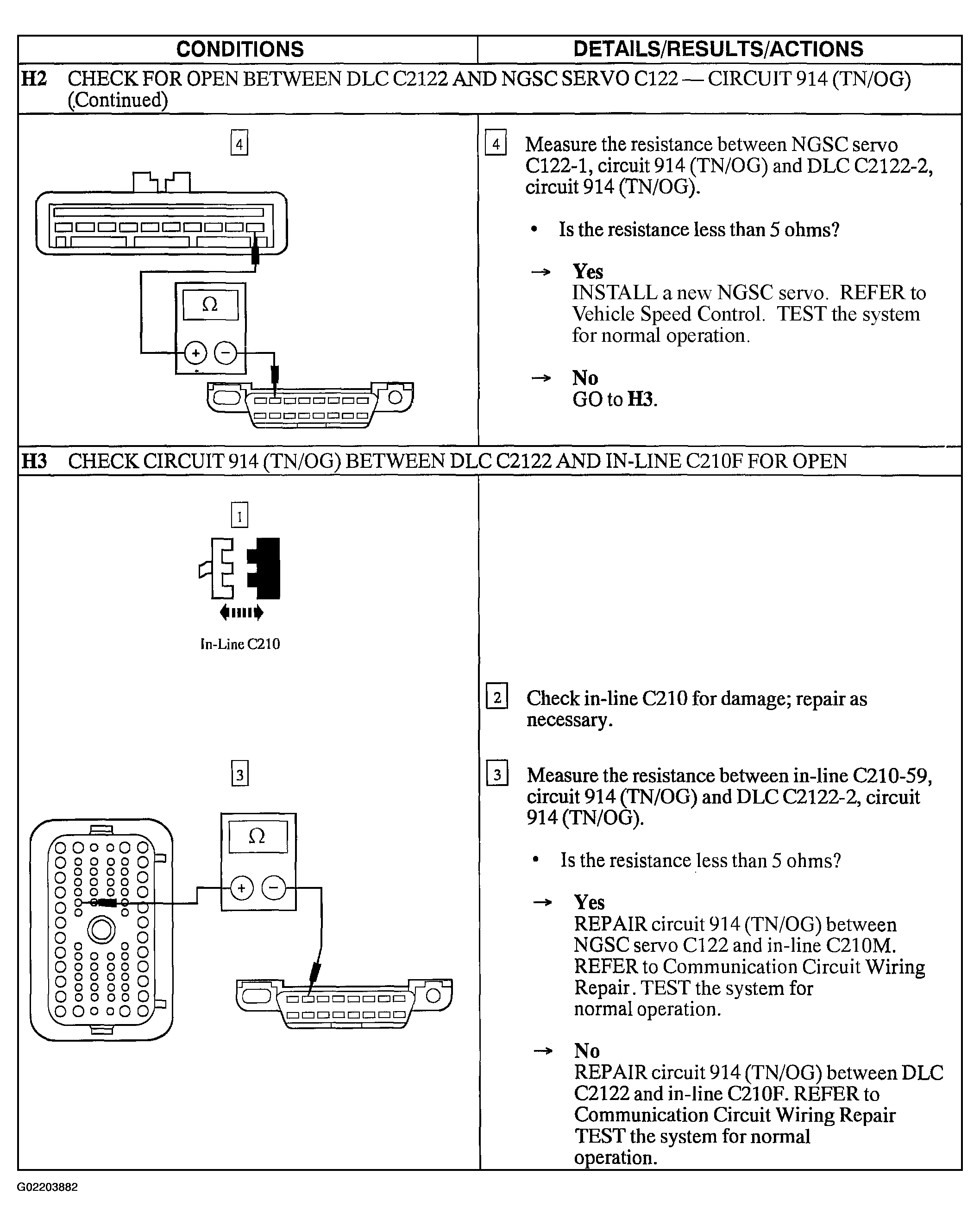

Fig 2: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H2 Cont.-H3)
G02203882Courtesy of FORD MOTOR CO.

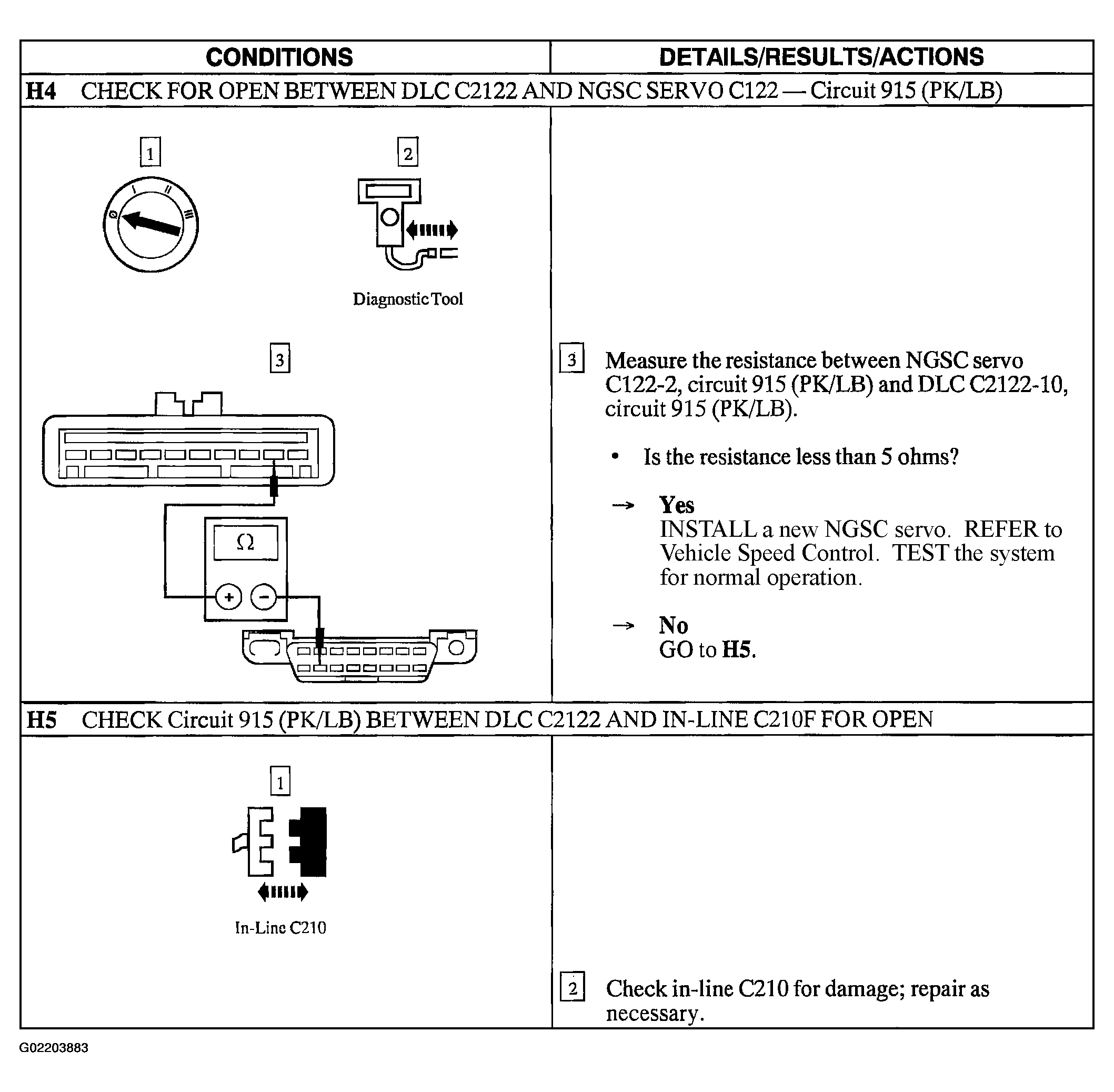

Fig 3: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H4-H5)
G02203883Courtesy of FORD MOTOR CO.

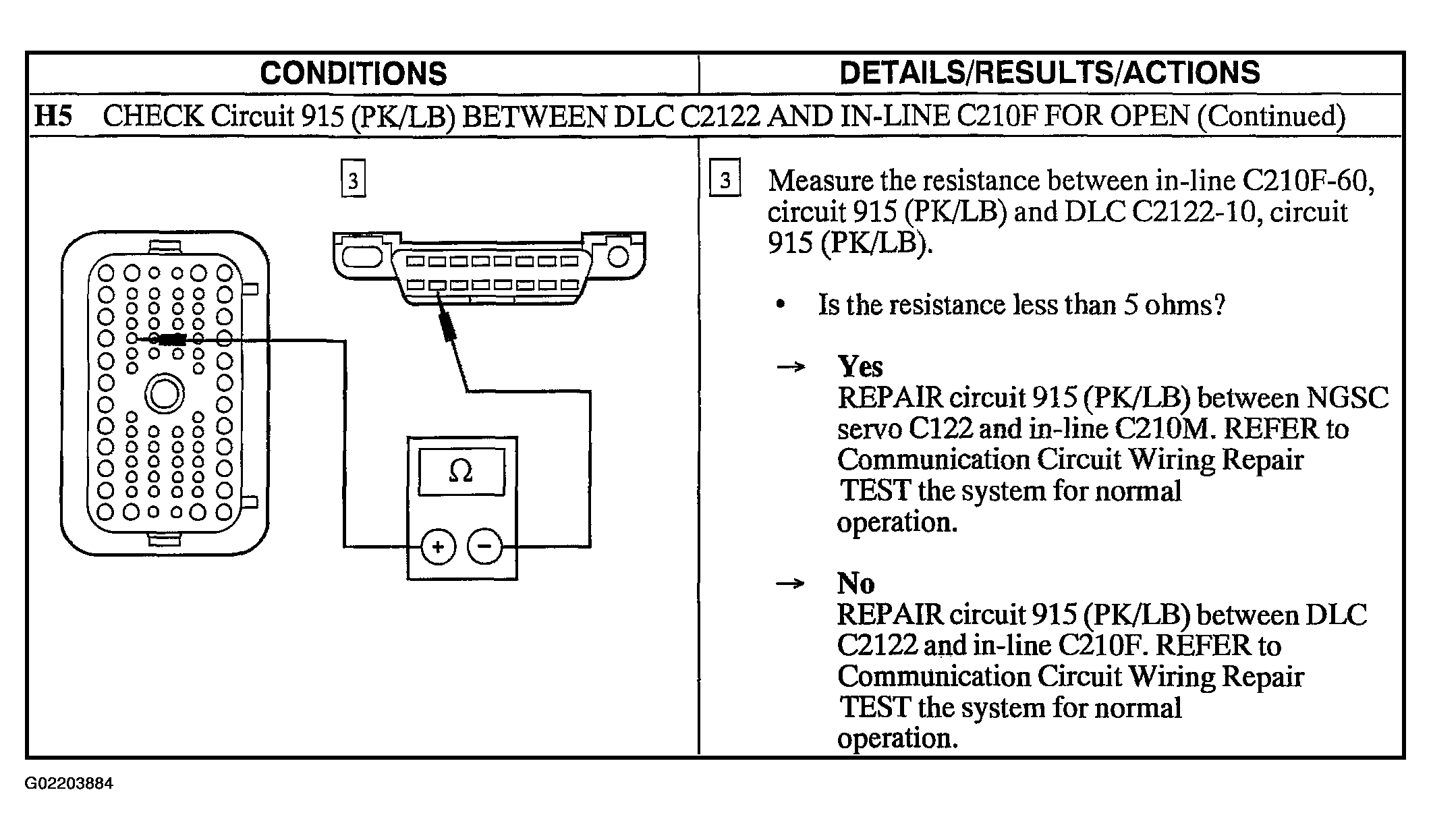

Fig 4: Pinpoint Test H: Module Does Not Respond To Diagnostic Tool - Next Generation Speed Control (NGSC) Servo (H5)
G02203884Courtesy of FORD MOTOR CO.
