Engine Identification
WARNING: This page is about a different variant/trim than selected.
The Power Stroke 7.3L diesel engine may be identified by eighth character of Vehicle Identification Number (VIN). VIN is stamped on a metal tab located near lower left corner of windshield. VIN is also located on Vehicle Safety Compliance Certification Label on driver-side door, or on driver-side door pillar post.

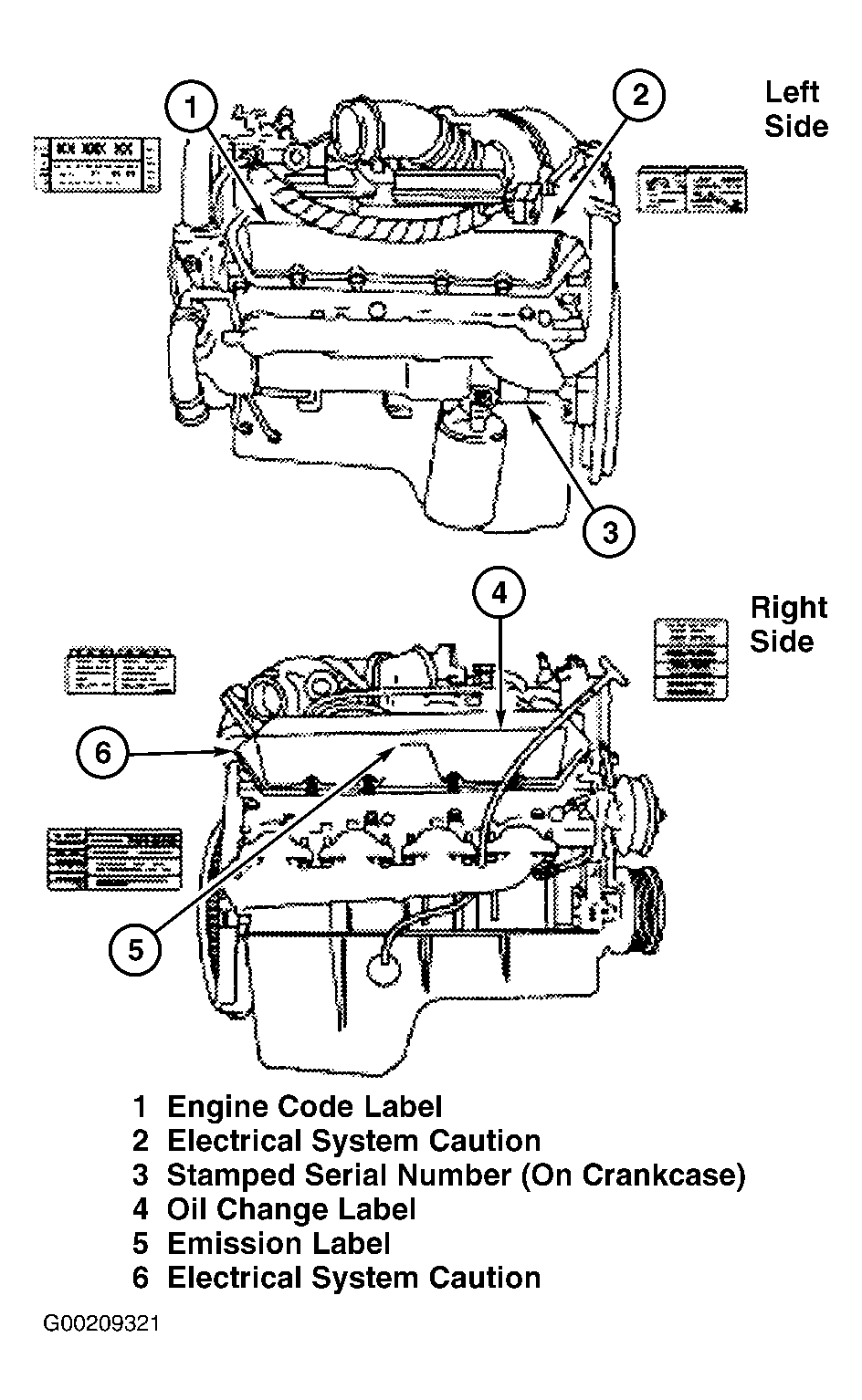

Engine serial number is stamped on driver-side of cylinder block, just behind the oil filter. See Fig 1. Engine calibration code is stamped on engine calibration code label. Engine calibration code label is located on driver-side door pillar post. Engine serial number and engine calibration code may be required when ordering replacement components.
ENGINE IDENTIFICATION CODE
| Application | Code |
|---|---|
| 7.3L Turbo Diesel | F |
