Section 6 (Engine - 7.3L V8 Turbo Diesel): Description: Notes

WARNING: This page is about a different variant/trim than selected.

NOTE: For exploded view of engine, see Fig 1 and Fig 2 .

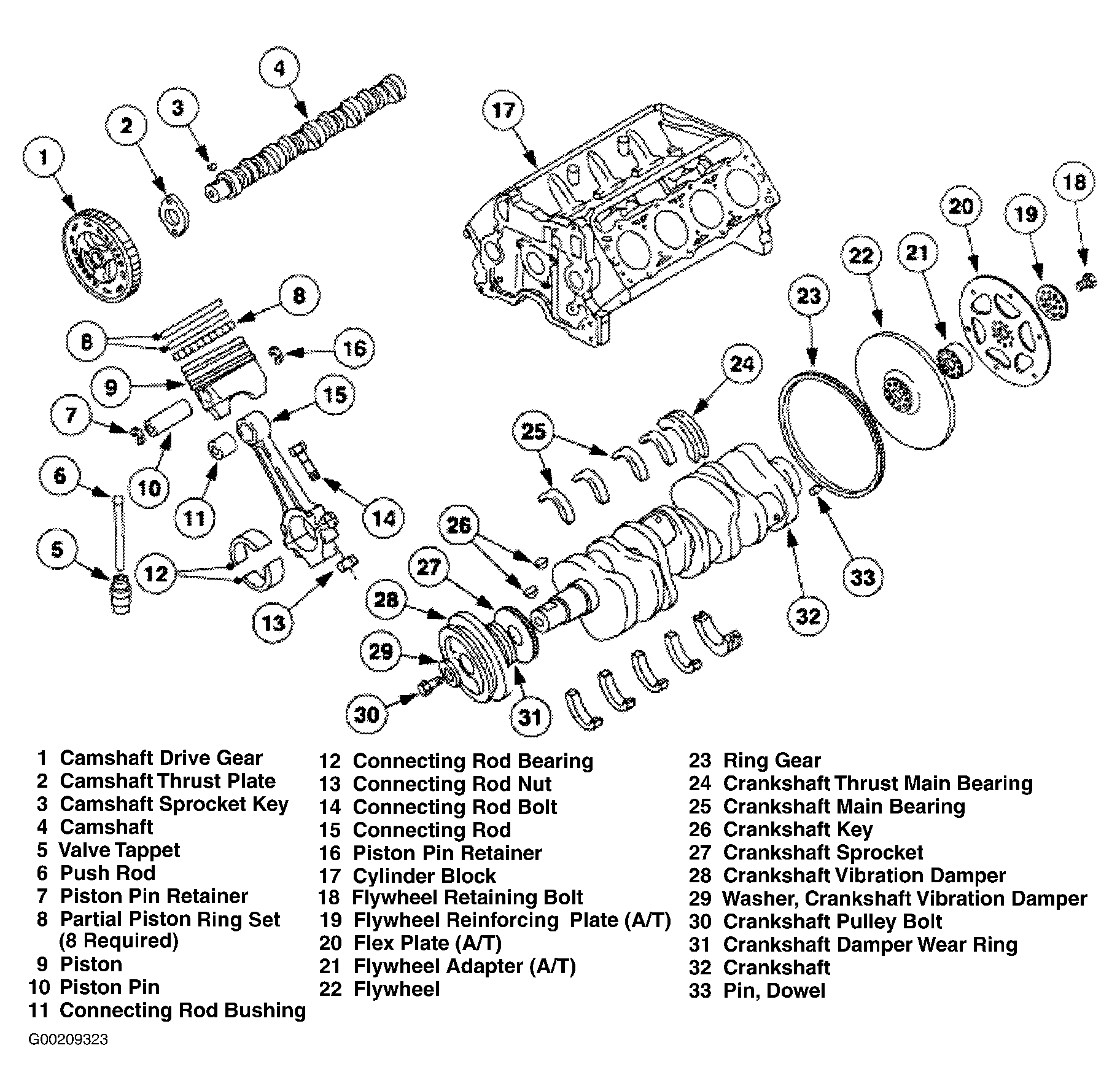

Fig 1: Exploded View Of Engine (1 Of 2)

Courtesy of FORD MOTOR CO.

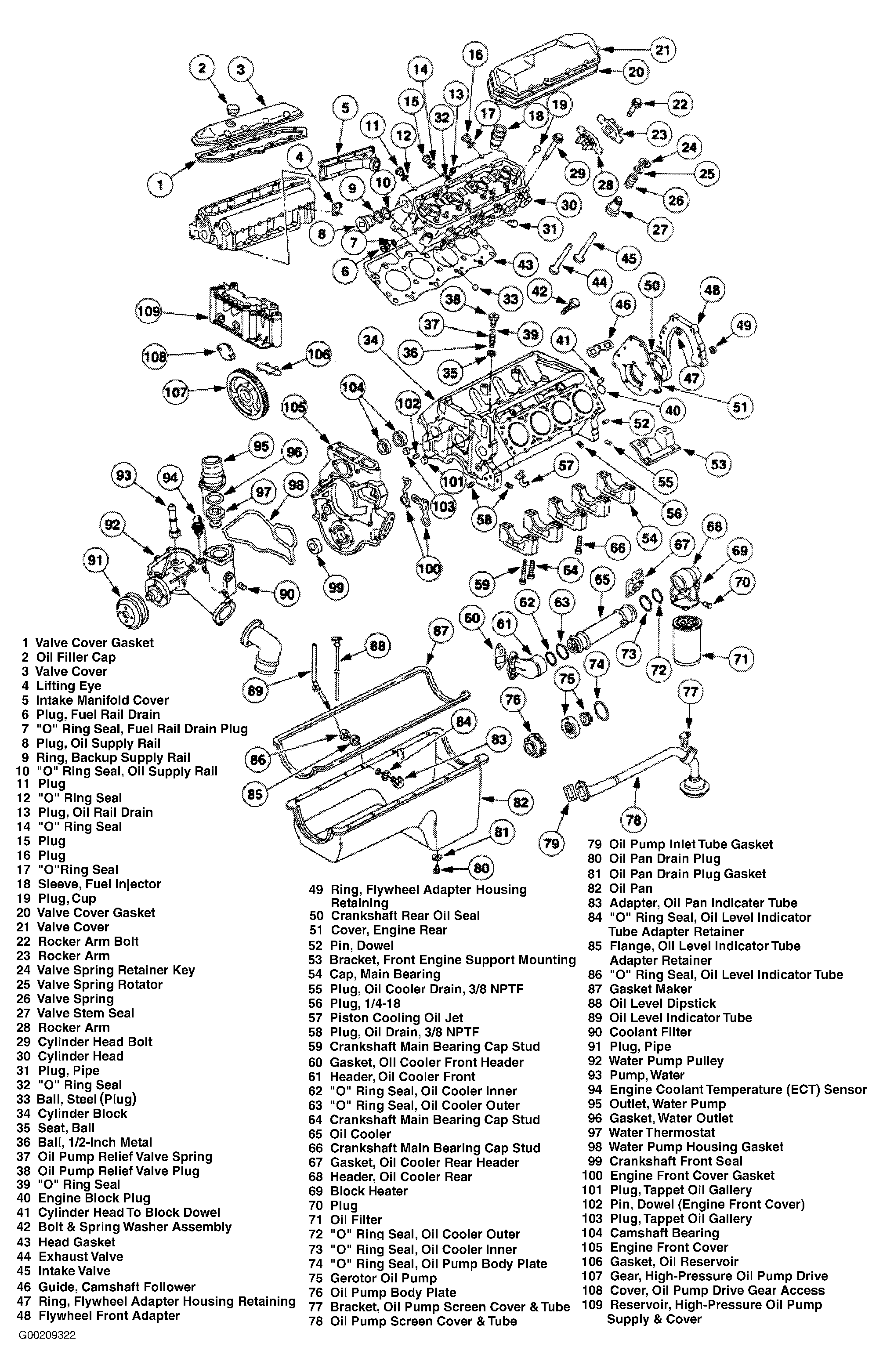

Fig 2: Exploded View Of Engine (2 Of 2)

Courtesy of FORD MOTOR CO.
