Intake Manifold: Removal

Drain the cooling system. For additional information, refer to ENGINE COOLING .
Remove the air cleaner outlet tube.
Disconnect the vacuum hoses at the (1) fuel pressure regulator and the (2) intake manifold.

Fig 1: Disconnecting Vacuum Hoses At Fuel Pressure Regulator And Intake Manifold
Courtesy of FORD MOTOR CO.

Can be purchased as a separate item.

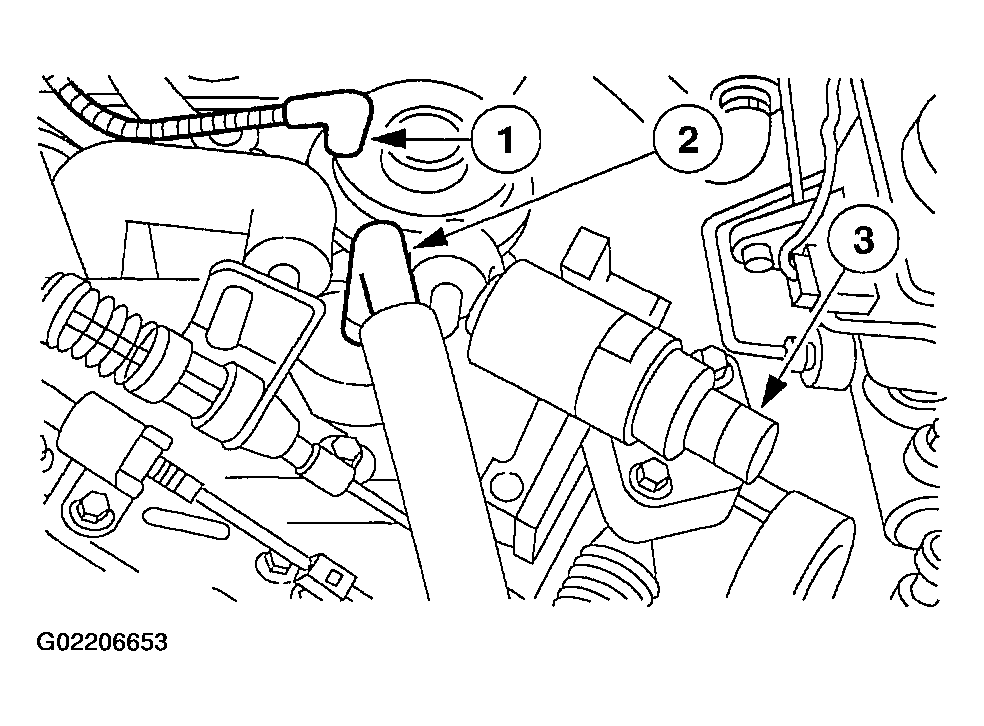

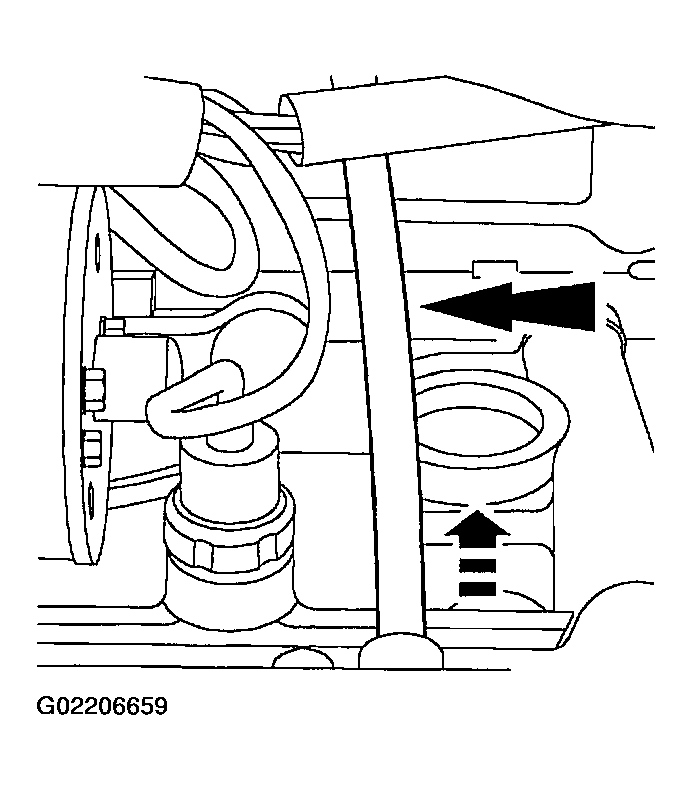

Disconnect the vacuum lines from the (1) exhaust recirculation valve, the (2) positive crankcase ventilation valve, and the (3) idle air control valve.

Fig 2: Disconnecting Vacuum Lines From Exhaust Recirculation Valve
Courtesy of FORD MOTOR CO.

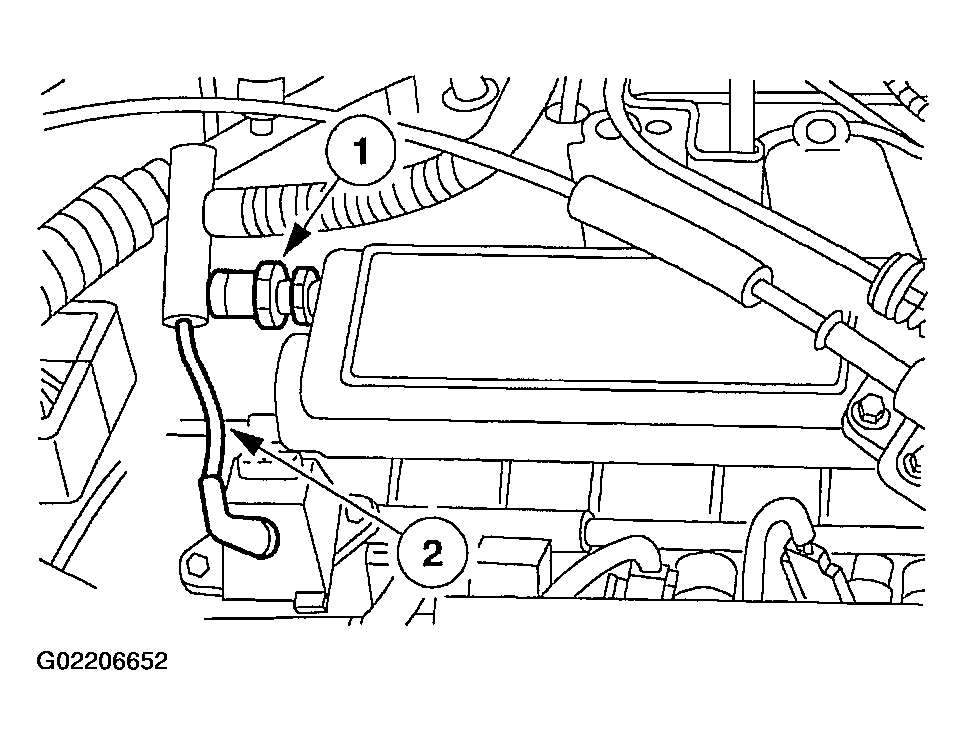

Disconnect the (1) speed control cable (if equipped), the (2) accelerator cable (9A758), and the throttle control lever (9A776).

Fig 3: Disconnecting Speed Control Cable
Courtesy of FORD MOTOR CO.

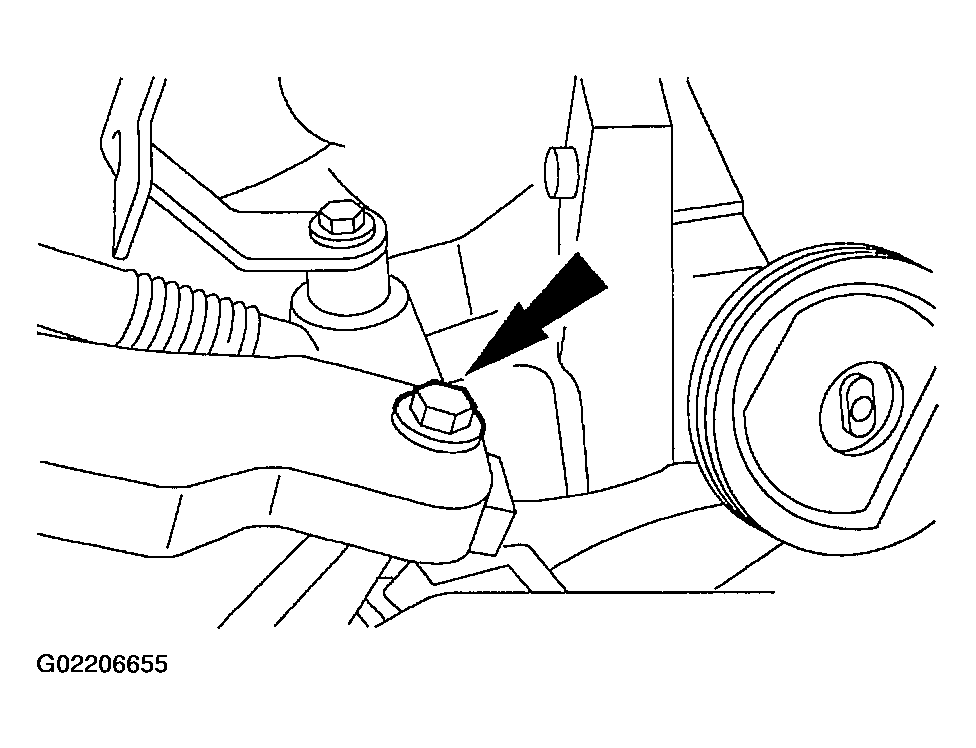

Remove the bolt.

Fig 4: Removing Bolt
Courtesy of FORD MOTOR CO.

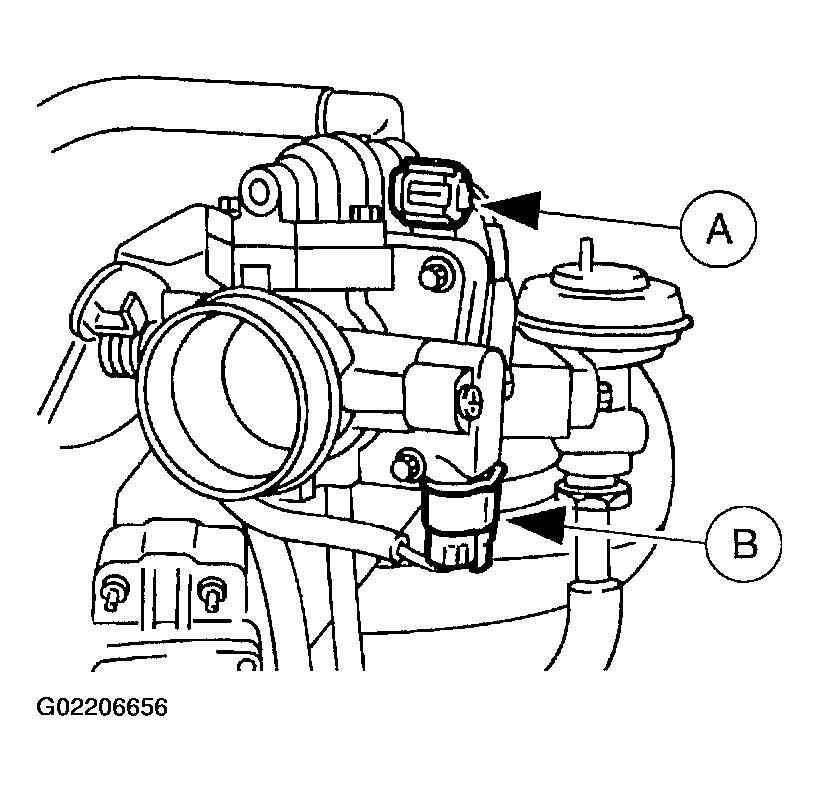

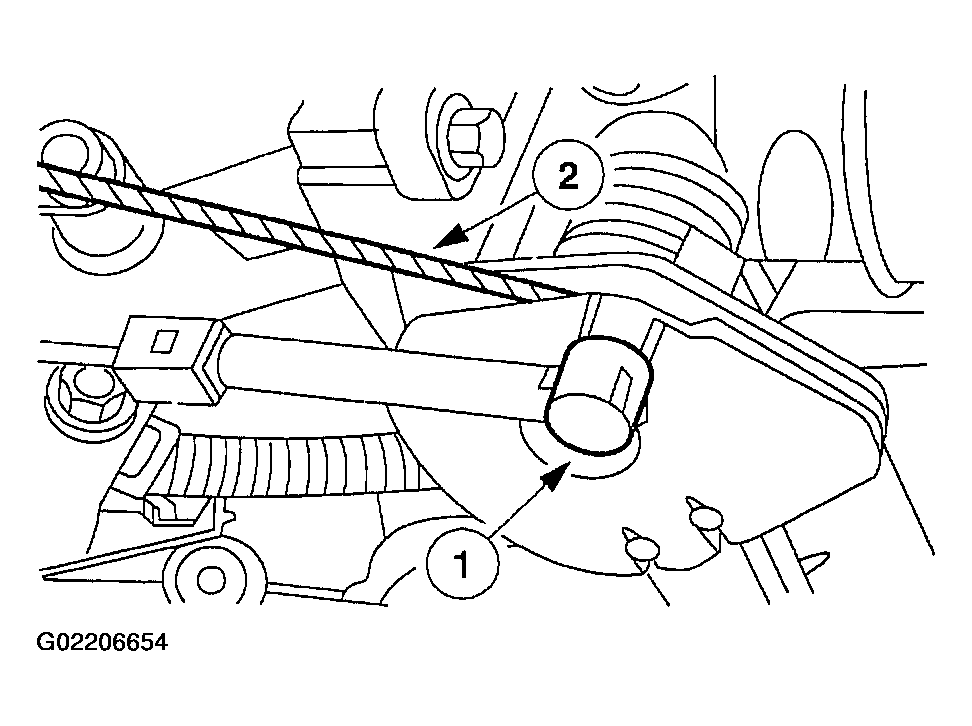

Disconnect the (A) idle air control (IAC) valve and the (B) throttle position (TP) sensor electrical connectors.

Fig 5: Disconnecting Idle Air Control (IAC) Valve And Throttle Position (TP) Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.

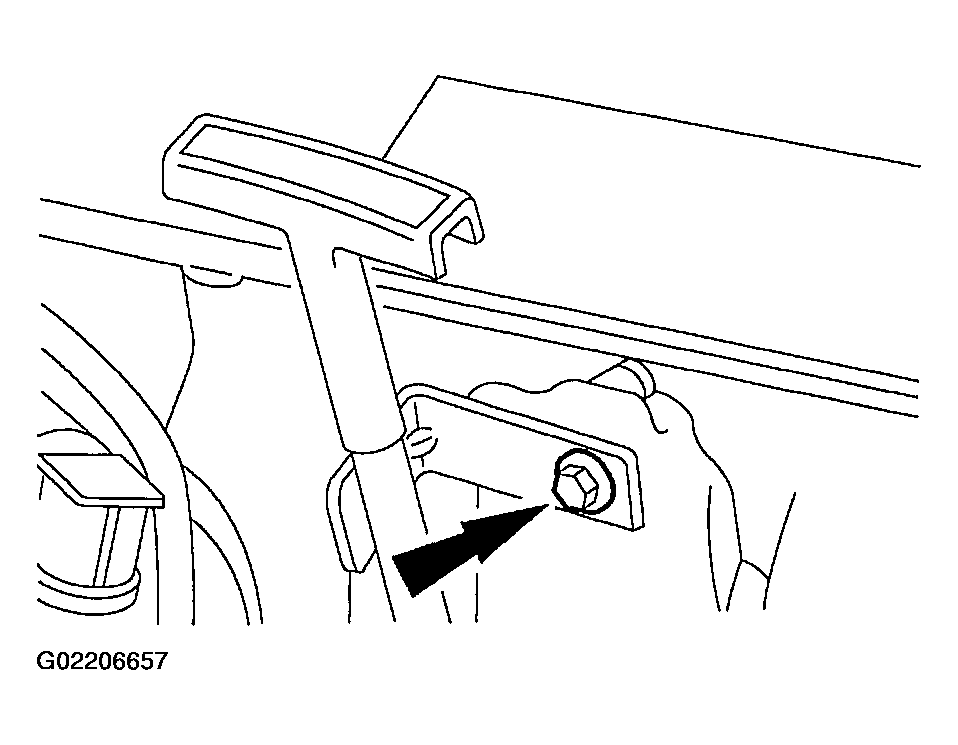

Remove the oil level indicator tube bracket bolt from the intake manifold.

Fig 6: Removing Oil Level Indicator Tube Bracket Bolt From Intake Manifold
Courtesy of FORD MOTOR CO.

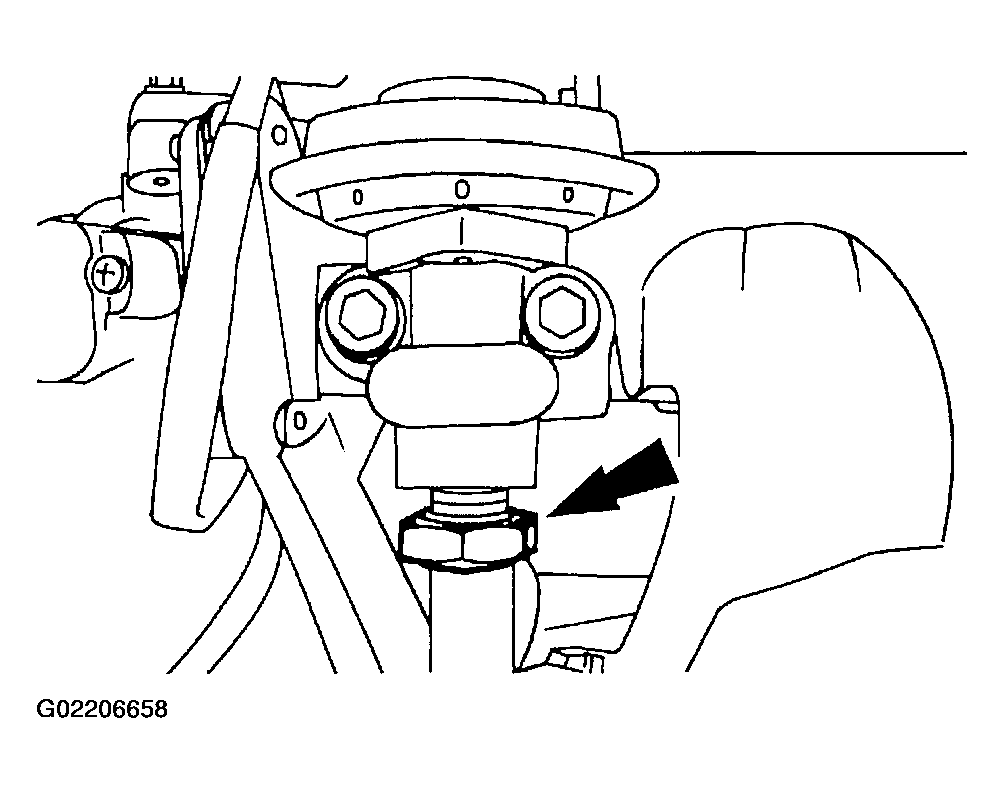

Disconnect the EGR manifold tube located just below the EGR valve.

Fig 7: Disconnecting EGR Manifold Tube Located Just Below EGR Valve
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.
Remove the oil level indicator tube (6754) from the cylinder block (6010).

Fig 8: Removing Oil Level Indicator Tube From Cylinder Block
Courtesy of FORD MOTOR CO.

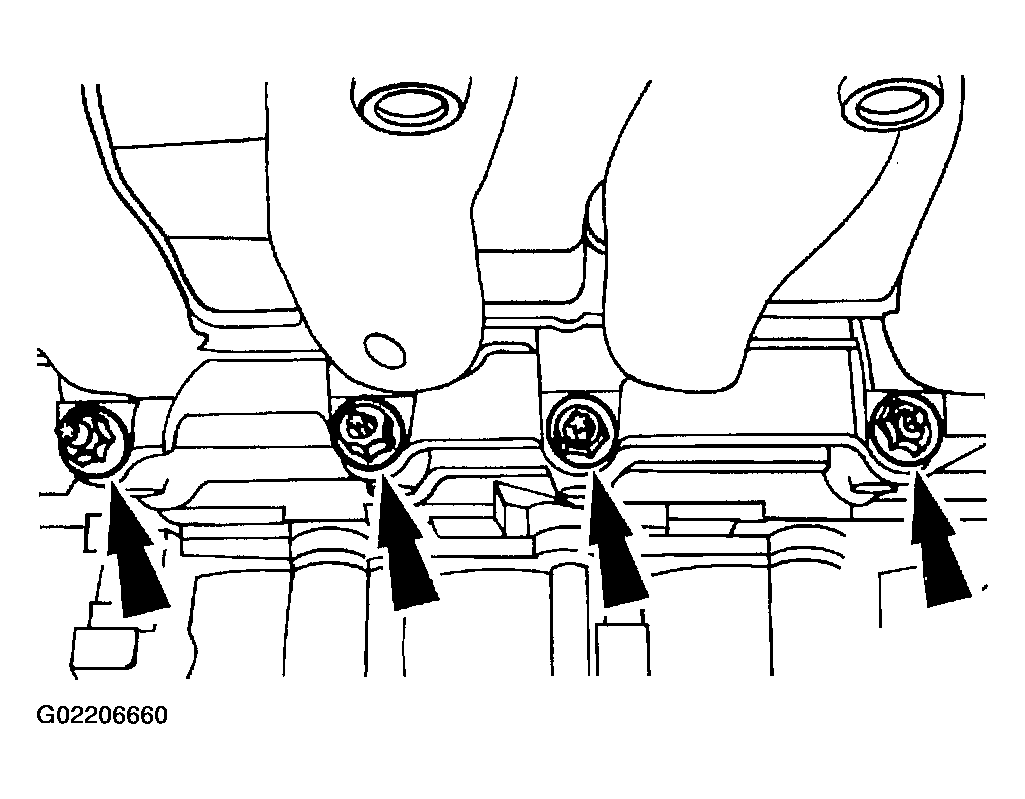

Remove the nuts.

Fig 9: Removing Nuts
Courtesy of FORD MOTOR CO.
Lower the vehicle.

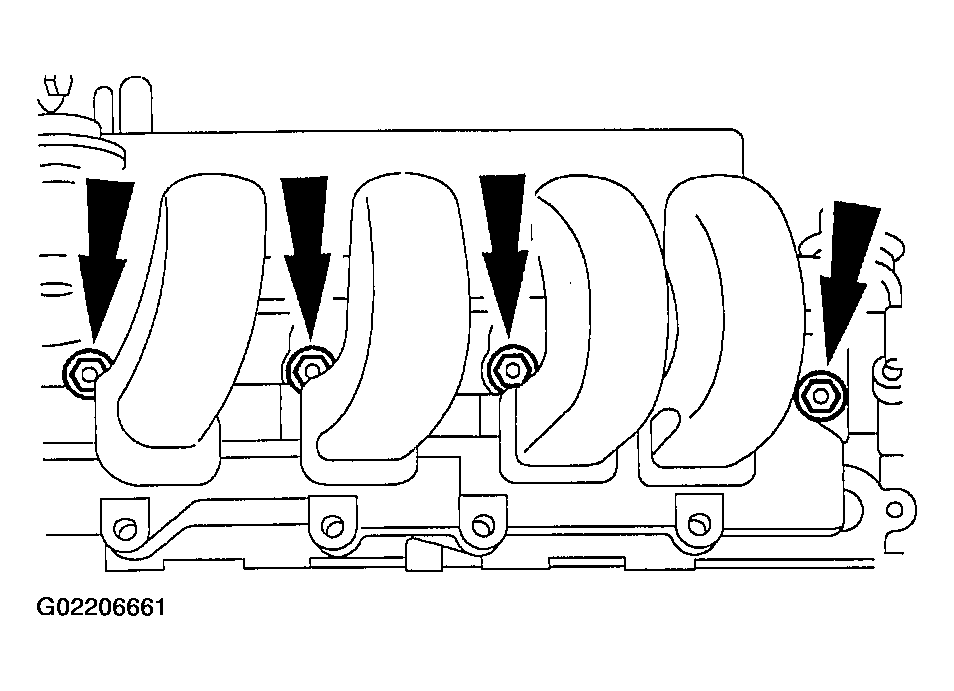

Remove the nuts and remove the intake manifold (9424). Discard the gasket.

Fig 10: Removing Nuts And Removing Intake Manifold
Courtesy of FORD MOTOR CO.
