Description And Operation: Engine

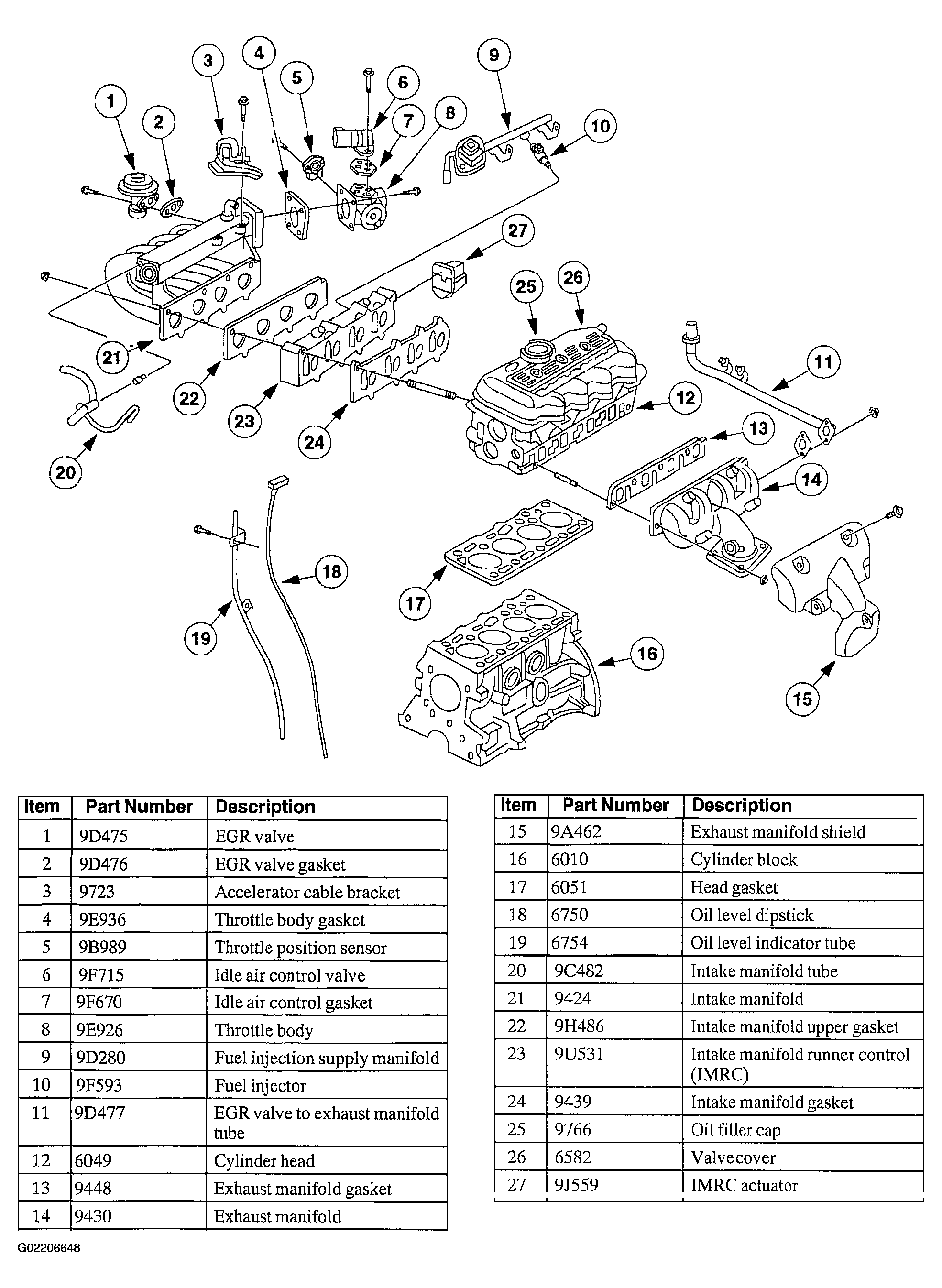

Fig 1: Identifying Upper Engine Components
G02206648Courtesy of FORD MOTOR CO.

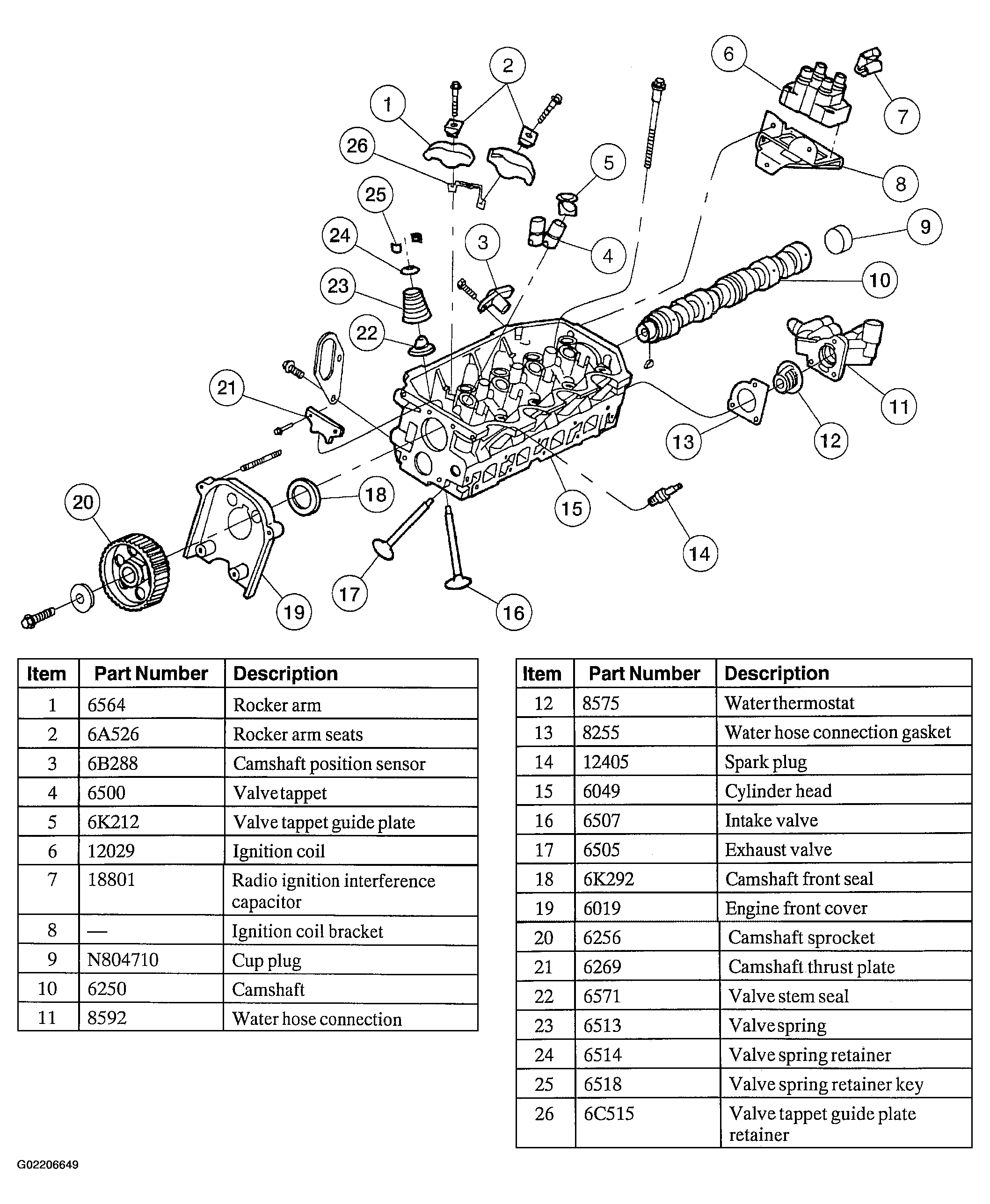

Fig 2: Identifying Cylinder Head Components
G02206649Courtesy of FORD MOTOR CO.

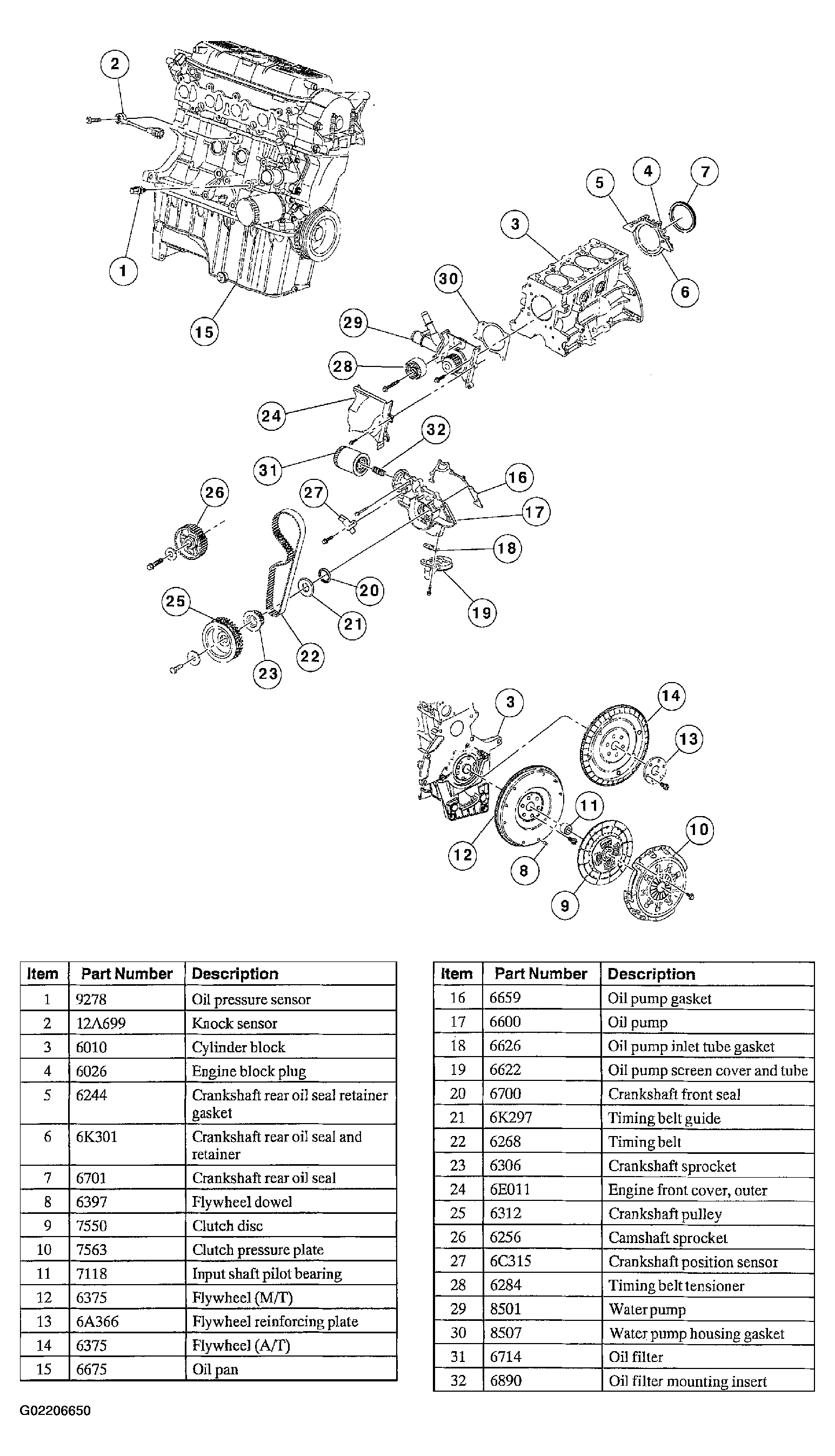

Fig 3: Identifying Lower Engine Components
G02206650Courtesy of FORD MOTOR CO.

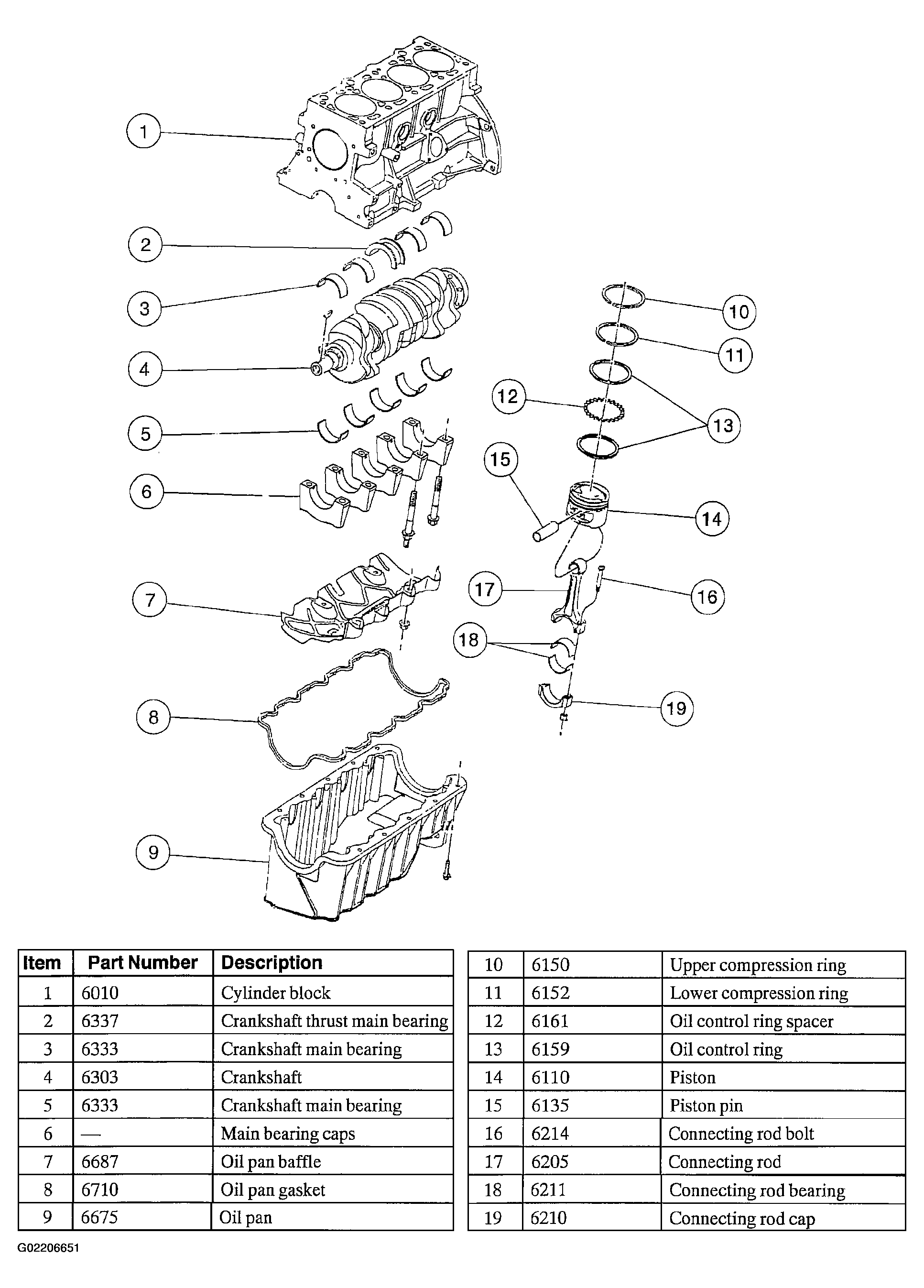

Fig 4: Exploded View Of Lower Engine Components
G02206651Courtesy of FORD MOTOR CO.
