Pinpoint Test F: The Blower Motor Does Not Operate
WARNING: This page is about a different car, the 2004 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

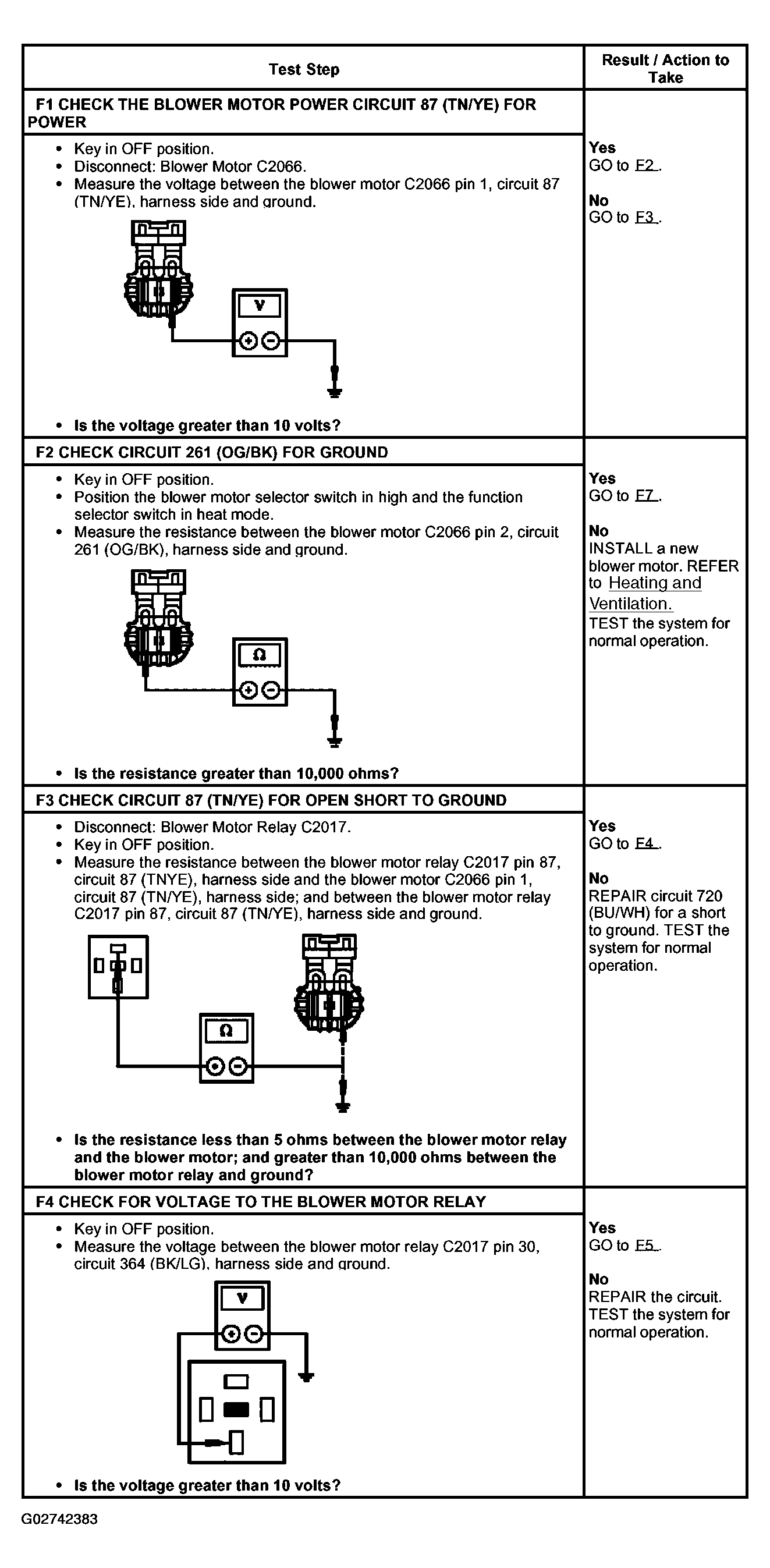

Fig 1: Pinpoint Test F: Blower Motor Does Not Operate (Step F1-F4)
Courtesy of FORD MOTOR CO.

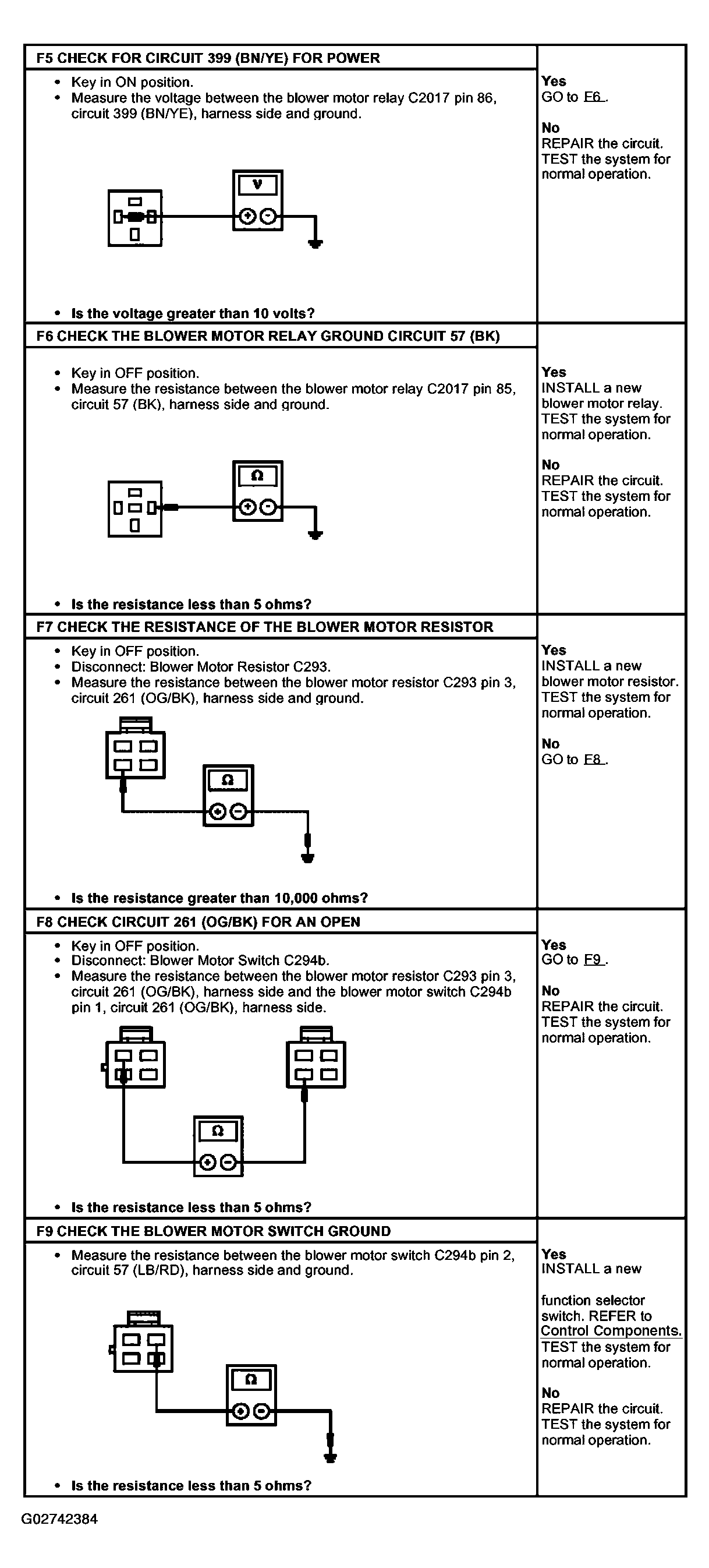

Fig 2: Pinpoint Test F: Blower Motor Does Not Operate (Step F5-F9)
