Spark Plug: Removal

  1. Remove the ignition coil-on-plugs. For additional information, refer to IGNITION COIL-ON-PLUG - LH  or IGNITION COIL-ON-PLUG - RH .
    2. NOTE: LH shown, RH similar.

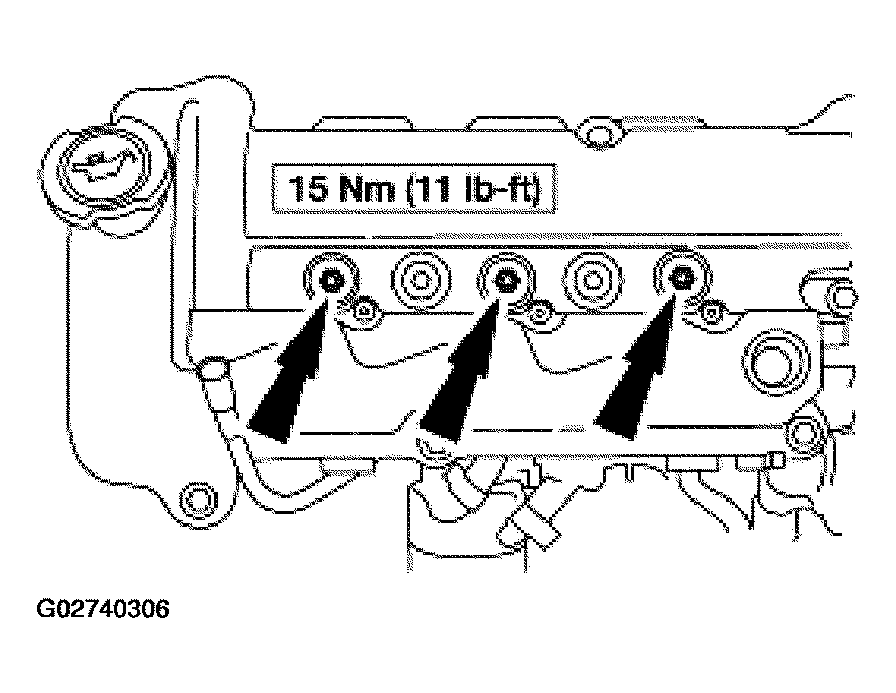

    Fig 1: Removing LH And RH Spark Plugs
    G02740306Courtesy of FORD MOTOR CO.
  2. Remove the LH and RH spark plugs.
  3. Inspect the spark plugs. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
  4. To install, reverse the removal procedure.
