Removal and Installation

  1. Remove the front door trim panel or the rear door trim panel.
  2. Release the locking clips and remove the window control switch.

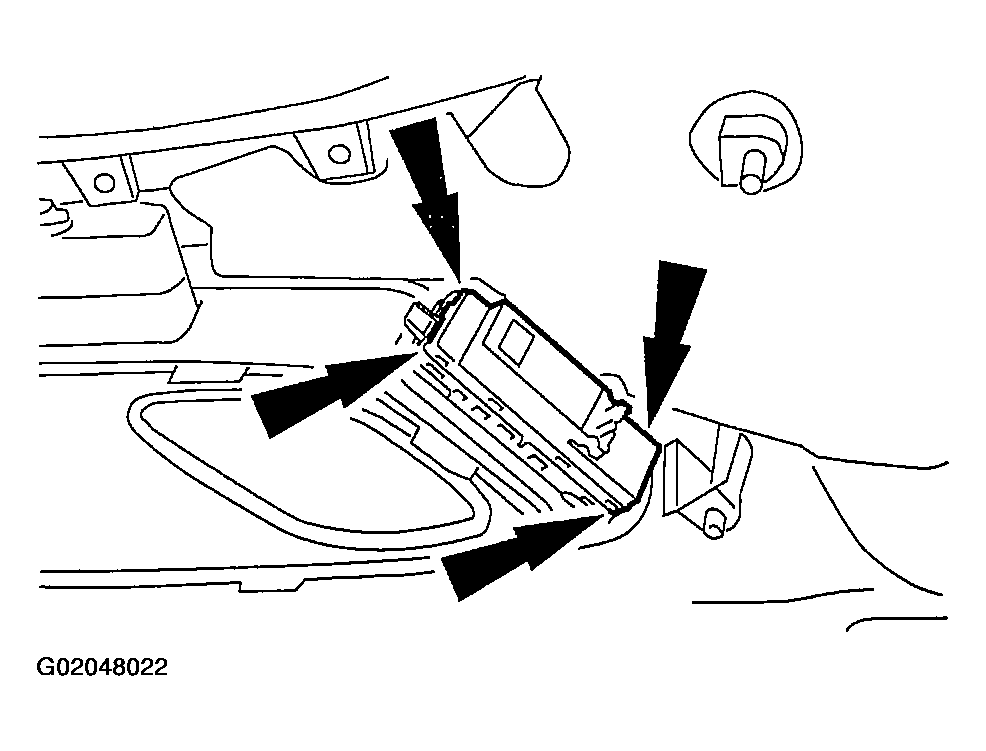

    Fig 1: Releasing Locking Clips & Removing Window Control Switch
    G02048022Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
