Removal and Installation

  1. Open the liftgate glass.
  2. Remove the two liftgate nut access covers (one on each side).

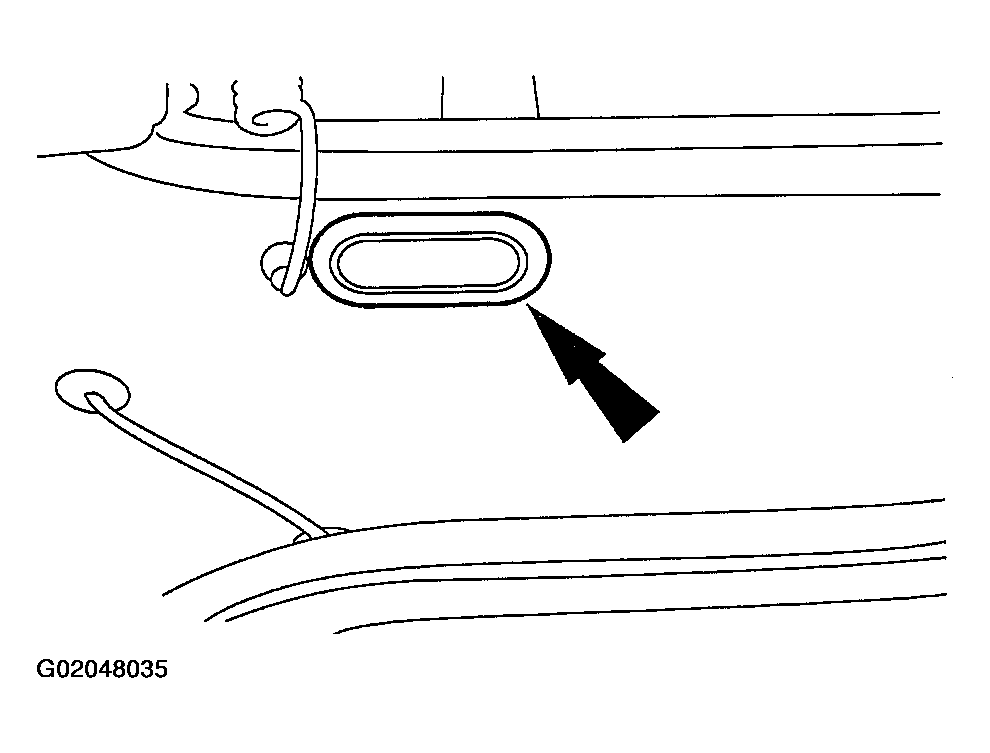

    Fig 1: Removing Liftgate Nut Access Covers
    G02048035Courtesy of FORD MOTOR CO.
  3. Disconnect the rear window glass electrical harness connector.

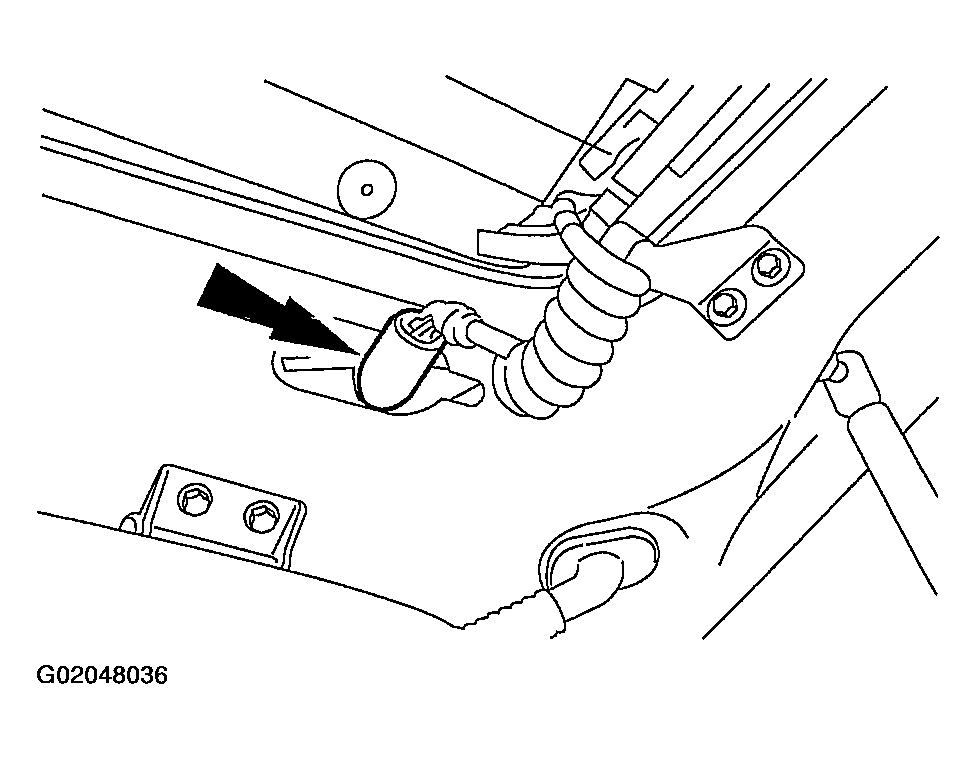

    Fig 2: Disconnecting Rear Window Glass Electrical Harness Connector
    G02048036Courtesy of FORD MOTOR CO.
  4. Disconnect the heated window grid wire electrical connector.

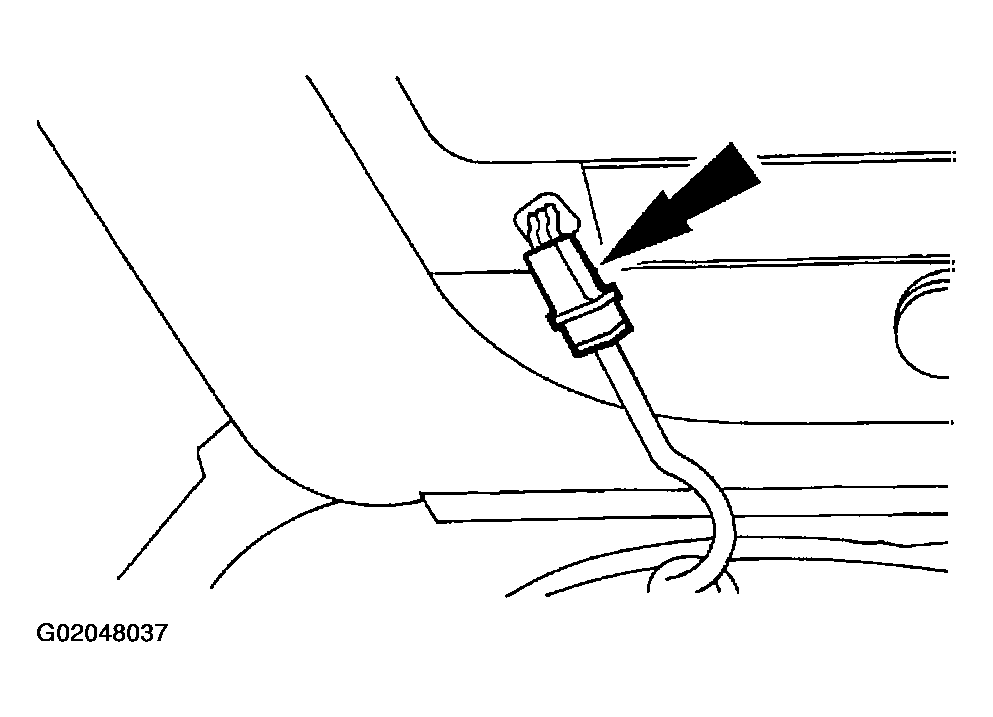

    Fig 3: Disconnecting Heated Window Grid Wire Electrical Connector
    G02048037Courtesy of FORD MOTOR CO.
    5. NOTE: An assistant may be needed to carry out this step.
  5. Disconnect the two liftgate window glass cylinders.
    1. Slide the spring retainer to the end of the socket.
    2. Disconnect the socket from the ball stud.

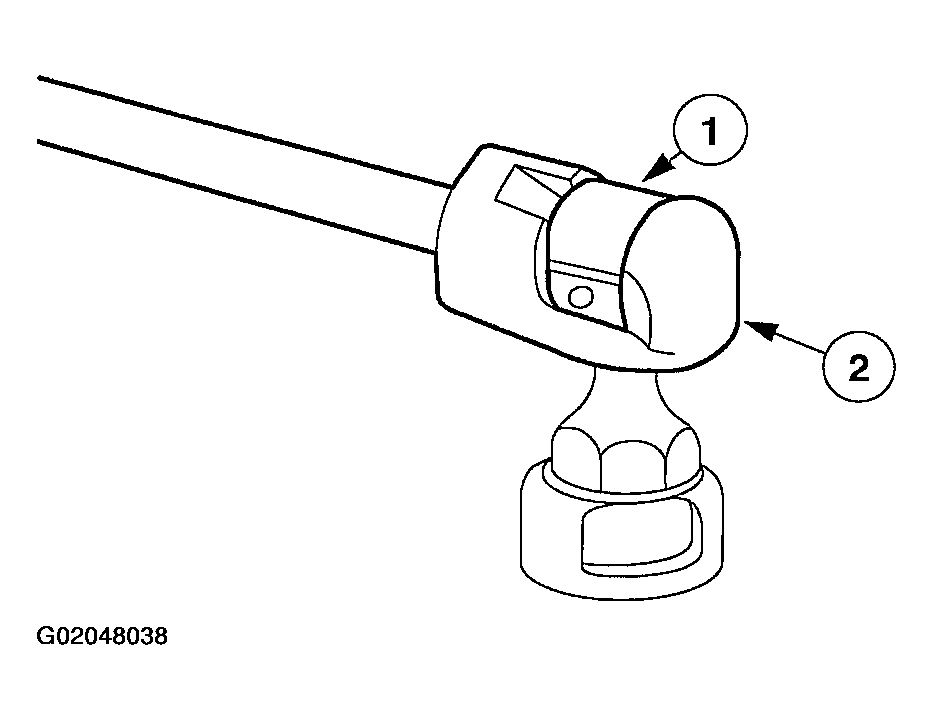

      Fig 4: Disconnecting Two Liftgate Window Glass Cylinders
      G02048038Courtesy of FORD MOTOR CO.
    6. NOTE: An assistant may be needed to carry out this step.

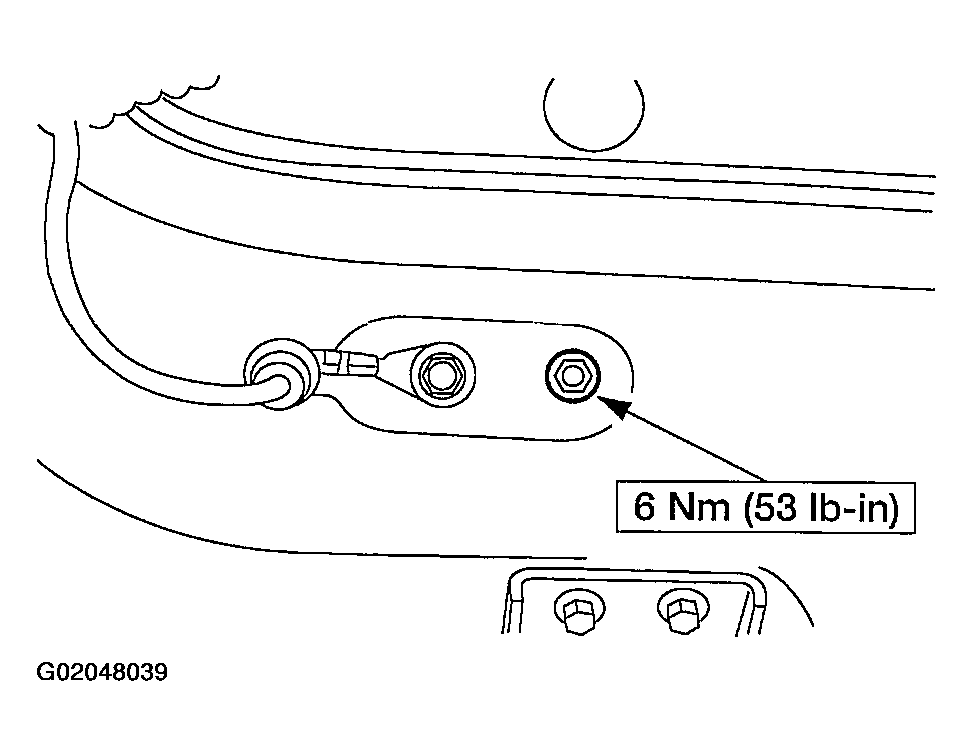

    Fig 5: Removing Two Liftgate Window Glass Hinge Nuts
    G02048039Courtesy of FORD MOTOR CO.
  6. Remove the two liftgate window glass hinge nuts.
  7. To install, reverse the removal procedure.
    • Transfer components as necessary.
