Speed Control Deactivator Switch: Removal

  1. Remove the deactivator switch.
    1. Disconnect the electrical connector.
    2. Rotate counterclockwise 45 degrees and remove the deactivator switch.

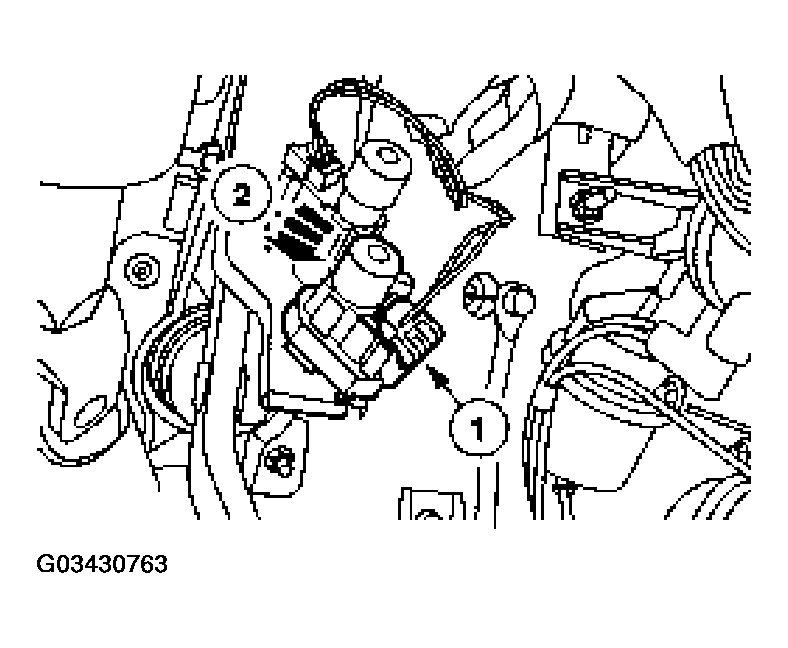

    Fig 1: Removing Deactivator Switch
    G03430763Courtesy of FORD MOTOR CO.
