Pinpoint Test E: The Speed Control Switch Is Inoperative

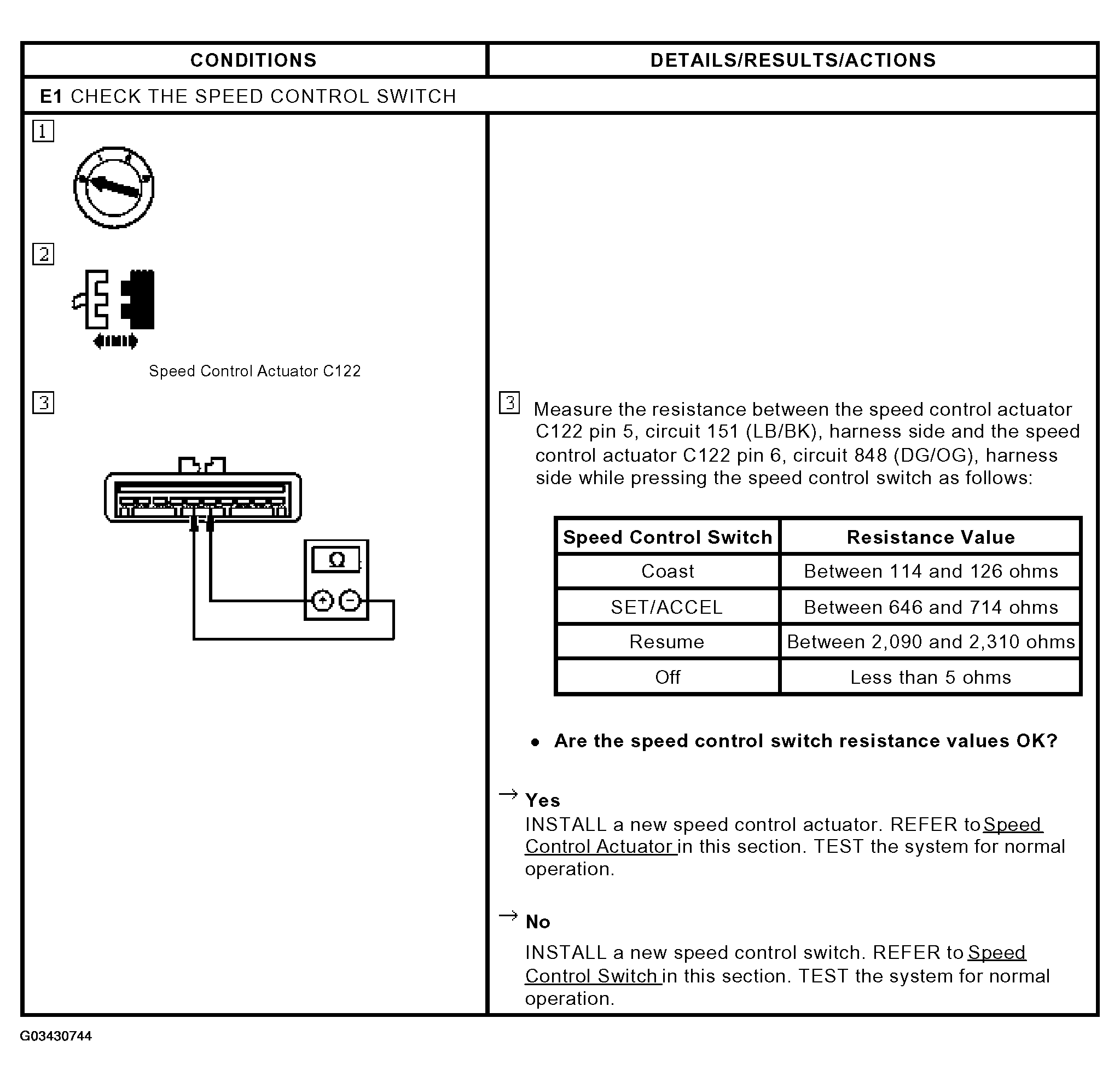

Fig 1: Pinpoint Test E: Speed Control Switch Is Inoperative (Step E1)

G03430744

Courtesy of FORD MOTOR CO.
