Removal and Installation

ALL VEHICLES

1. Make sure the front wheels are in the straight-ahead position.
2. Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
3. Pull to release the retaining clips and remove the steering column opening lower finish panel.
   Fig 1: Removing Steering Column Opening Lower Finish Panel

   Courtesy of FORD MOTOR CO.

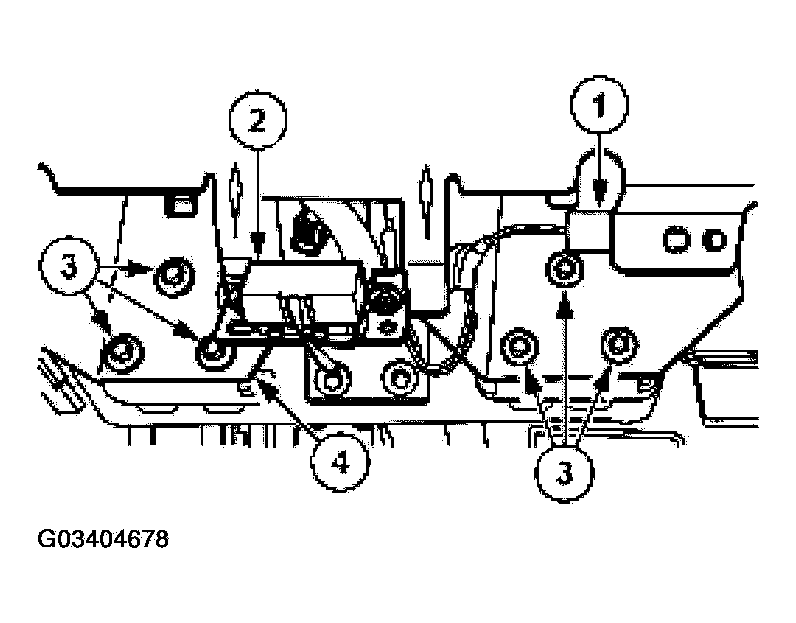

4. Remove the steering column opening lower finish panel reinforcement.
   1. Release the pin-type retainers and remove the electrical connector.
   2. Remove the screw and data link connector.
   3. Remove the bolts.
   4. Remove the steering column opening lower finish panel reinforcement.
      Fig 2: Removing Steering Column Opening Lower Finish Panel Reinforcement

      Courtesy of FORD MOTOR CO.

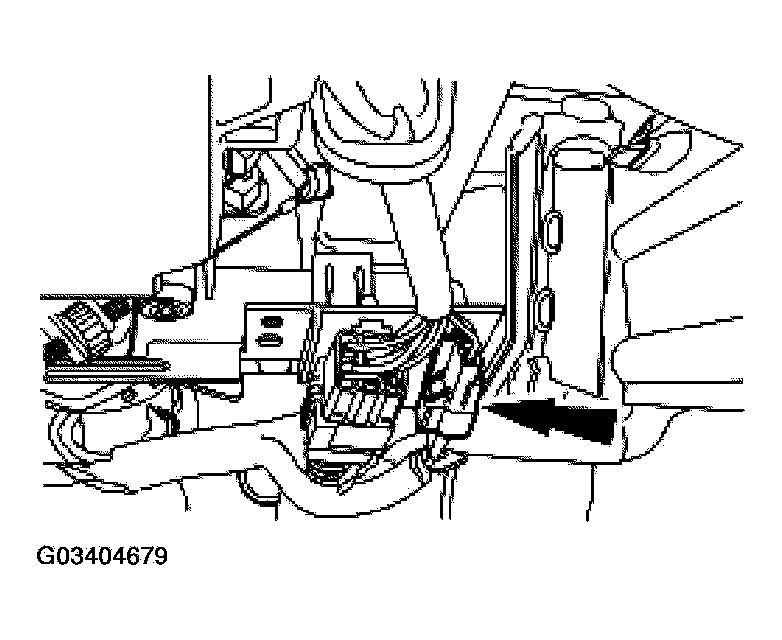

5. Disconnect the clockspring electrical connectors at the base of the steering column.
   Fig 3: Disconnecting Clockspring Electrical Connectors

   Courtesy of FORD MOTOR CO.
6. Remove the ignition switch lock cylinder.
   1. Insert the ignition key into the ignition switch lock cylinder and turn to the RUN position.
   2. Insert a punch through the hole in the lower steering column shroud and push the ignition switch lock cylinder release tab while pulling out the ignition switch lock cylinder.
      Fig 4: Removing Ignition Switch Lock Cylinder

      Courtesy of FORD MOTOR CO.
NOTE: The steering wheel is remove for clarity.
Fig 5: Removing Tilt Wheel Handle And Shank
Courtesy of FORD MOTOR CO.

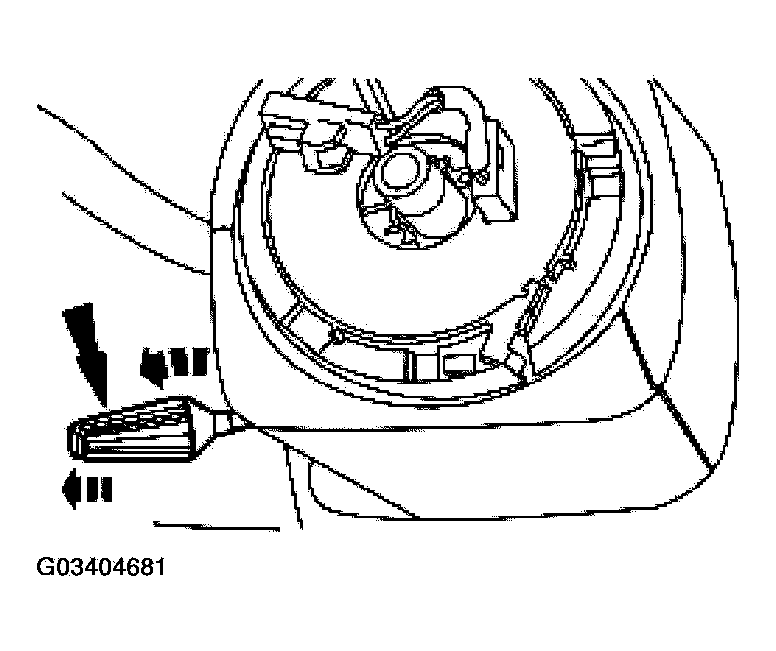

7. If equipped, twist the tilt wheel handle and shank and remove.

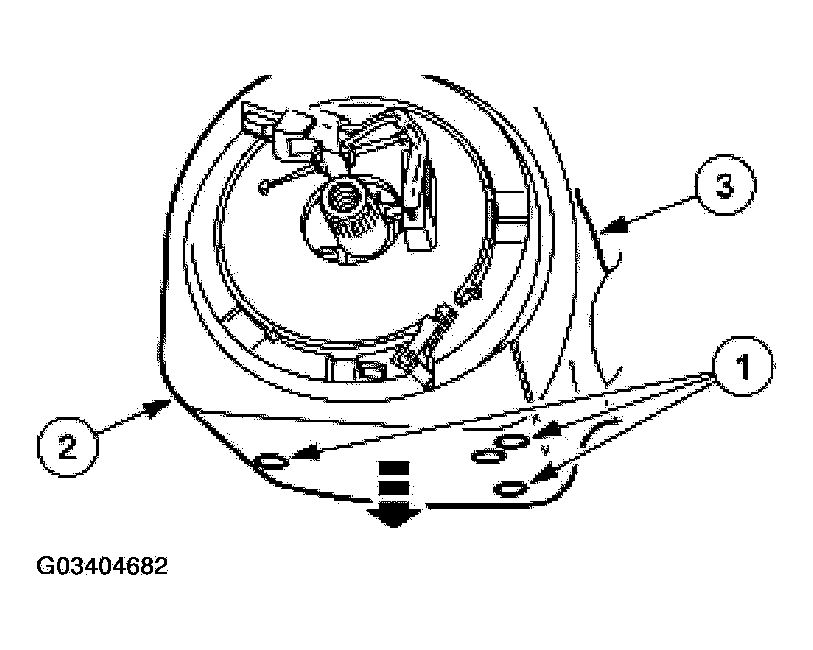

8. Remove the upper and lower steering column shrouds.
   1. Remove the screws.
   2. Remove the lower steering column shroud.
   3. Remove the upper steering column shroud.
      Fig 6: Removing Upper Steering Column Shroud

      Courtesy of FORD MOTOR CO.
9. Disconnect the multifunction switch electrical connectors.
   Fig 7: Disconnecting Multifunction Switch Electrical Connectors

   Courtesy of FORD MOTOR CO.
10. Reinstall the ignition lock cylinder and remove the key.

    COMMERCIAL CHASSIS

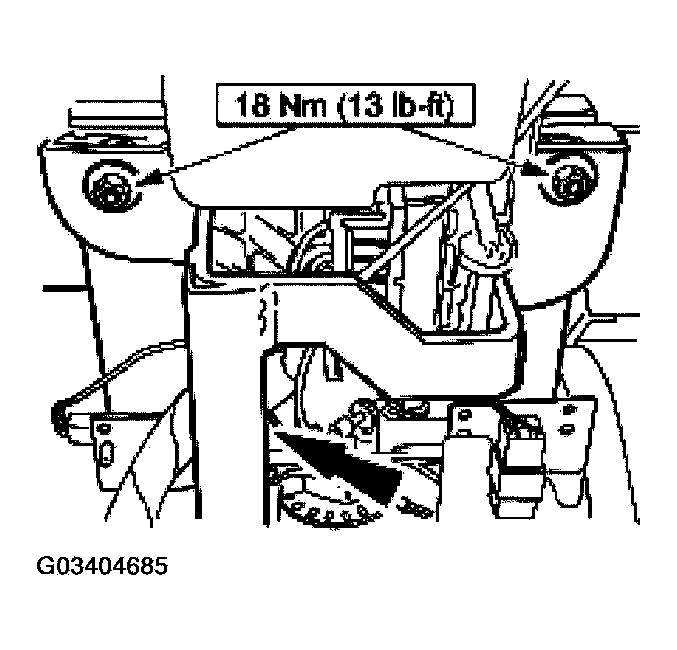

11. Remove the nuts.
    Fig 8: Removing Nuts

    Courtesy of FORD MOTOR CO.

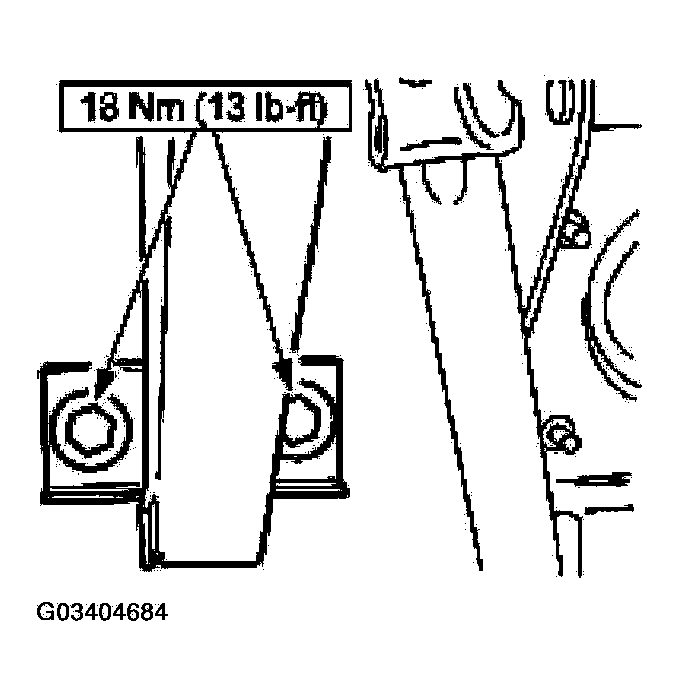

12. Remove the nuts and the steering column support.
    Fig 9: Removing Nuts And Steering Column Support

    Courtesy of FORD MOTOR CO.

    ALL VEHICLES

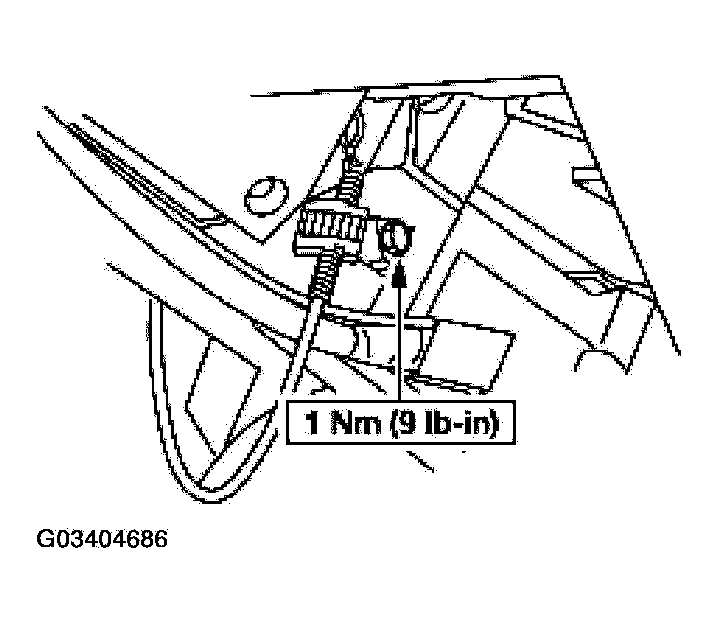

13. Remove the screw and detach the transmission range indicator from the column.
    Fig 10: Detaching Transmission Range Indicator From Column

    Courtesy of FORD MOTOR CO.

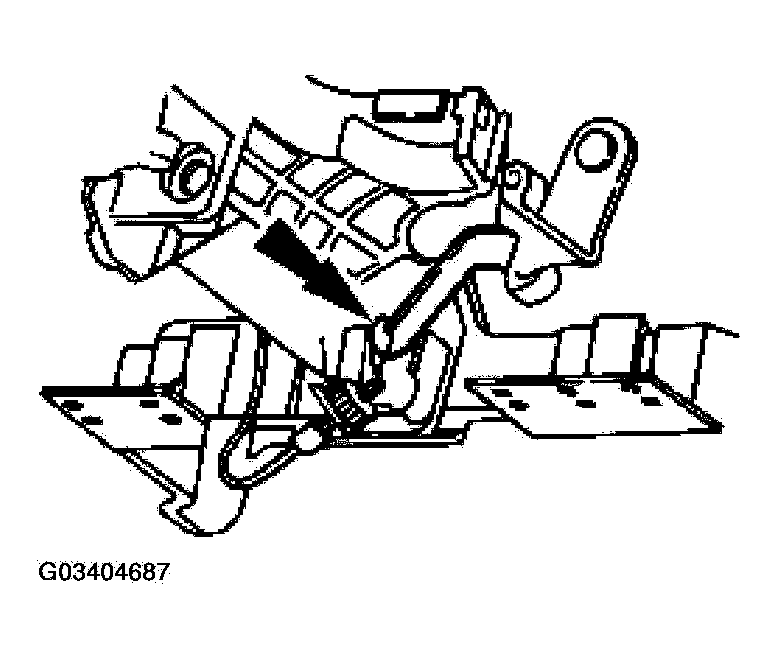

14. Disconnect the transmission shift cable loop from the shift tube hook.
    Fig 11: Disconnecting Transmission Shift Cable Loop From Shift Tube Hook

    Courtesy of FORD MOTOR CO.

    COMMERCIAL CHASSIS

CAUTION: Do not allow the steering wheel to rotate while the intermediate shaft is disconnected from the steering column or damage to the clockspring can occur. If there is evidence that the steering wheel has rotated, the clockspring must be removed and recentered. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Fig 12: Detaching Intermediate Shaft From Steering Column
Courtesy of FORD MOTOR CO.
15. Remove the pinch bolt and detach the intermediate shaft from the steering column.

    ALL EXCEPT COMMERCIAL CHASSIS

CAUTION: Do not allow the steering wheel to rotate while the intermediate shaft is disconnected from the steering column or damage to the clockspring can occur. If there is evidence that the steering wheel has rotated, the clockspring must be removed and recentered. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Fig 13: Removing Pinch Bolt
Courtesy of FORD MOTOR CO.
16. Remove the pinch bolt and detach the intermediate shaft from the steering column.

    ALL VEHICLES

17. Disconnect the shift cable from the selector lever pivot arm.
18. Remove the shift cable from the steering column lower mounting bracket by pushing the tab on the cable in and sliding the cable off the bracket.
19. Disconnect the ignition switch.
20. Lower the steering column bend bracket and disconnect the plastic electrical connectors.

    COMMERCIAL CHASSIS

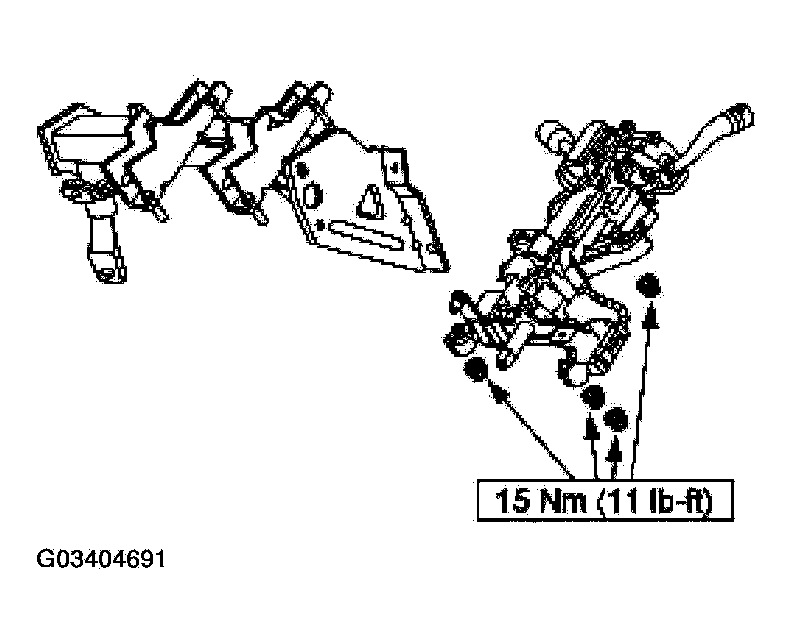

21. While supporting the steering column, remove the retaining nuts and remove the steering column.
    Fig 14: Removing Steering Column

    Courtesy of FORD MOTOR CO.

    ALL EXCEPT COMMERCIAL CHASSIS

22. While supporting the steering column, remove the retaining nuts and remove the steering column.
    Fig 15: Removing Steering Column

    Courtesy of FORD MOTOR CO.
23. To install, reverse the removal procedure.
