Module - Anti-Lock Brake Control: Installation

  1. To install, reverse the removal procedure.

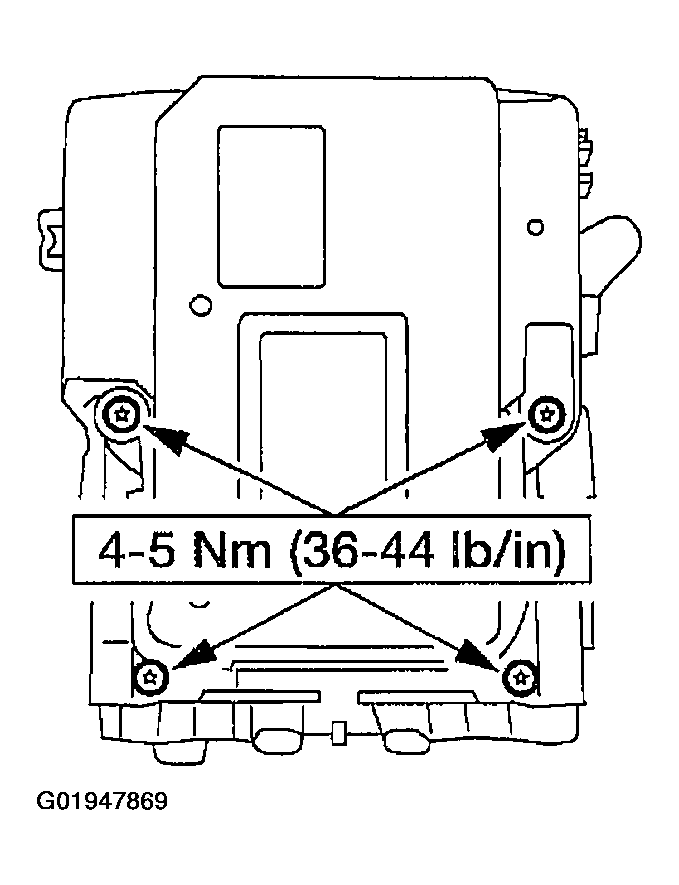

    Fig 1: Installing Anti-Lock Brake Control Module
    G01947869Courtesy of FORD MOTOR CO.

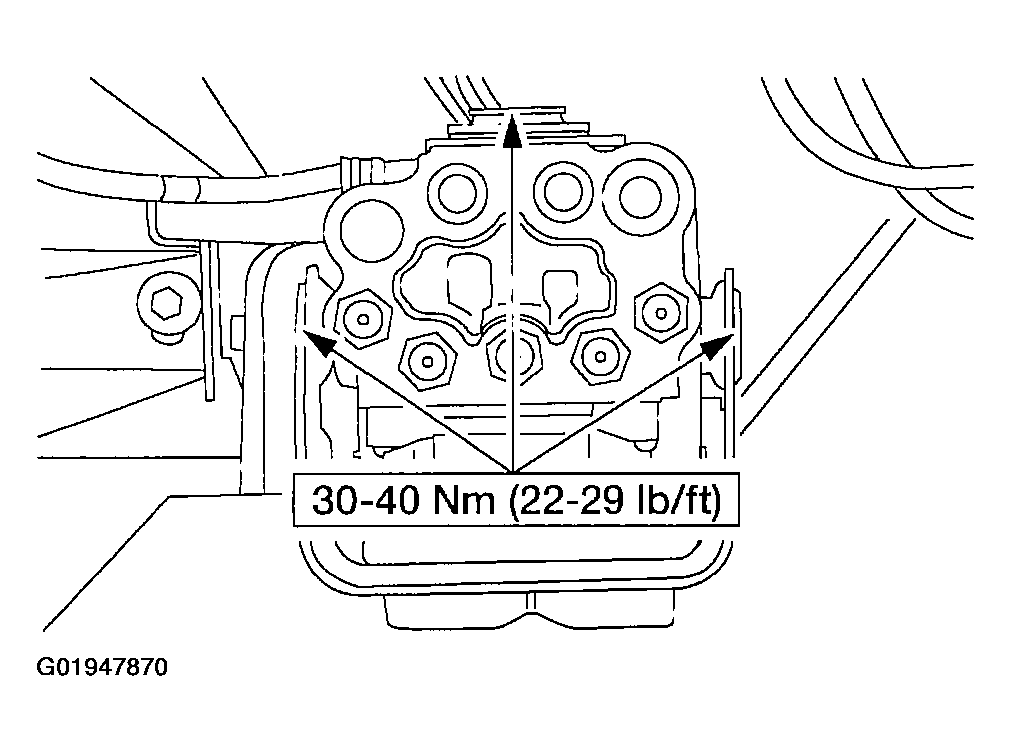

    Fig 2: Installing HCU Bracket
    G01947870Courtesy of FORD MOTOR CO.
