Module - Air Suspension Control: Removal

WARNING: Before performing maintenance on any air suspension components, disconnect the power to the system by turning off the air suspension switch located on the LH side of the luggage compartment to prevent vehicle damage or personal injury.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
  1. Turn the air suspension switch off.
  2. Disconnect the battery ground cable (14301).
  3. Pull out the lower instrument panel insulator.
    1. Remove the pushpins.
    2. Pull out the lower instrument panel insulator.

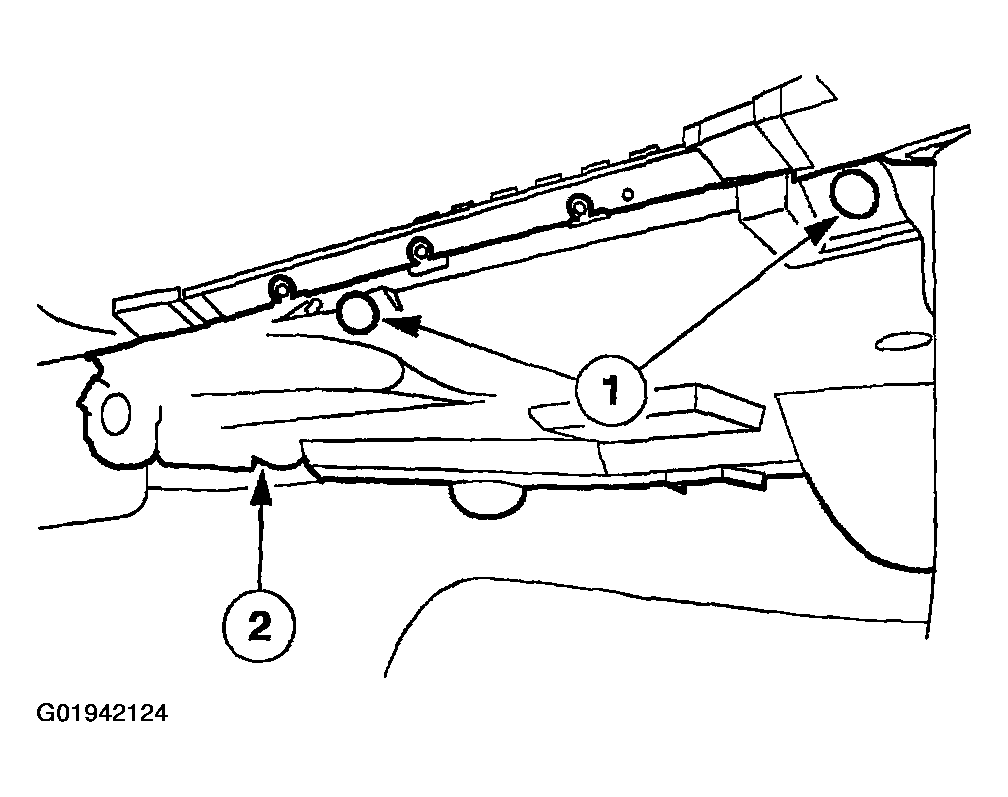

    Fig 1: Identifying Lower Instrument Panel Insulator Pushpins & Lower Instrument Panel Insulator
    G01942124Courtesy of FORD MOTOR CO.
  4. Remove the lower instrument panel insulator.
    1. Disconnect the power point.
    2. Disconnect the courtesy lamp.
    3. Remove the lower instrument panel insulator.

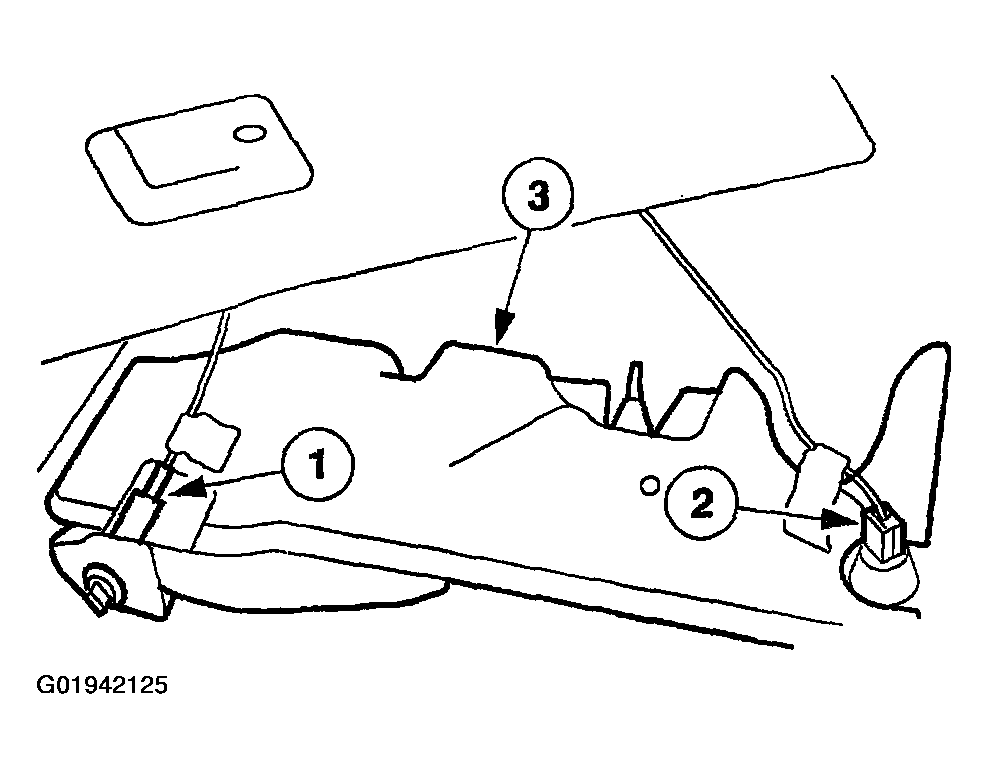

    Fig 2: Identifying Power Point, Courtesy Lamp & Lower Instrument Panel Insulator
    G01942125Courtesy of FORD MOTOR CO.
  5. Remove the rear air suspension control module.
    1. Remove the screws.
    2. Disconnect the electrical connectors.
    3. Remove the rear air suspension control module.

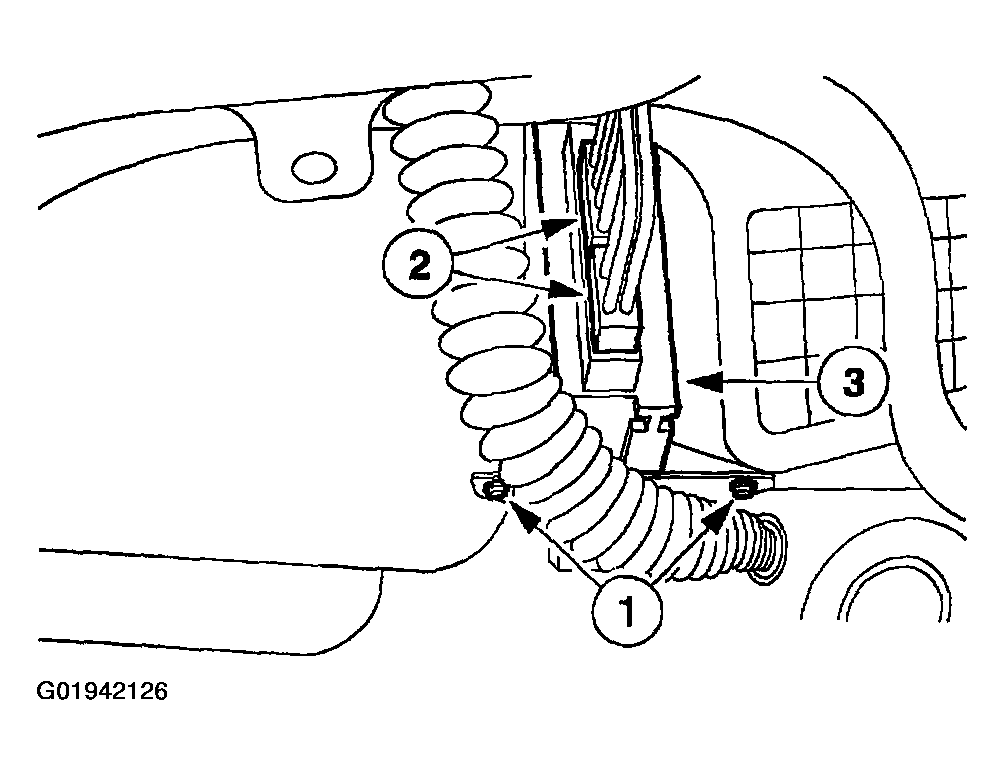

    Fig 3: Identifying Rear Air Suspension Control Module Screws, Electrical Connectors & Rear Air Suspension Control Module
    G01942126Courtesy of FORD MOTOR CO.
