Overdrive Servo: Installation

  1. Install the overdrive servo piston assembly.
    1. Install the overdrive servo piston return spring.
    2. Install the overdrive servo piston assembly.

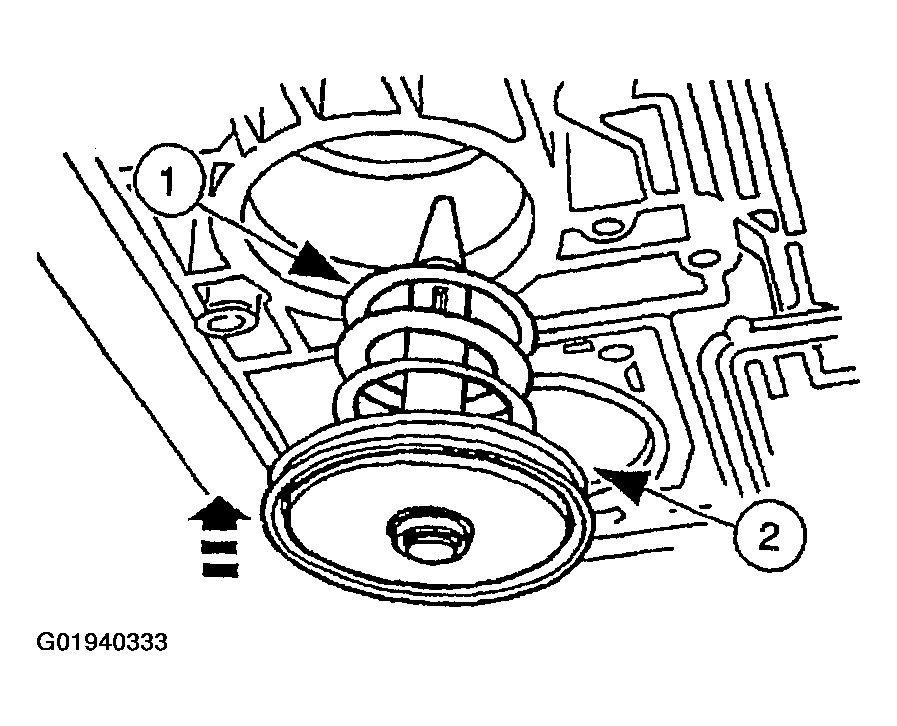

    Fig 1: Identifying Overdrive Servo Piston Return Spring & Overdrive Servo Piston Assembly
    G01940333Courtesy of FORD MOTOR CO.
  2. Use the special tool to install the overdrive servo piston retaining ring.

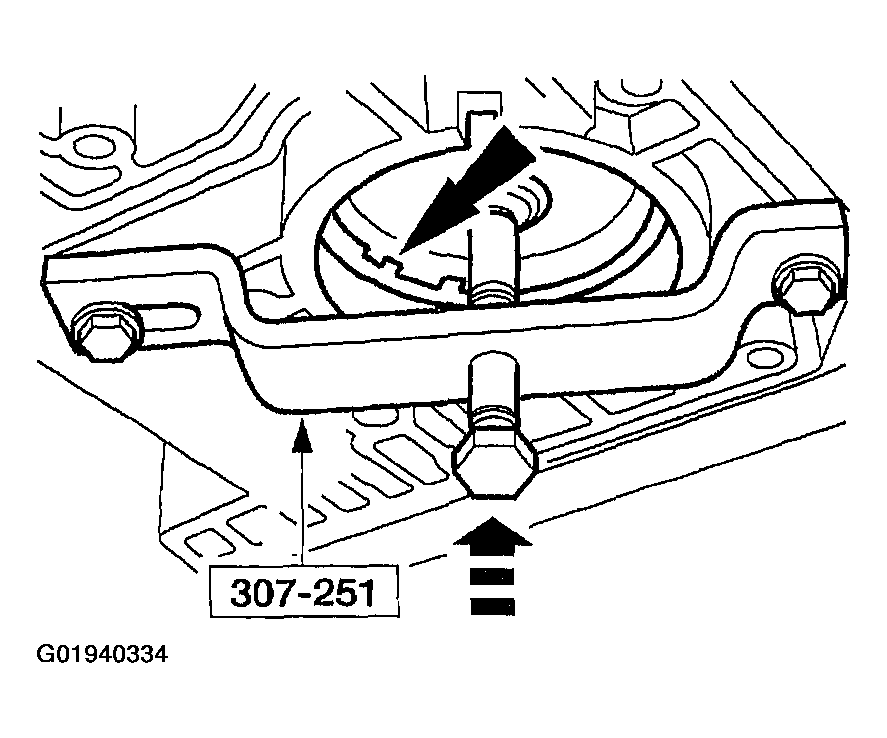

    Fig 2: Identifying Servo Piston Remover/Installer & Overdrive Servo Retaining Ring
    G01940334Courtesy of FORD MOTOR CO.
  3. Install the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
