Transmission Insulator & Retainer: Removal

  1. Remove transmission support crossmember. For additional information, refer to TRANSMISSION SUPPORT CROSSMEMBER .
  2. Remove the nuts from the transmission support insulator and remove the transmission support insulator.

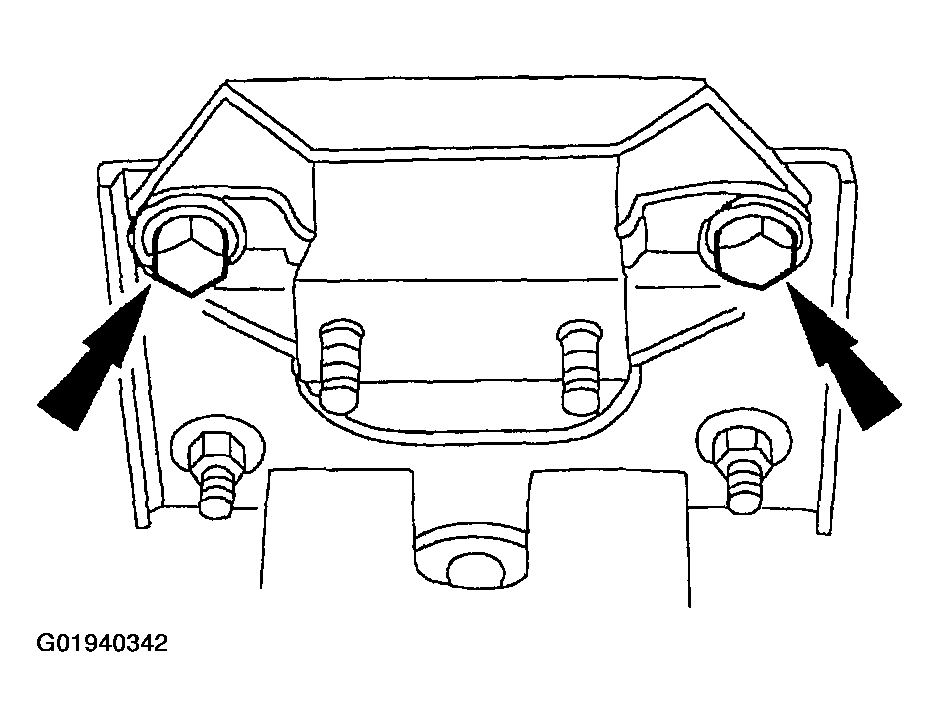

    Fig 1: Identifying Transmission Support Insulator Nuts
    G01940342Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

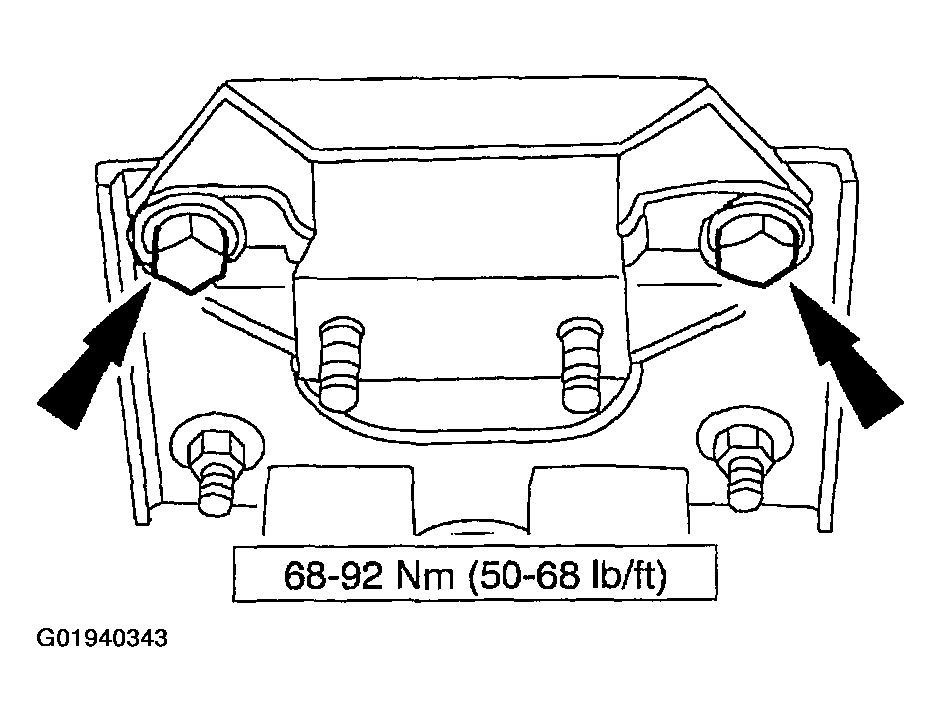

    Fig 2: Tightening Transmission Support Insulator Nuts
    G01940343Courtesy of FORD MOTOR CO.
