Transmission Filler Tube: Removal

  1. Remove the bolt.

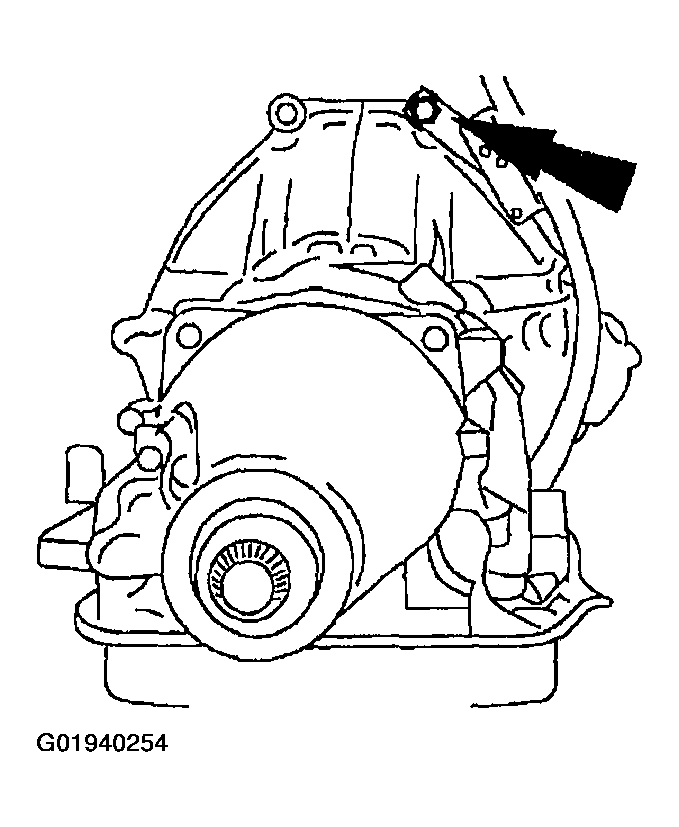

    Fig 1: Identifying Transmission Filler Tube/Bell Housing Bolt
    G01940254Courtesy of FORD MOTOR CO.
  2. Remove the fluid filler tube.

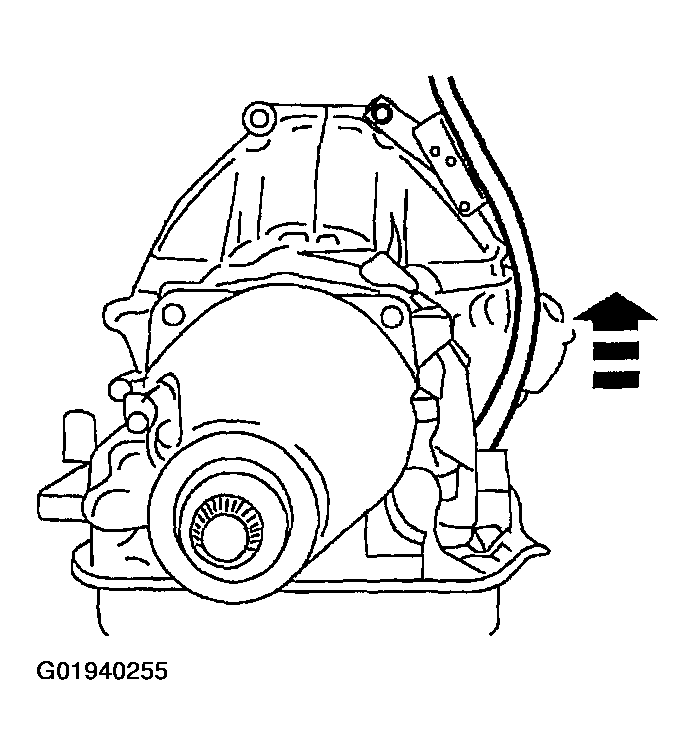

    Fig 2: Removing Fluid Filler Tube
    G01940255Courtesy of FORD MOTOR CO.
