Electronic Pressure Control (EPC) Solenoid: Removal

  1. Remove the manual control lever. For additional information, refer to MANUAL CONTROL LEVER SHAFT & SEAL .
    2. CAUTION: Do not pull on the molded lead frame. This may cause damage to the connector ends. Carefully pry up on the locking tabs to disconnect the solenoids. Disconnect the molded lead frame from the solenoids.

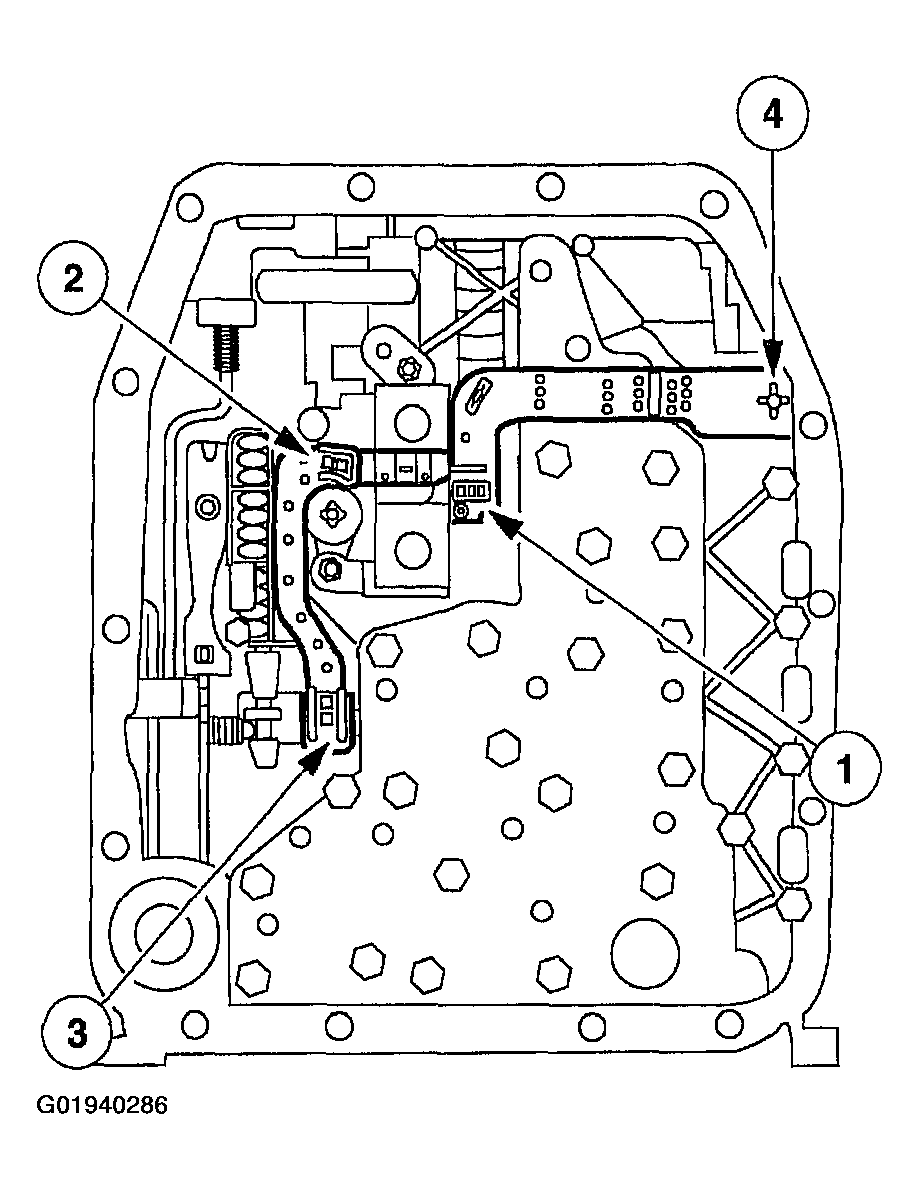

    Fig 1: Identifying Shift Solenoid SSA, SSB, Torque Converter Clutch (TCC), Electronic Pressure Control (EPC) Solenoid & Bulkhead Inter-Connector
    G01940286Courtesy of FORD MOTOR CO.
  2. Disconnect the molded lead frame from the solenoids.
    1. Disconnect the shift solenoid SSA and SSB.
    2. Disconnect the torque converter clutch (TCC).
    3. Disconnect the electronic pressure control (EPC) solenoid.
    4. Disconnect the bulkhead inter-connector.
  3. Remove the EPC solenoid.
    1. Remove the bolt and EPC solenoid bracket.
    2. Remove the EPC solenoid.

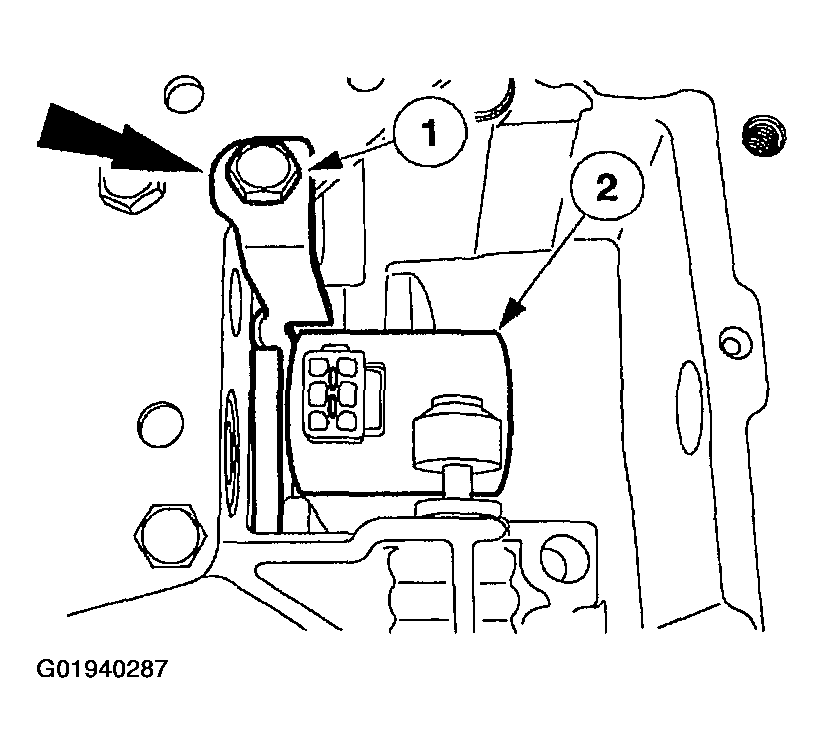

    Fig 2: Identifying EPC Solenoid Bracket & Bolt
    G01940287Courtesy of FORD MOTOR CO.
