Reverse Sun Gear: Disassembly

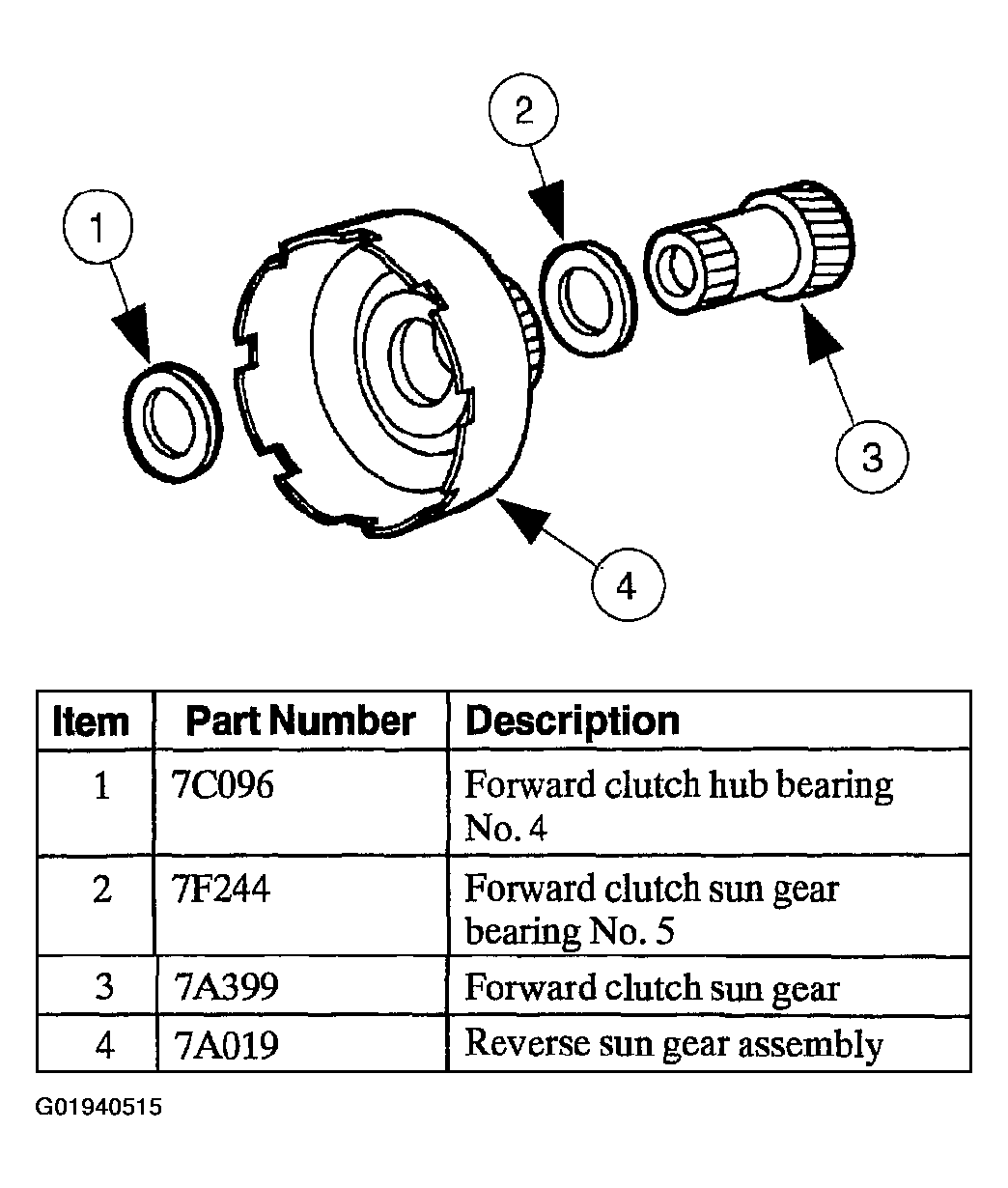

Fig 1: Identifying Reverse Sun Gear
G01940515Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

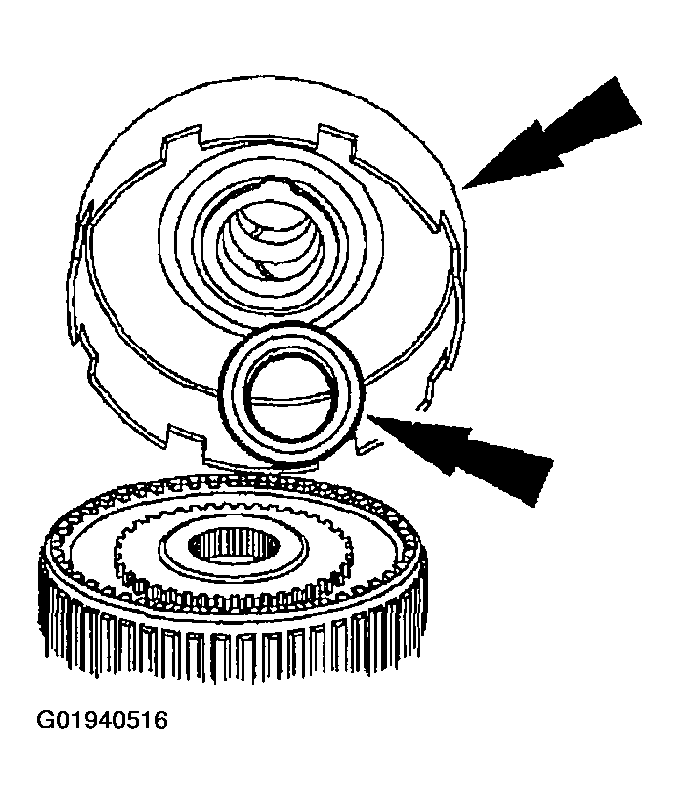

    Fig 2: Identifying Reverse Clutch Sun Gear Assembly & No. 4 Forward Clutch Hub Bearing & Race
    G01940516Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.

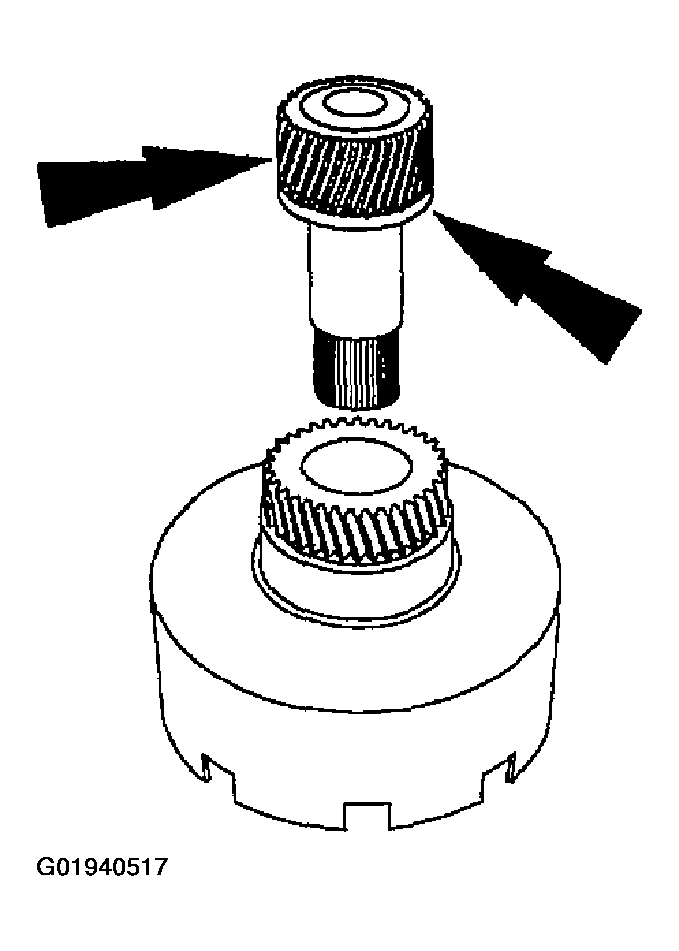

    Fig 3: Identifying No. 5 Forward Clutch Sun Gear Bearing & Race
    G01940517Courtesy of FORD MOTOR CO.
