Pump & Intermediate Clutch Piston: Disassembly

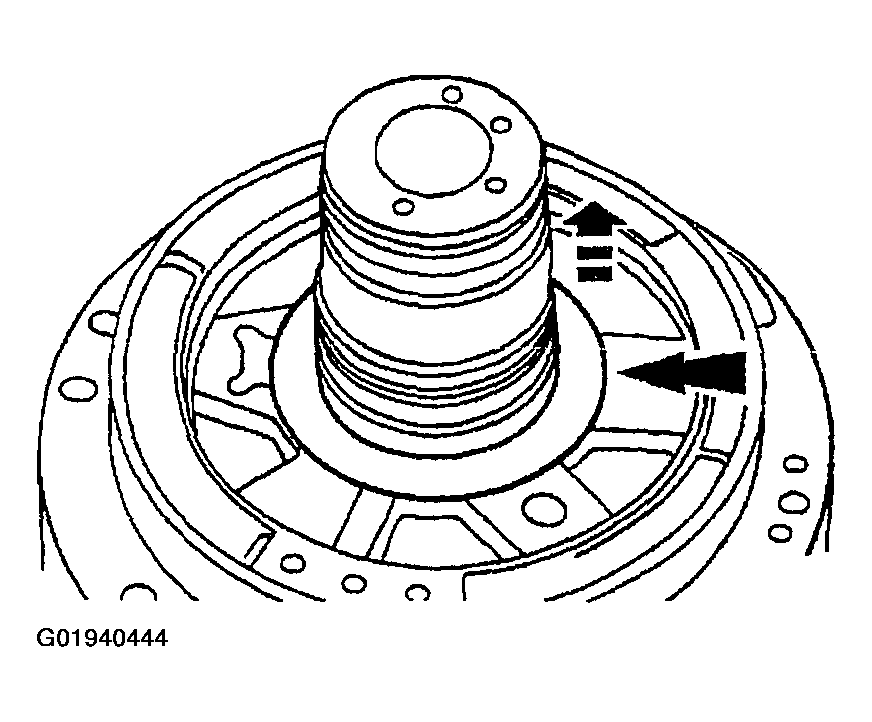

Remove the No. 1 selective pump support thrust washer.

Fig 1: Identifying No. 1 Selective Pump Support Thrust Washer
Courtesy of FORD MOTOR CO.

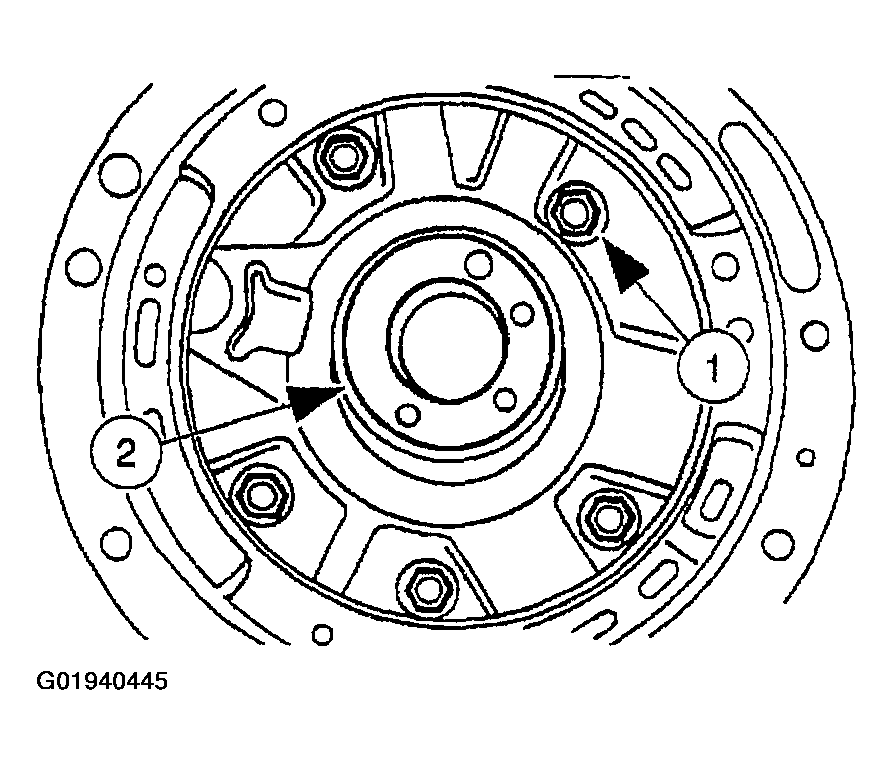

Remove the front pump support.
1. Remove the bolts.
2. Remove the front pump support.
Fig 2: Identifying Front Pump Support & Bolts
Courtesy of FORD MOTOR CO.

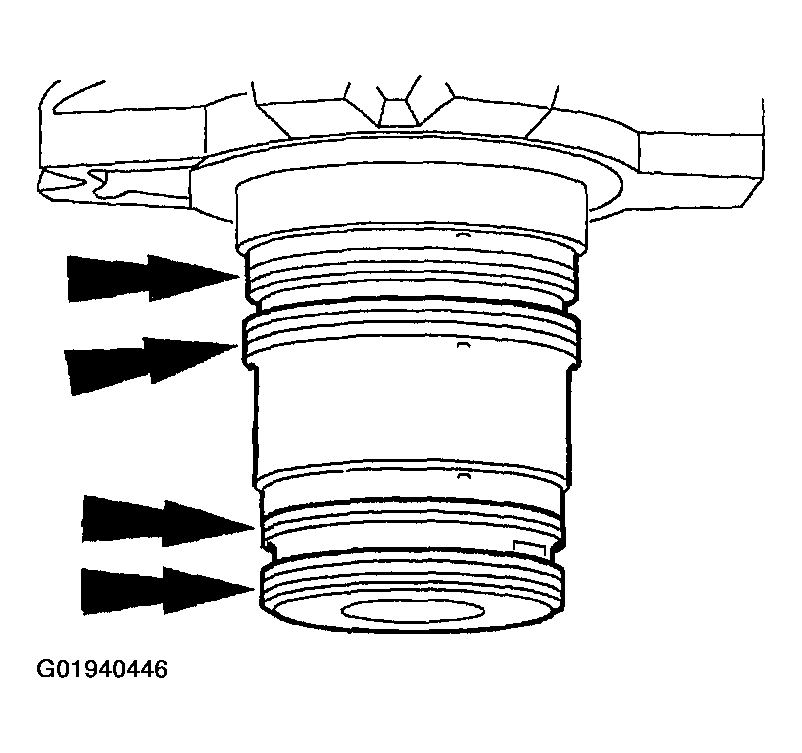

Remove the seal rings.

Fig 3: Identifying Seal Rings
Courtesy of FORD MOTOR CO.

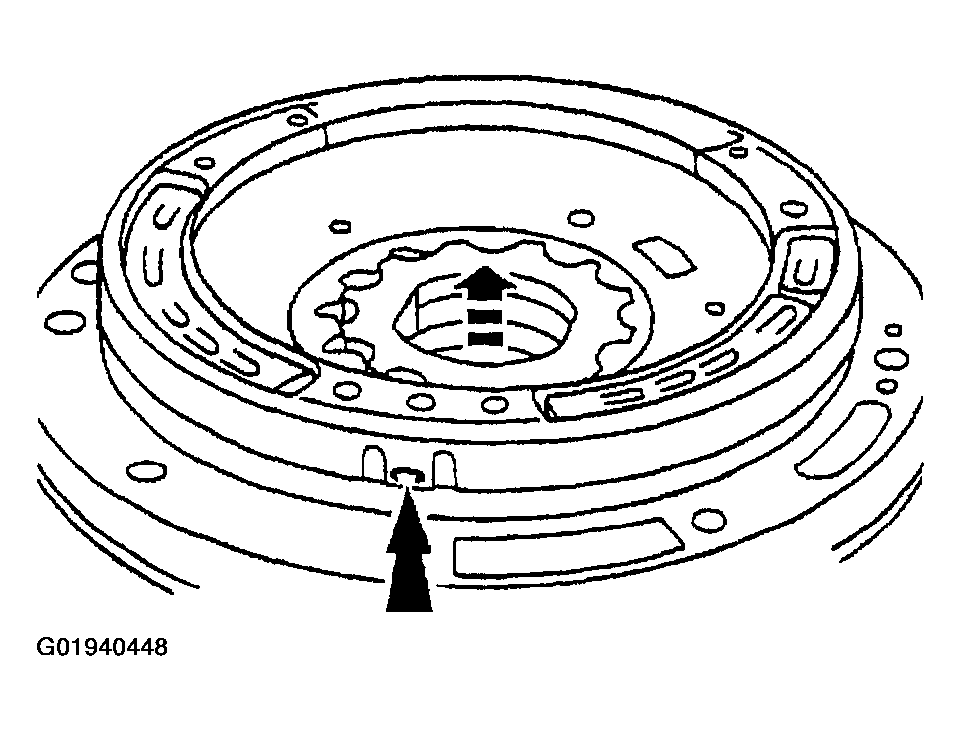

Remove the inner and outer pump gerotor gears.

Fig 4: Identifying Inner & Outer Pump Gerotor Gears
Courtesy of FORD MOTOR CO.

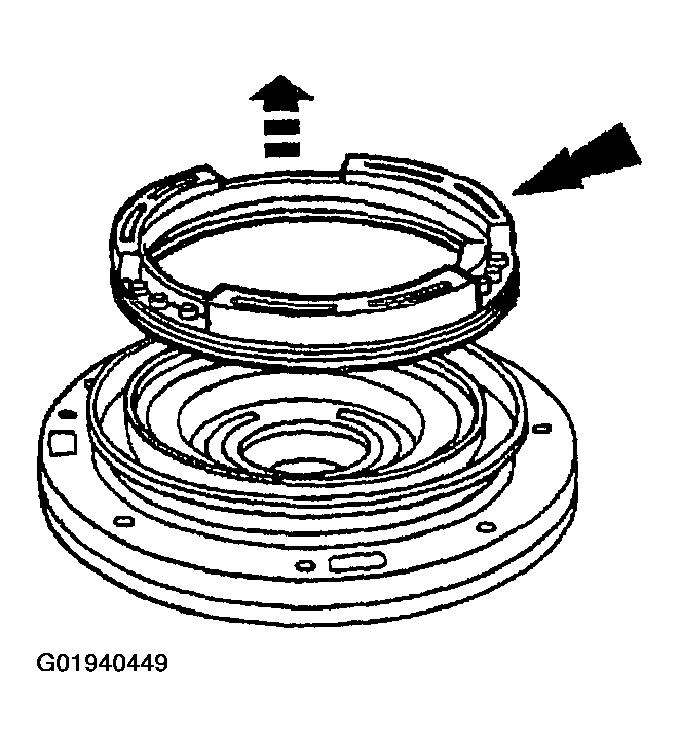

Carefully pry spring retainer tabs and remove the spring retainer assembly.

Fig 5: Identifying Spring Retainer Tabs
Courtesy of FORD MOTOR CO.

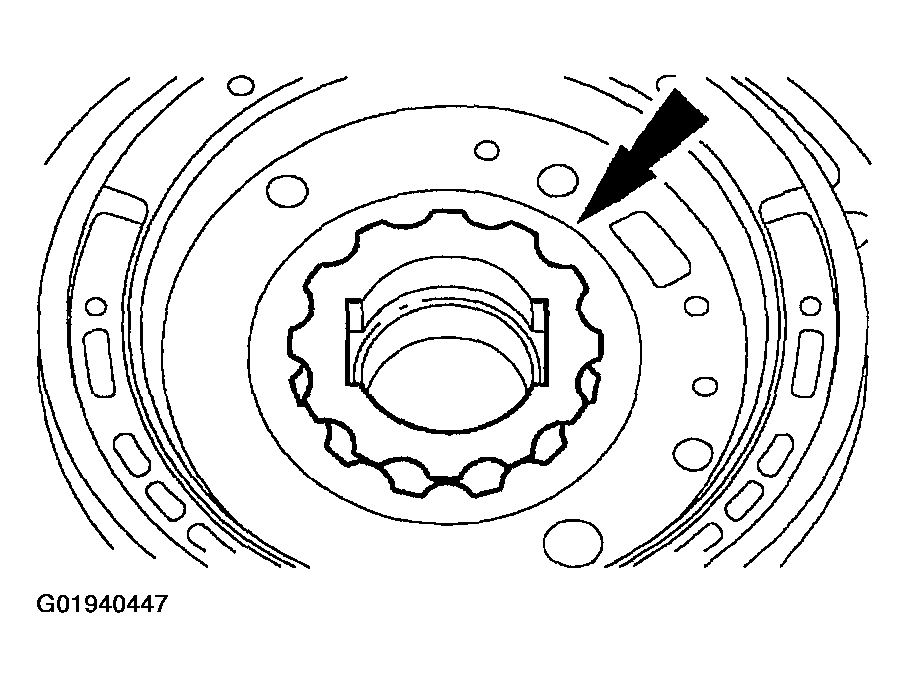

Remove the intermediate clutch piston.

Fig 6: Identifying Intermediate Clutch Piston
Courtesy of FORD MOTOR CO.

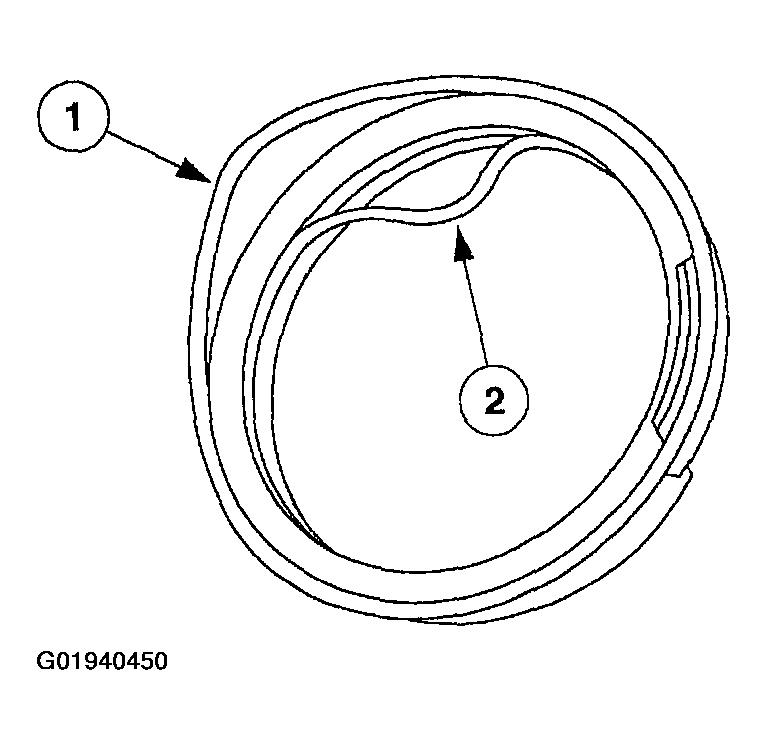

Remove the clutch piston seals.
1. Remove the intermediate clutch piston outer seal.
2. Remove the intermediate clutch piston inner seal.
Fig 7: Identifying Intermediate Clutch Piston Inner & Outer Seal
Courtesy of FORD MOTOR CO.

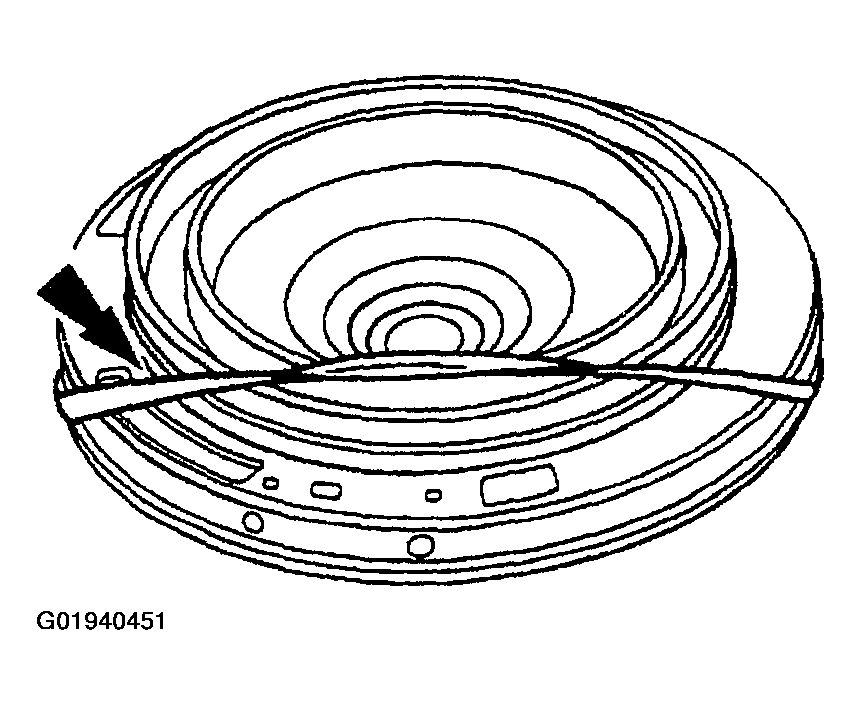

Remove and discard the front pump seal.

Fig 8: Identifying Front Pump Seal
Courtesy of FORD MOTOR CO.
