Exhaust Manifold - Inspection

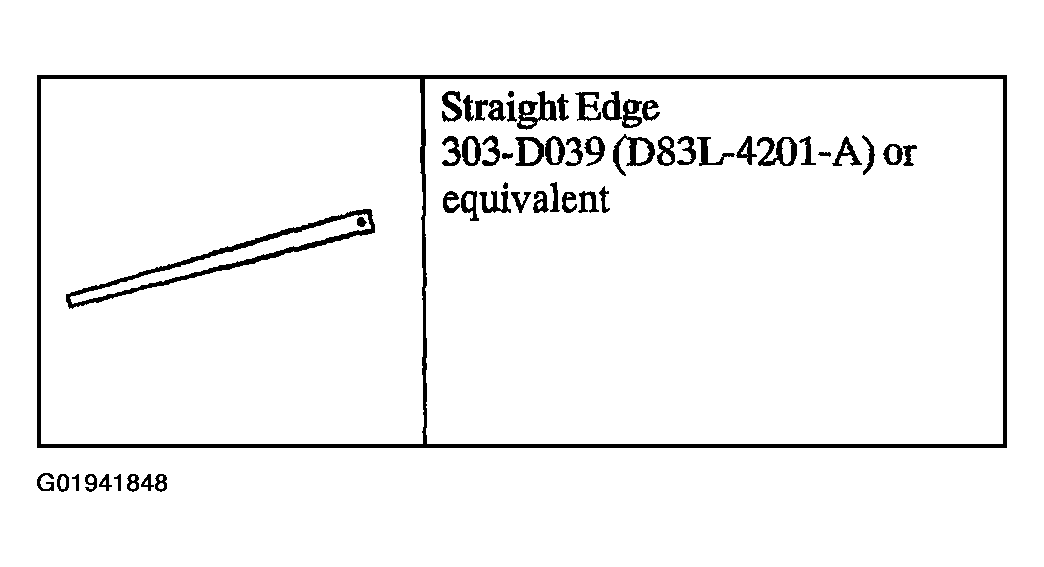

Fig 1: Identifying Straight Edge
G01941848Courtesy of FORD MOTOR CO.
  1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

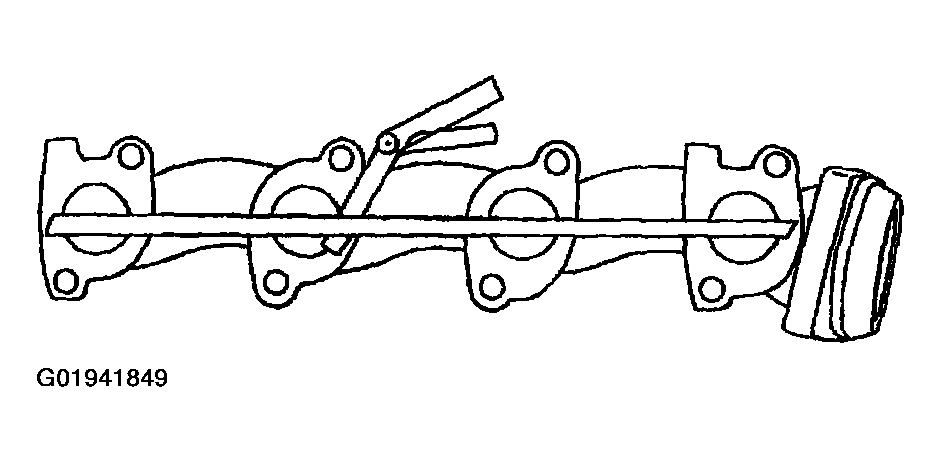

    Fig 2: Inspecting Exhaust Manifold
    G01941849Courtesy of FORD MOTOR CO.
