Crown Victoria Police Interceptor, 4.6 W
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System
>>
Diagnosis & Testing
>>
Anti-Lock Control - Anti-Wheel Spin Control
>>
Symptom Chart
Symptom Chart

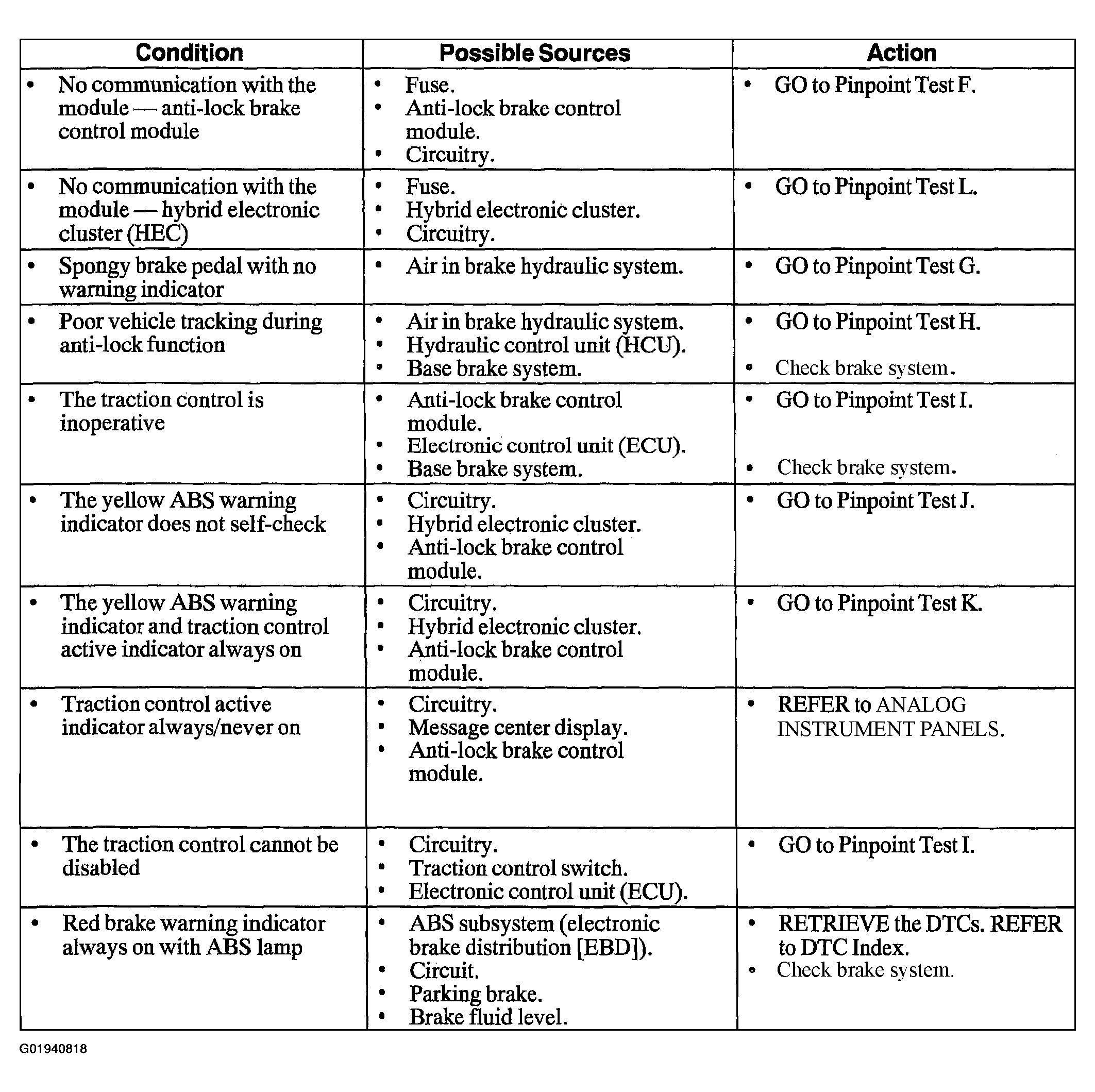

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
