Pinpoint Test I: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

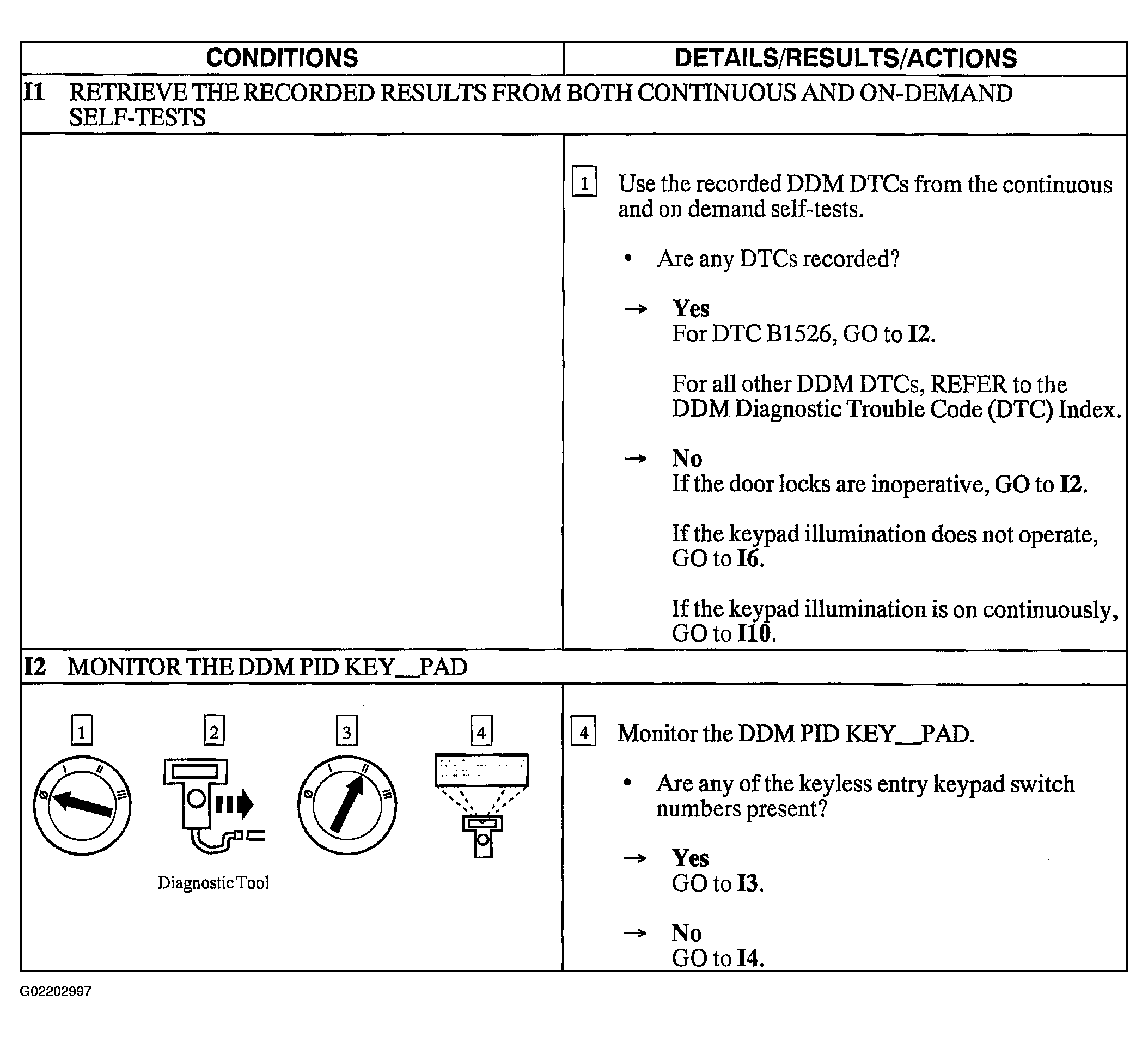

Fig 1: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I1 - I2)
Courtesy of FORD MOTOR CO.

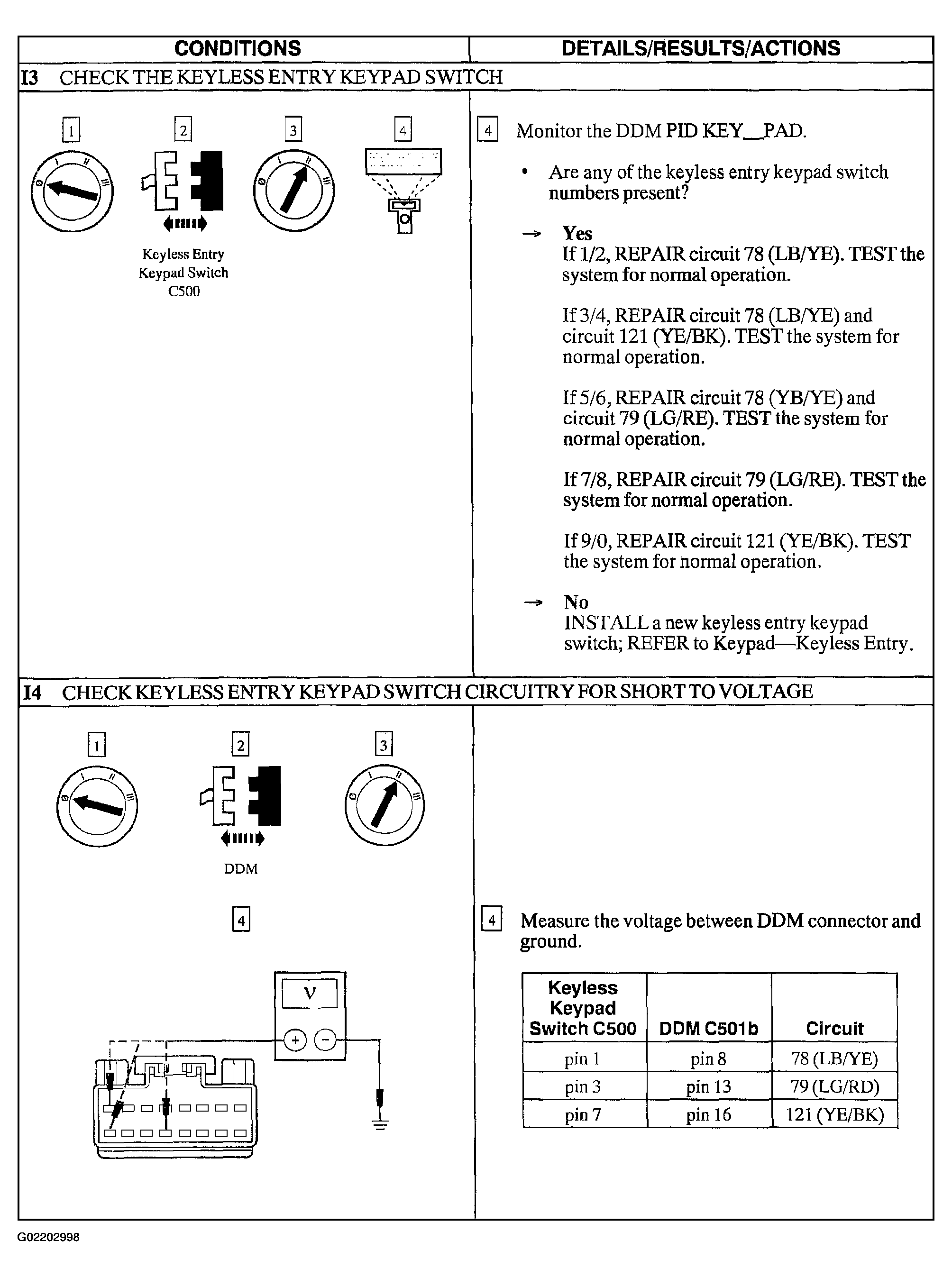

Fig 2: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I3 - I4)
Courtesy of FORD MOTOR CO.

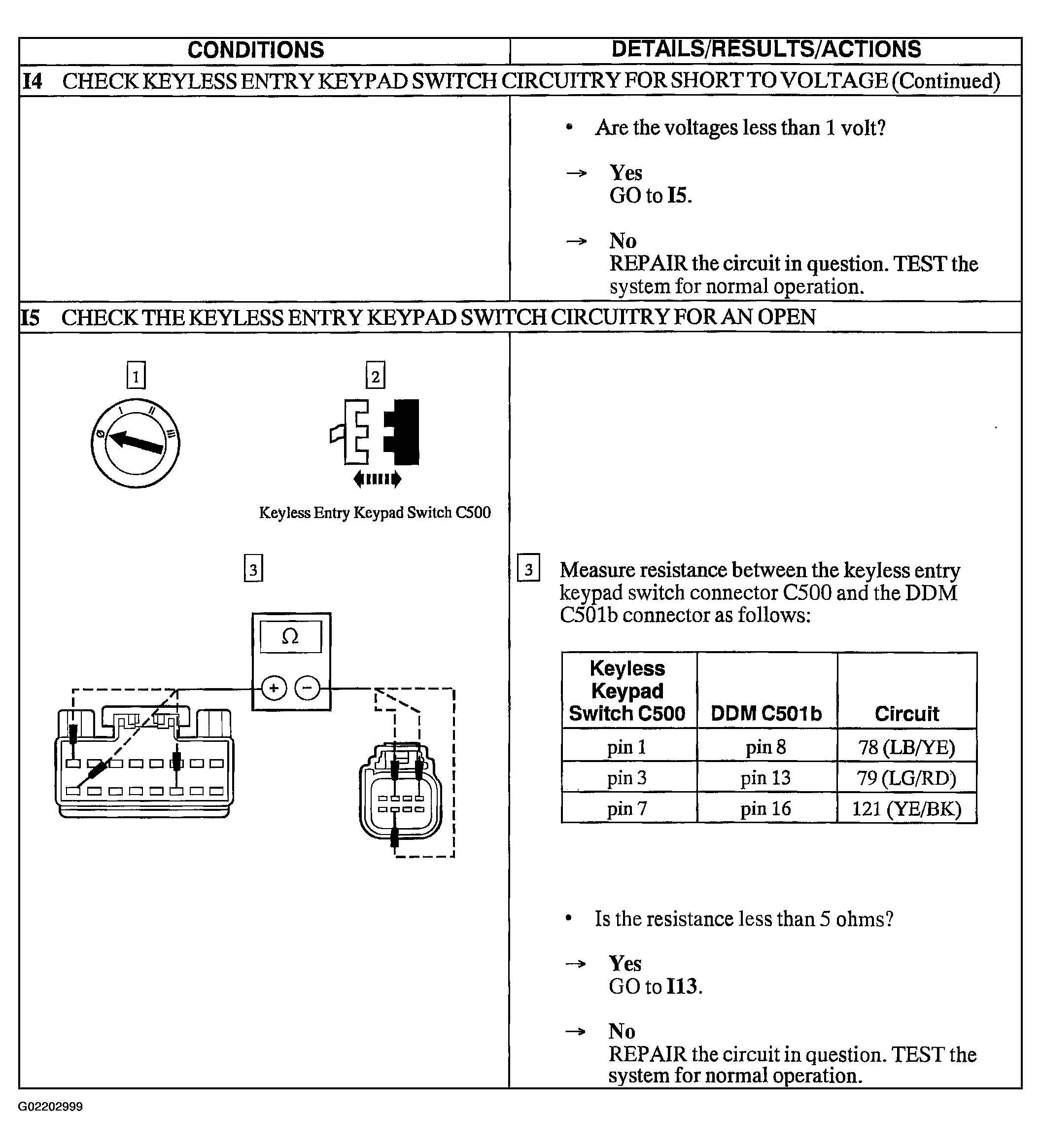

Fig 3: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I4 Cont.- I5)
Courtesy of FORD MOTOR CO.

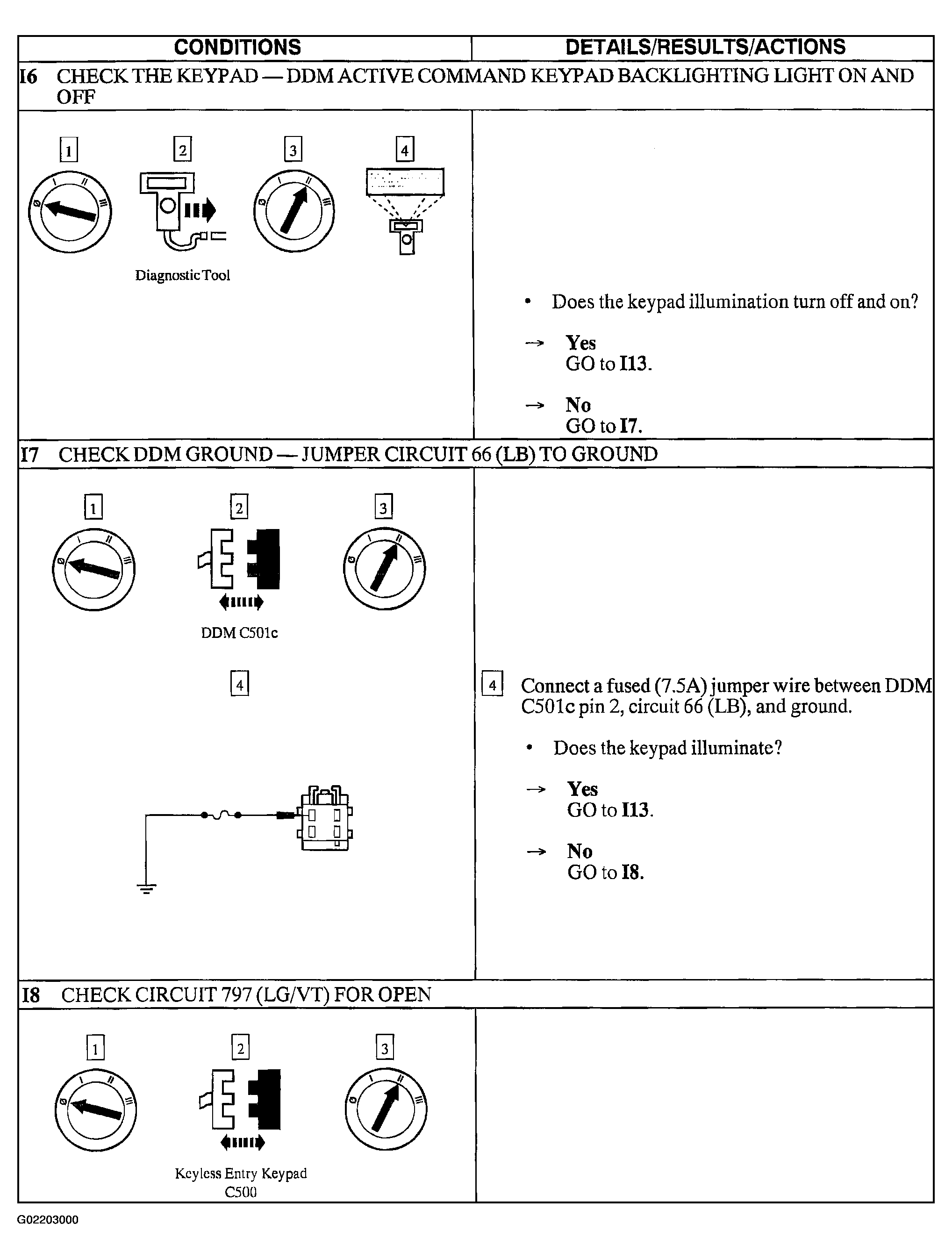

Fig 4: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I6 - I8)
Courtesy of FORD MOTOR CO.
Fig 5: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I8 Cont.- I9)
Courtesy of FORD MOTOR CO.

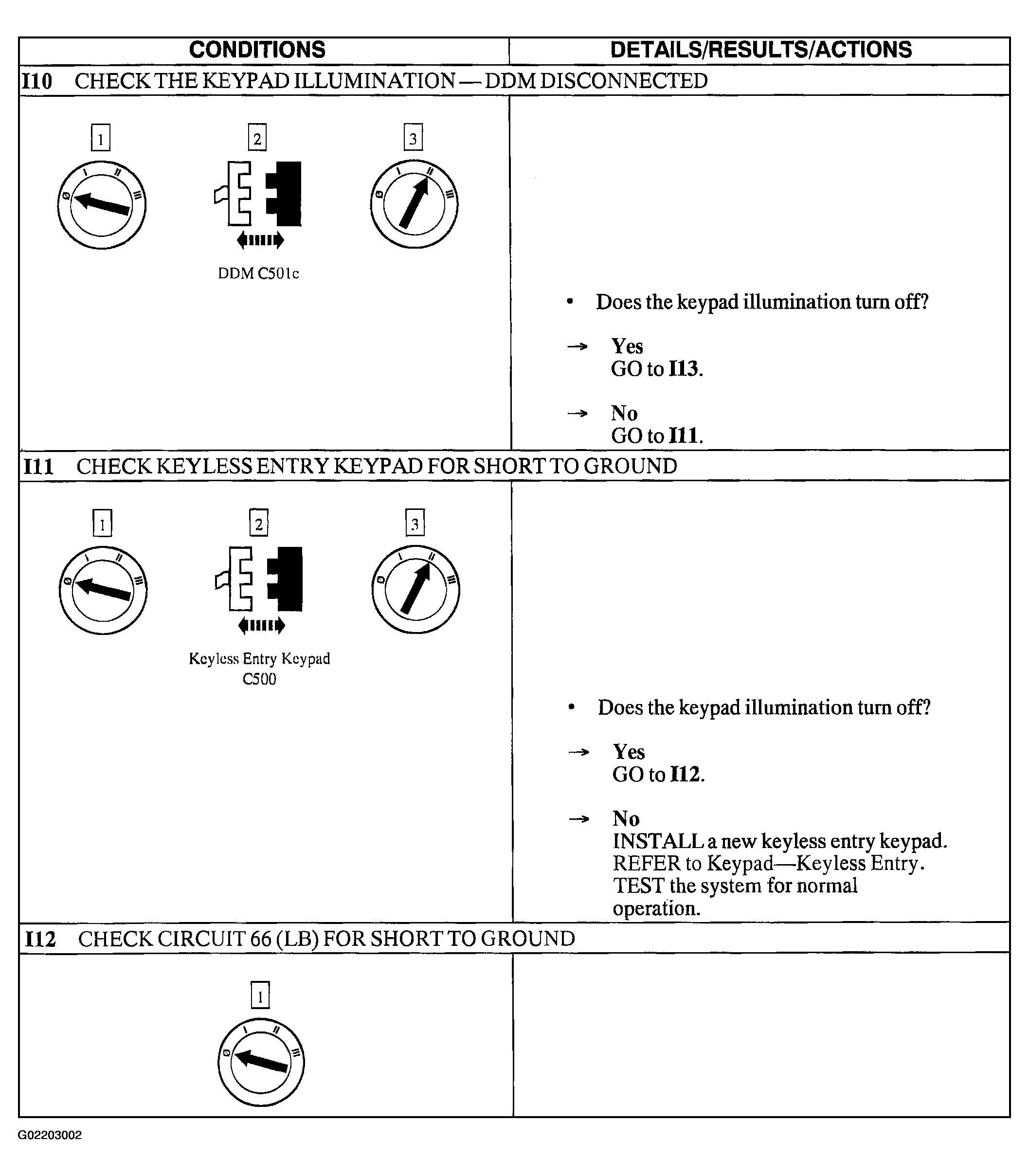

Fig 6: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I10 - I12)
Courtesy of FORD MOTOR CO.

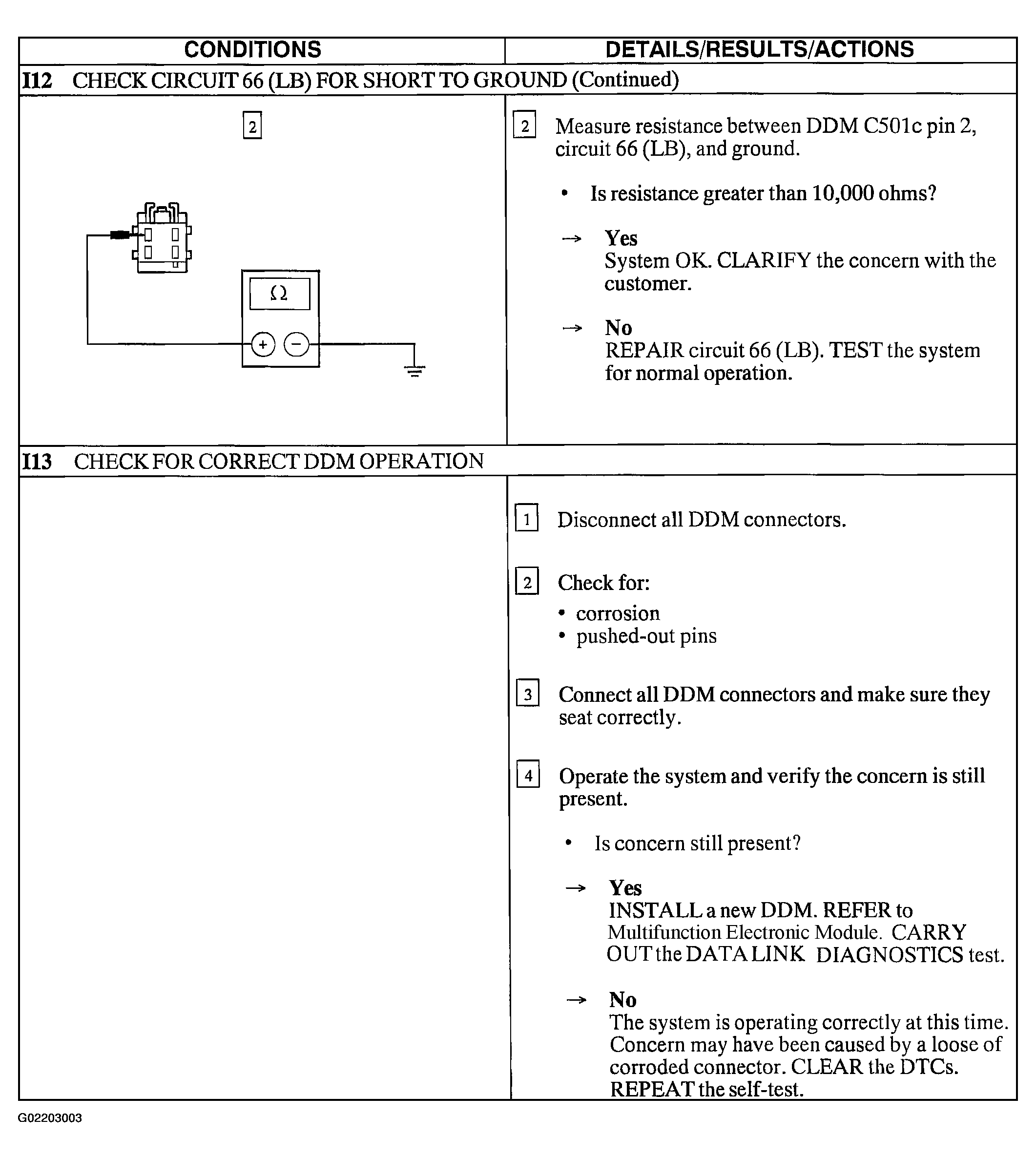

Fig 7: Pinpoint Test I: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (I12 Cont.- I13)
