Pinpoint Test F: The Doors Do Not Lock/Unlock Using The Remote Transmitter
WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

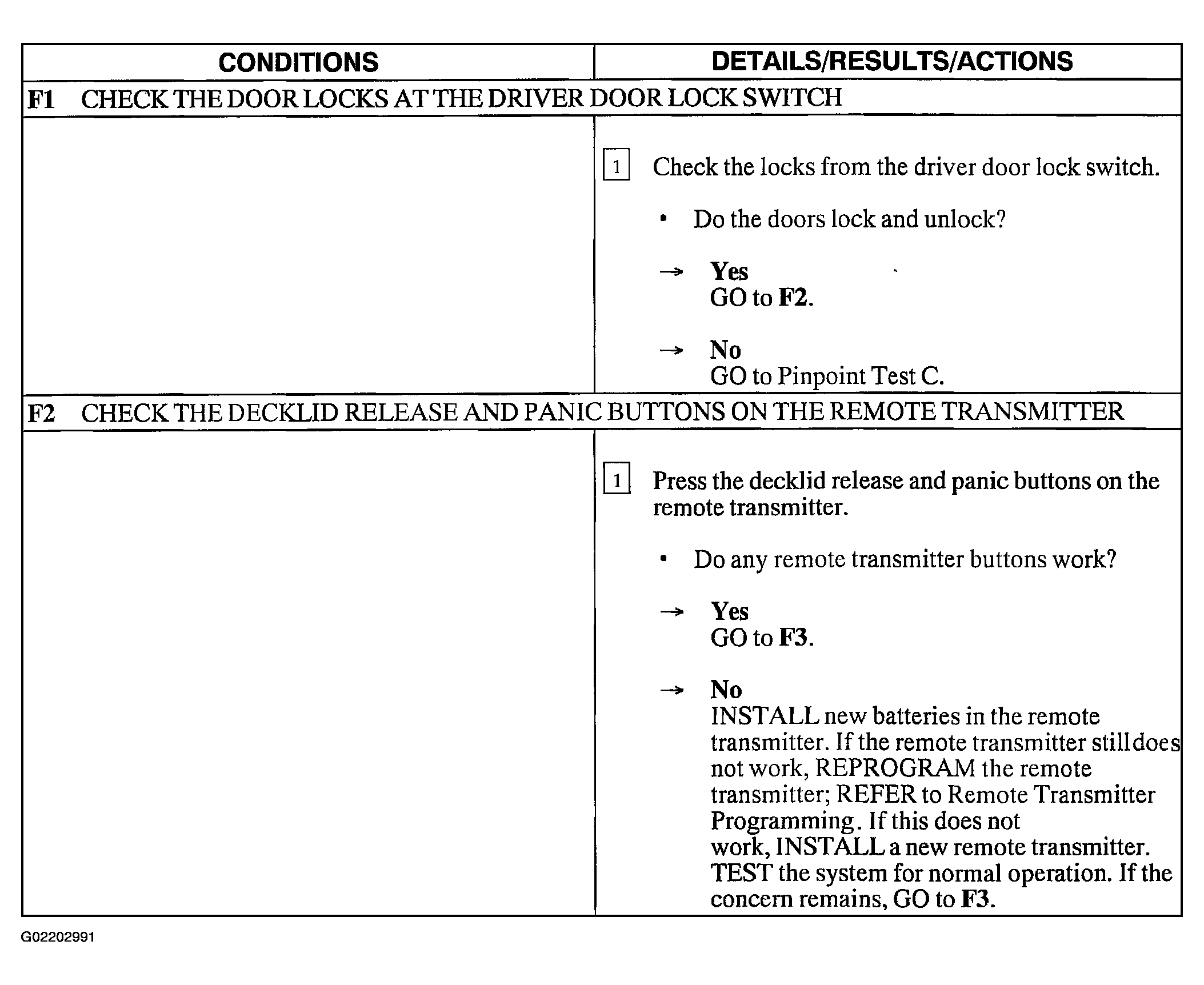

Fig 1: Pinpoint Test F: Doors Do Not Lock/Unlock Using Remote Transmitter (F1 - F2)
Courtesy of FORD MOTOR CO.

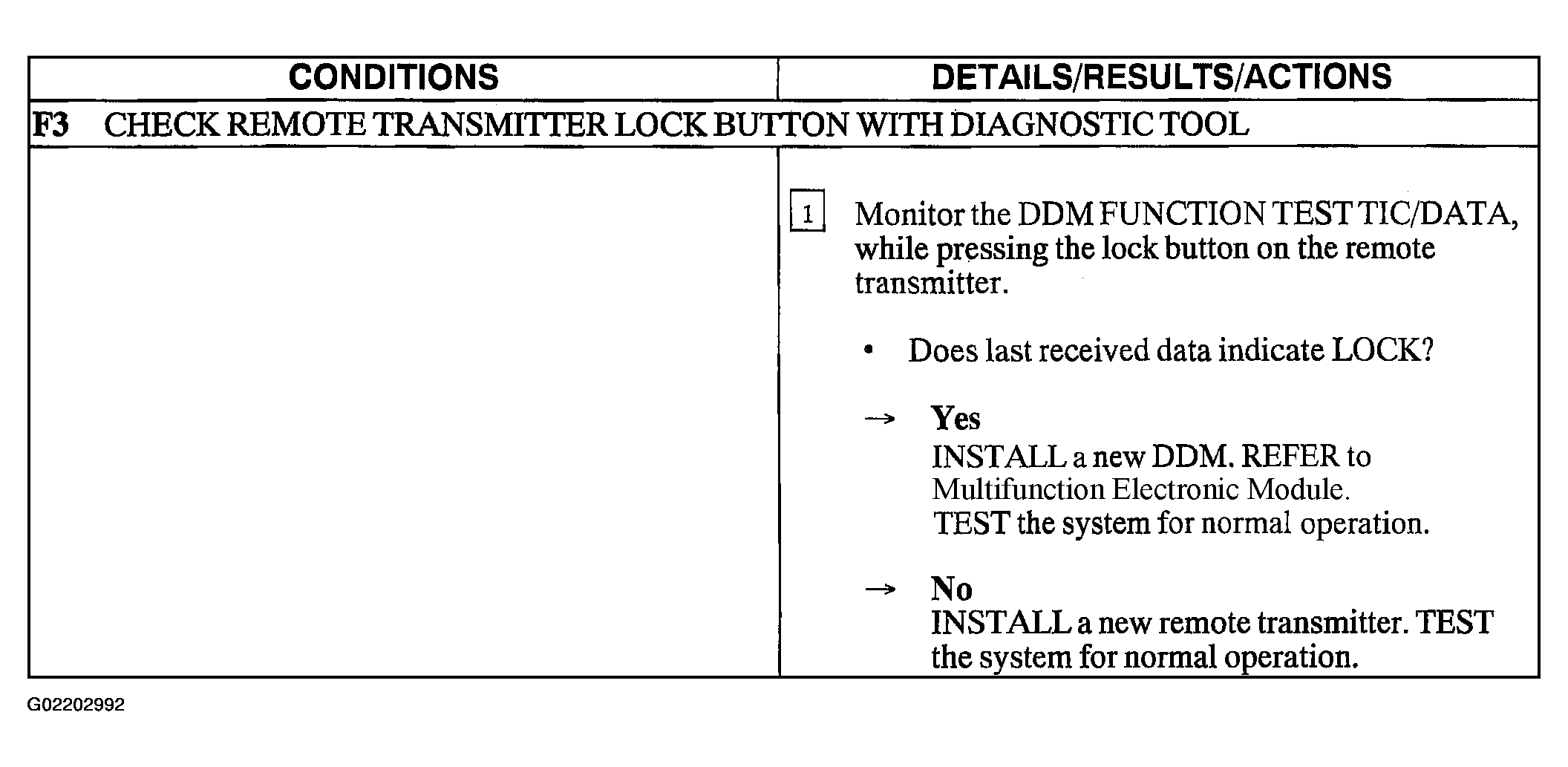

Fig 2: Pinpoint Test F: Doors Do Not Lock/Unlock Using Remote Transmitter (F3)
