Control Assembly: Removal

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center instrument panel finish panel.
    Fig 1: Removing Center Instrument Panel Finish Panel
    G02237765Courtesy of FORD MOTOR CO.
  2. Disconnect the wire harness connector.

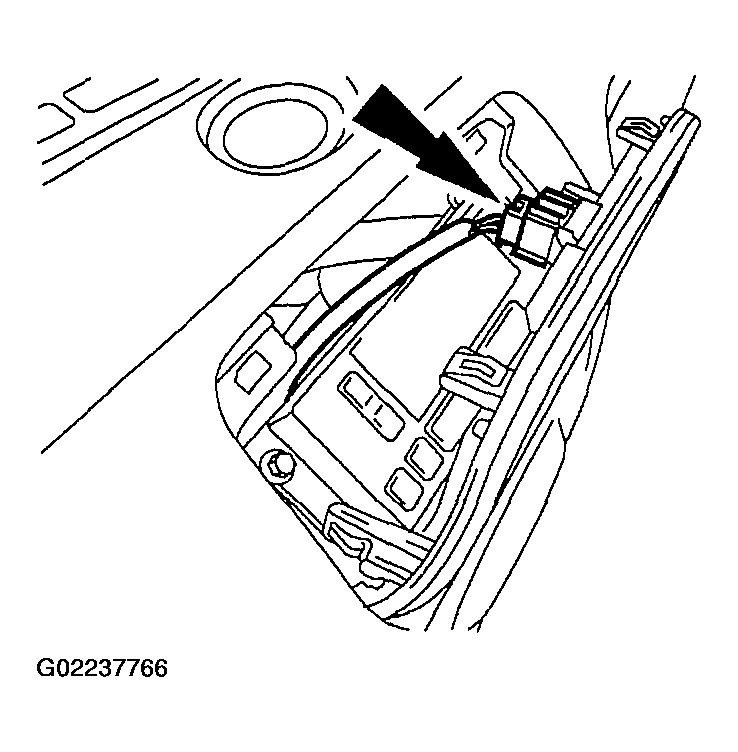

    Fig 2: Disconnecting Wire Harness Connector
    G02237766Courtesy of FORD MOTOR CO.
  3. Remove the screws and pull the electronic automatic temperature control module from the instrument panel.

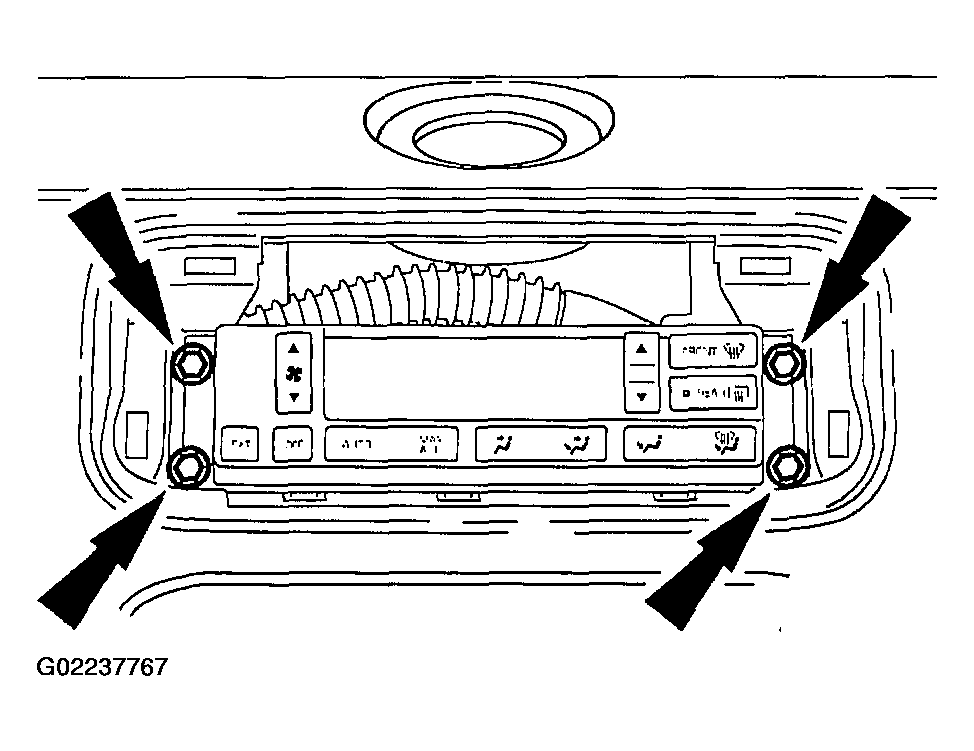

    Fig 3: Removing Electronic Automatic Temperature Control Module Screws
    G02237767Courtesy of FORD MOTOR CO.
  4. Remove the electronic automatic temperature control module.
    • Remove the nuts and the vacuum harness.
    • Disconnect the wire harness connectors and remove the electronic automatic temperature control module.

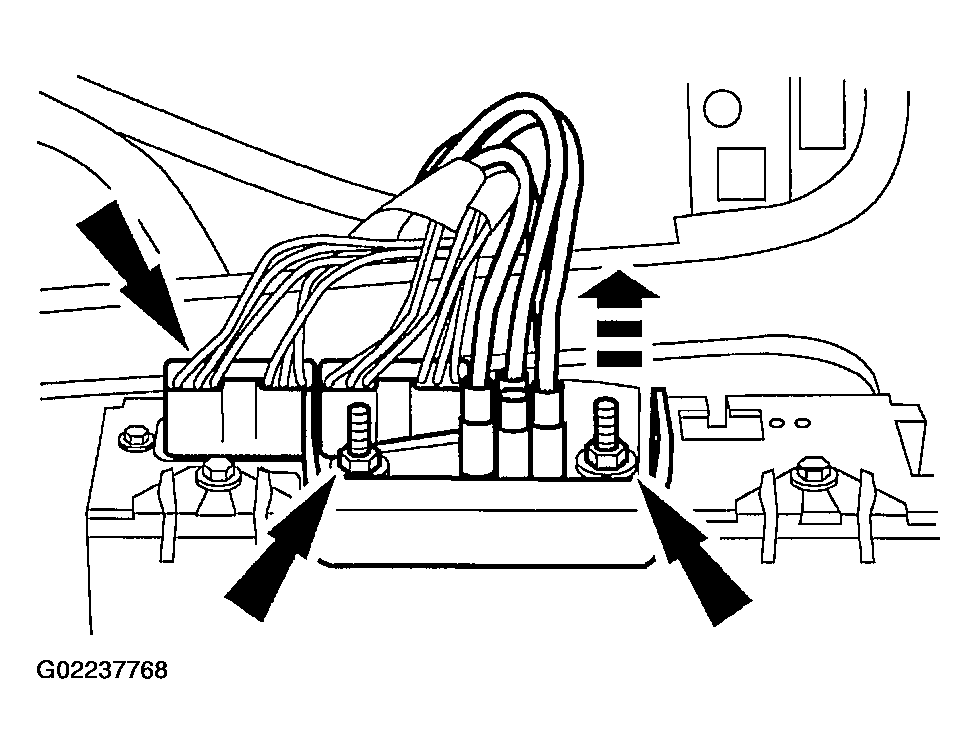

    Fig 4: Removing Electronic Automatic Temperature Control Module
    G02237768Courtesy of FORD MOTOR CO.
