Digital Transmission Range (Tr) Sensor: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING & CABLES .
  2. Raise the vehicle on a hoist.
  3. Disconnect the manual lever shift control cable.

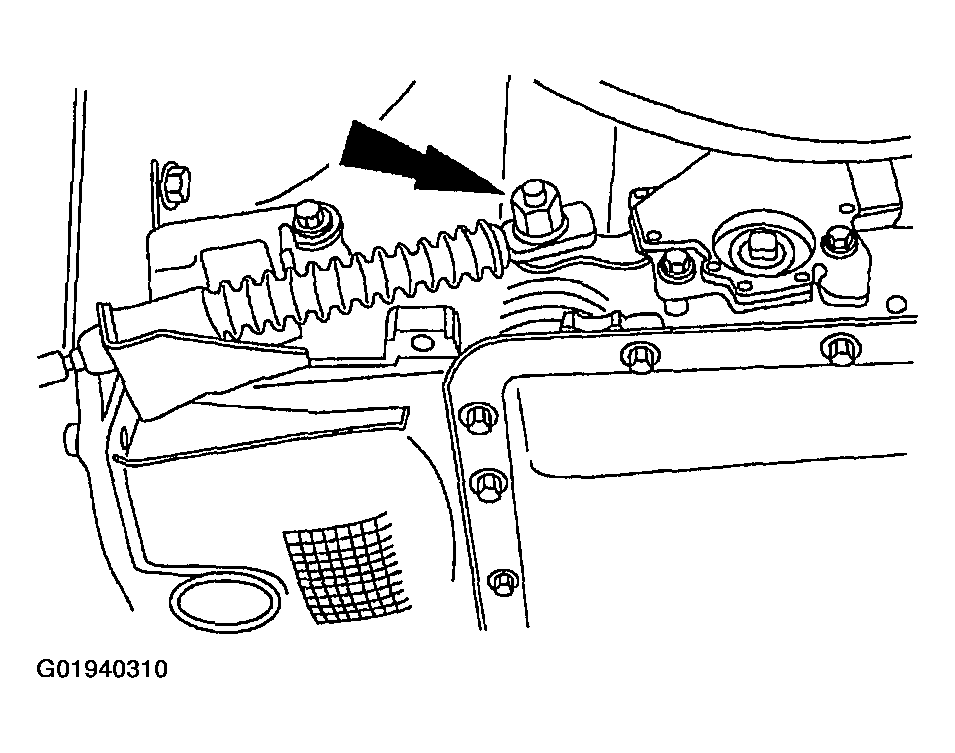

    Fig 1: Identifying Manual Lever Shift Control Cable Nut
    G01940310Courtesy of FORD MOTOR CO.
  4. Disconnect the digital TR sensor connector.

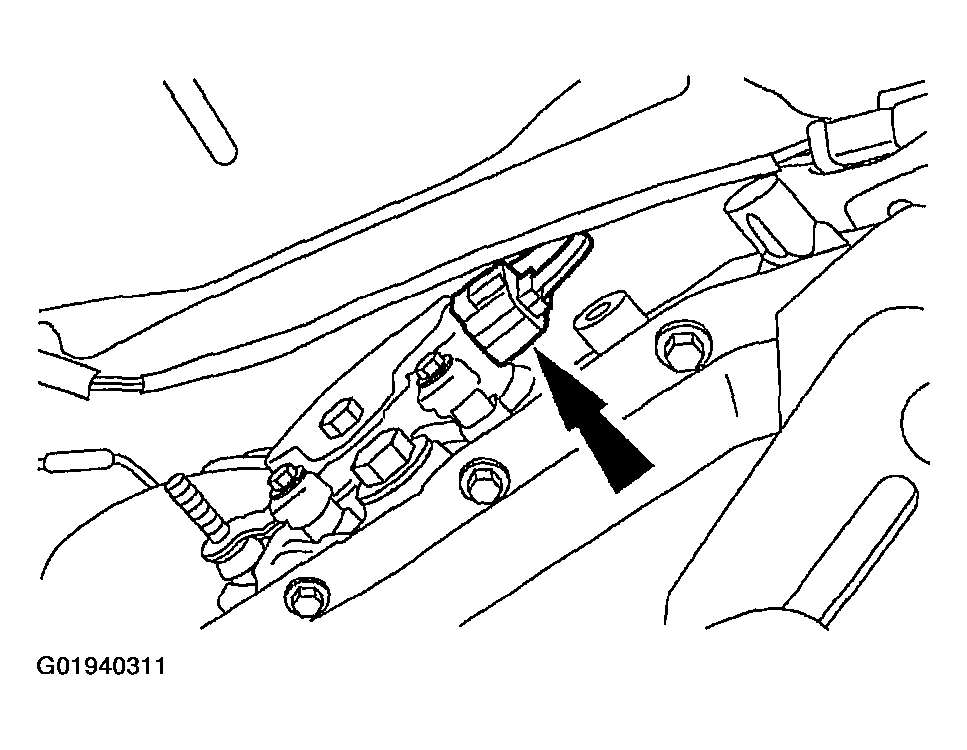

    Fig 2: Identifying Digital TR Sensor Connector
    G01940311Courtesy of FORD MOTOR CO.
  5. Remove the bolts and remove the digital TR sensor.
    Fig 3: Identifying Digital TR Sensor Bolts
    G01940312Courtesy of FORD MOTOR CO.
