Torque Converter One-Way Clutch Check: Procedure

Install the special tool in one of the grooves in the stator thrust washer.

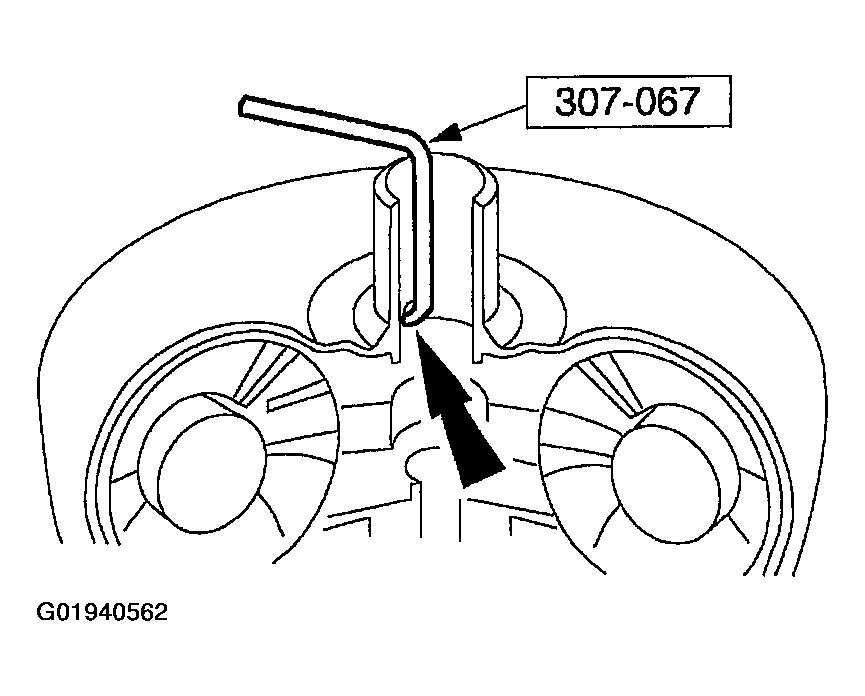

Fig 1: Identifying Torque Converter Clutch Holding Tool
Courtesy of FORD MOTOR CO.
Install the special tool in the converter pump drive.

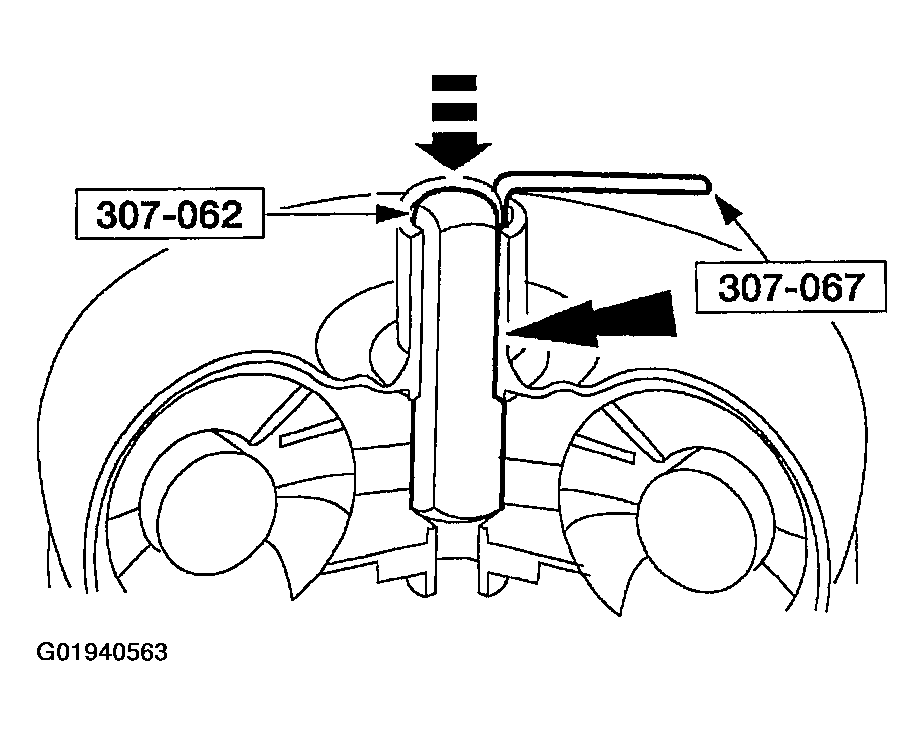

Fig 2: Identifying Torque Converter Clutch Holding Tool & One-Way Clutch Holding Tool
Courtesy of FORD MOTOR CO.
Use a torque wrench to turn the special tool counterclockwise while holding the special tool stationary.
- The converter should lock up and hold torque.
- The torque converter one-way clutch should rotate freely in the clockwise direction.
- Try the clutch for lockup and hold in at least five positions.
- If the torque converter fails the lockup test torque, install a new or remanufactured torque converter.

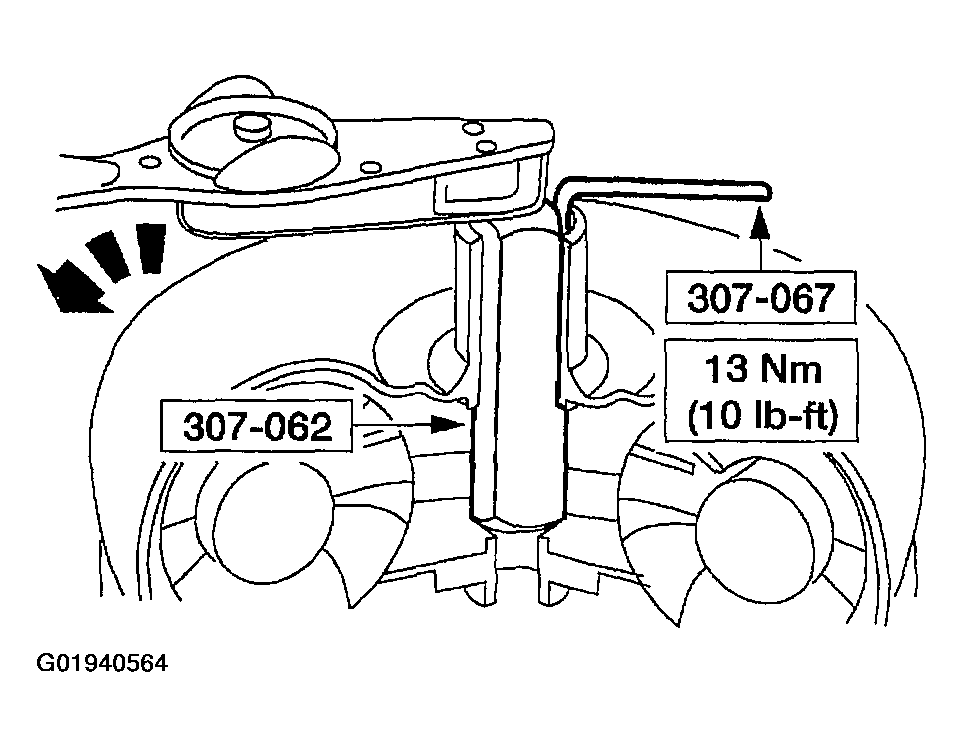

Fig 3: Checking Torque Converter One-Way Clutch
Courtesy of FORD MOTOR CO.
