Torque Converter End Play Check: Procedure

  1. Install the special tool into the torque converter pump drive.
    • Tighten the inner post until the tool is securely locked.

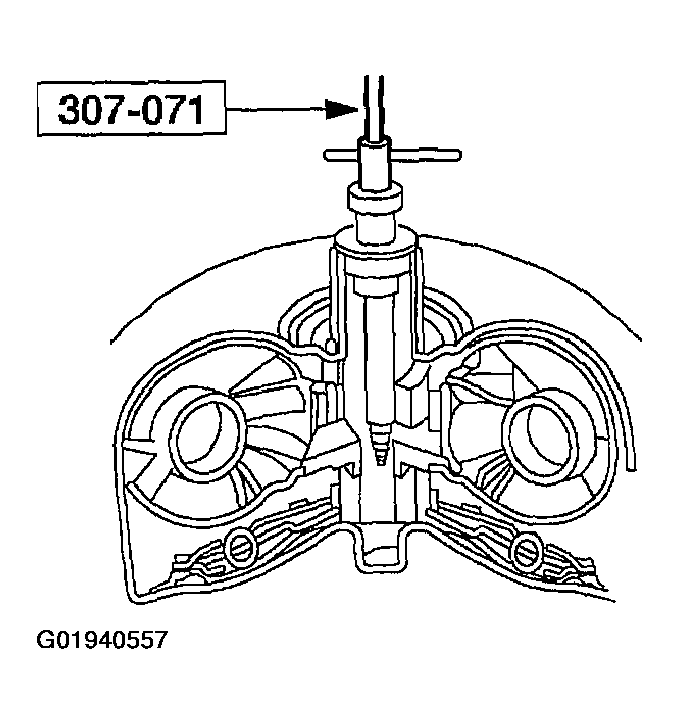

    Fig 1: Identifying Torque Converter End Play Gauge
    G01940557Courtesy of FORD MOTOR CO.
  2. Install the special tool on the converter pump drive hub and zero the dial indicator.

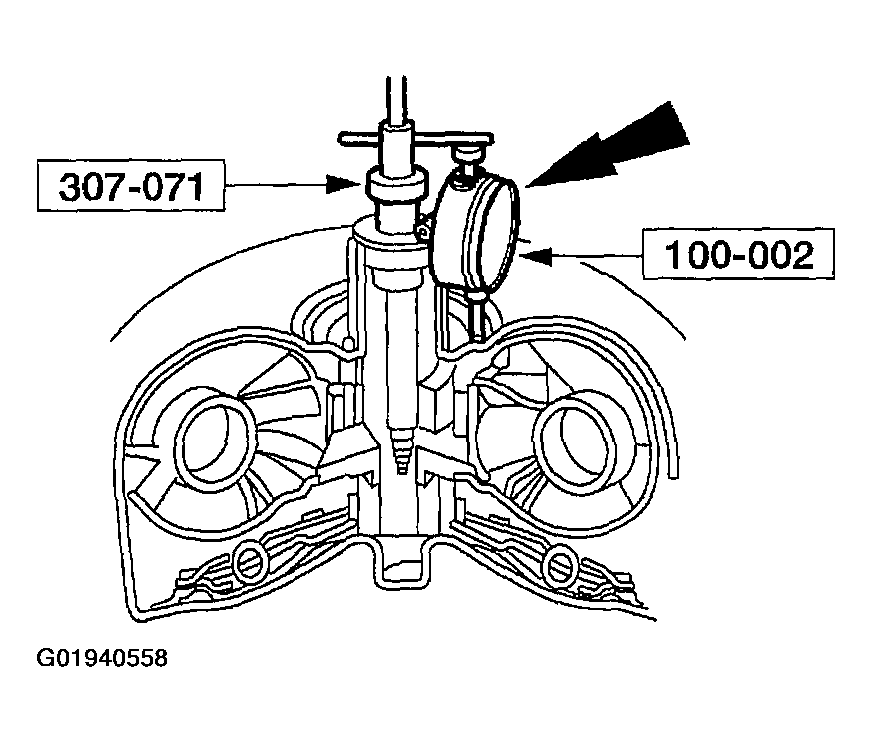

    Fig 2: Identifying Dial Indicator Gauge With Holding Fixture & Torque Converter End Play Gauge
    G01940558Courtesy of FORD MOTOR CO.
  3. Lift up on the special tool and note the dial indicator reading.
    • If the reading exceeds end play limits, install a new or remanufactured torque converter.
    Fig 3: Identifying Torque Converter End Play Specifications
    G01940559Courtesy of FORD MOTOR CO.

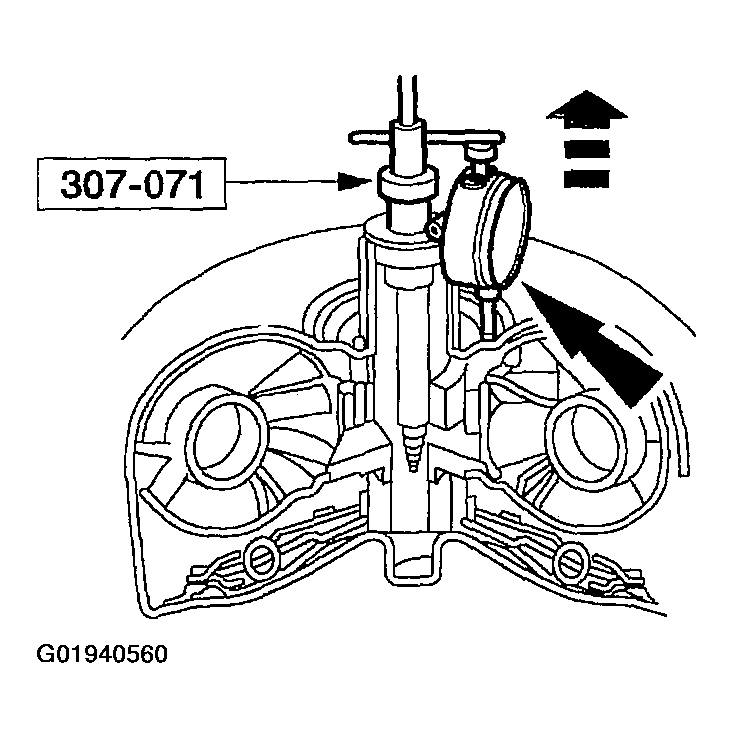

    Fig 4: Checking Torque Converter End Play
    G01940560Courtesy of FORD MOTOR CO.
  4. Remove the special tools.
