Main Control

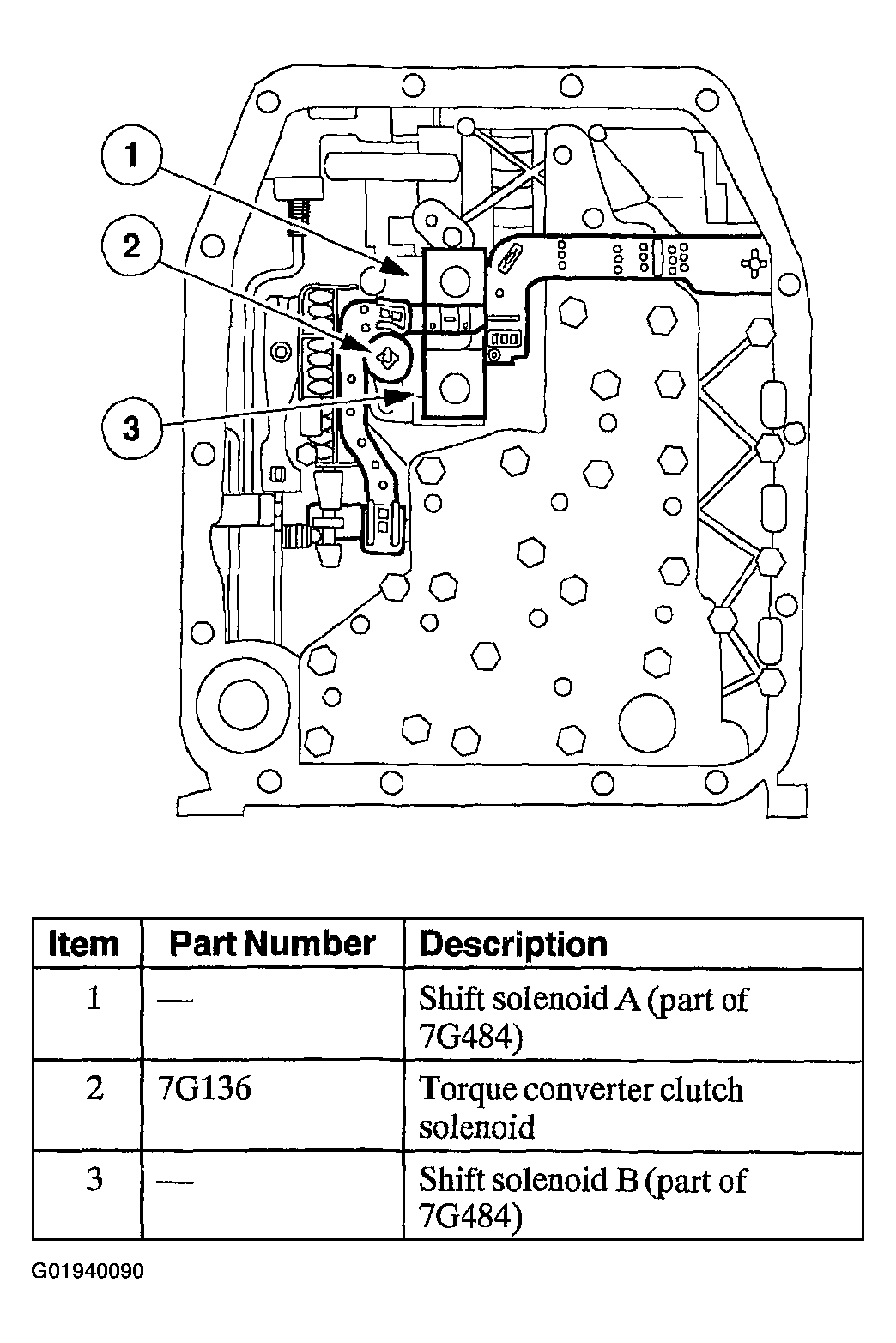

Fig 1: Identifying Solenoids

G01940090

Courtesy of FORD MOTOR CO.

The main control valve body houses three electronic solenoids:

Two Shift Solenoids
One Torque Converter Clutch Solenoid (TCC Solenoid)
