Pinpoint Test E: DTC C1127 - DEACTIVATOR Switch Circuit Failure

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

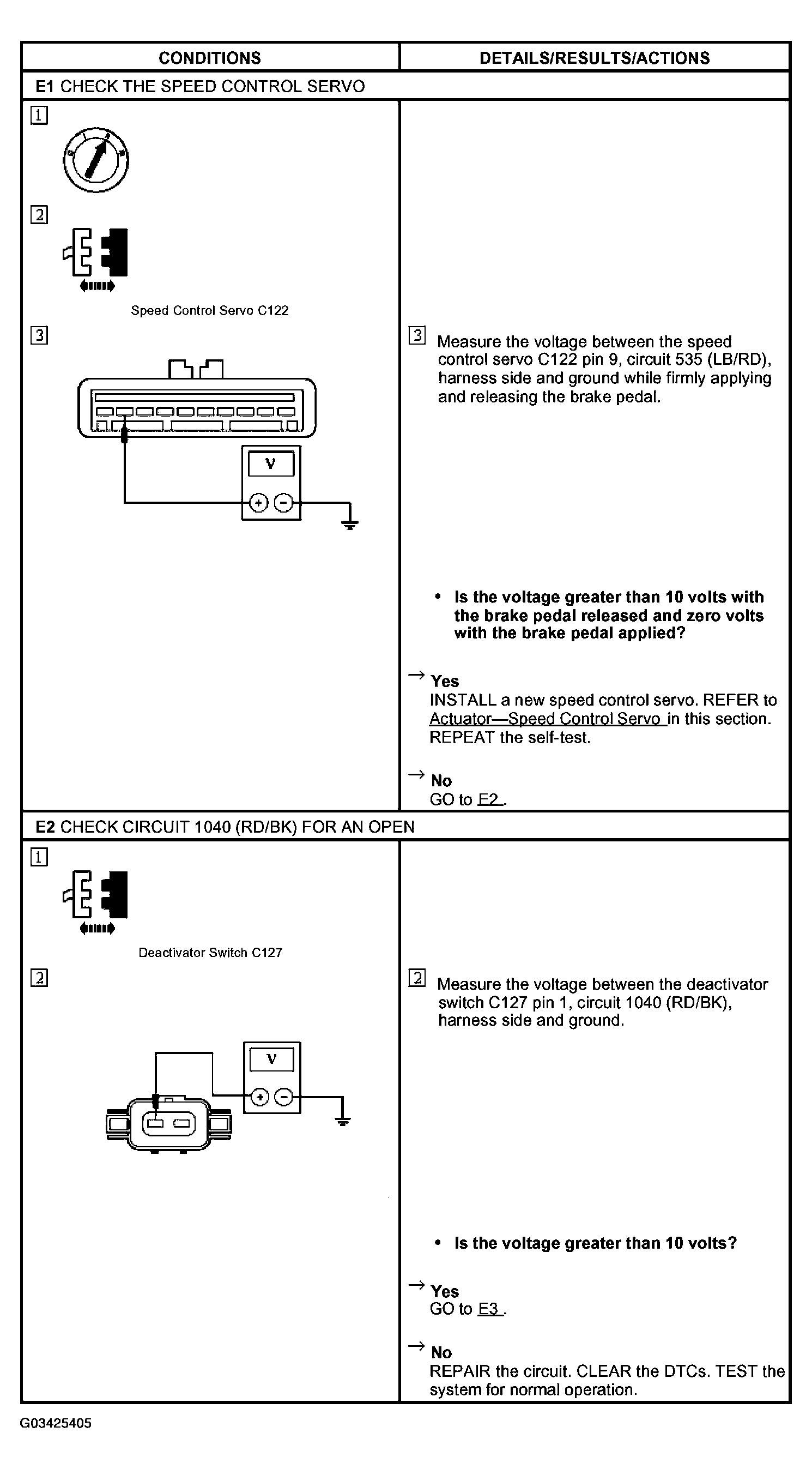

Fig 1: Pinpoint Test E: DTC C1127 - Deactivator Switch Circuit Failure (E1 & E2)

Courtesy of FORD MOTOR CO.

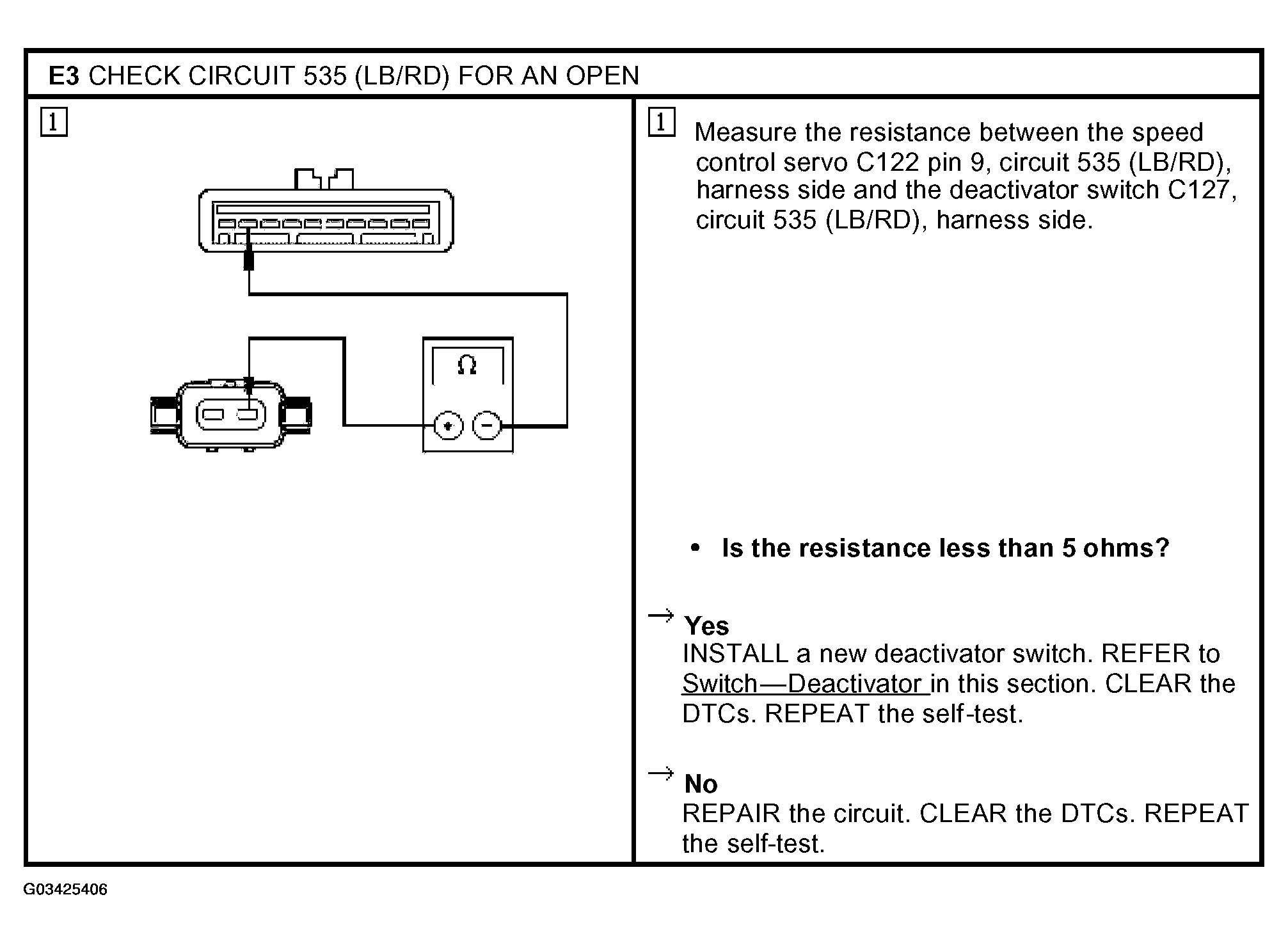

Fig 2: Pinpoint Test E: DTC C1127 - Deactivator Switch Circuit Failure (E3)

Courtesy of FORD MOTOR CO.
