Stabilizer Bar: Installation

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: The stabilizer bar bushings must be located correctly on the flats of the stabilizer bar with no lubricant.

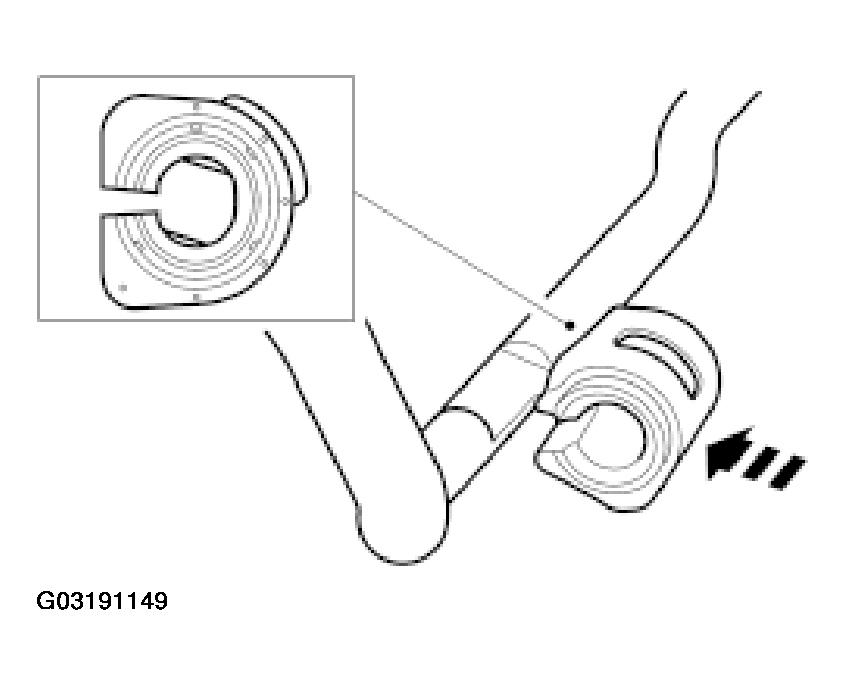

    Fig 1: Installing Stabilizer Bar Bushings
    G03191149Courtesy of FORD MOTOR CO.
  1. Install the stabilizer bar bushings (both sides).
  2. Install the stabilizer bar.
    1. Locate the bushing against the spacer (both sides).
    2. Using suitable cable ties, support the stabilizer bar to specification (both sides).

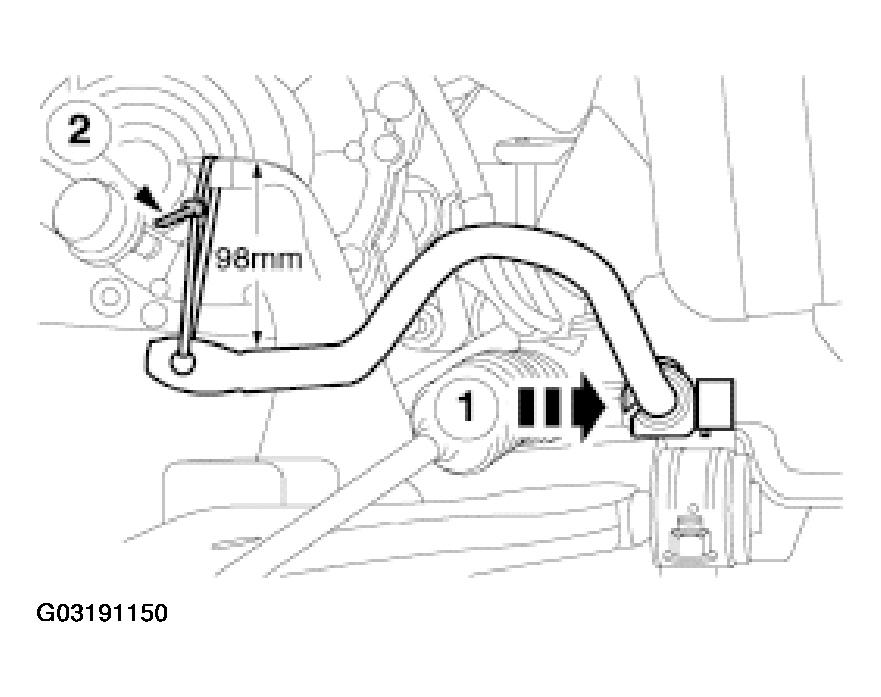

    Fig 2: Installing Stabilizer Bar
    G03191150Courtesy of FORD MOTOR CO.
  3. Install the stabilizer bar clamps.
    1. Apply water to the clamp to assist installation.
    2. Press the clamp onto the bushing.

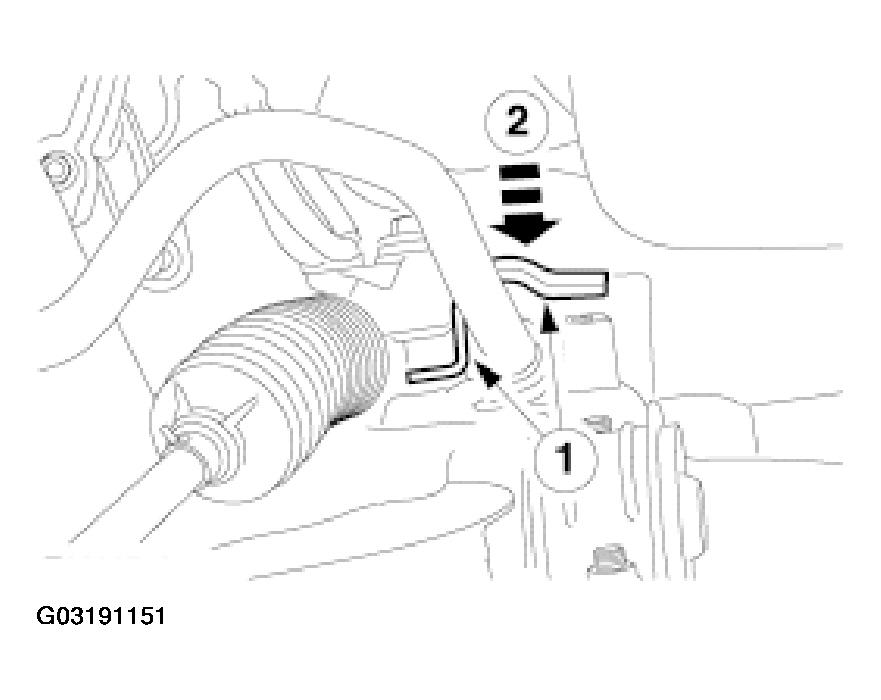

    Fig 3: Installing Stabilizer Bar Clamps
    G03191151Courtesy of FORD MOTOR CO.
  4. Install the stabilizer bar clamp rear retaining bolts.

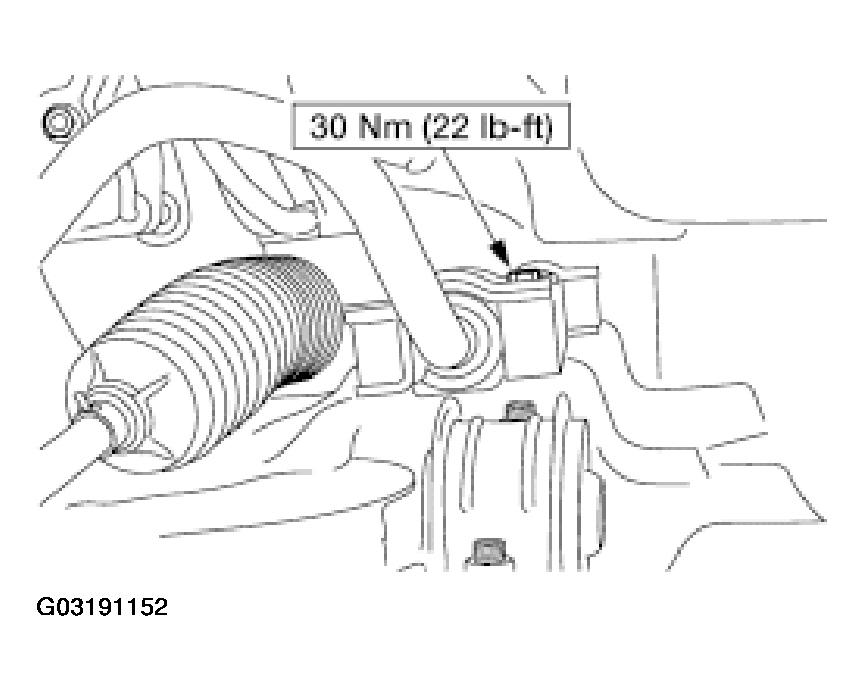

    Fig 4: Installing Stabilizer Bar Clamp Rear Retaining Bolts
    G03191152Courtesy of FORD MOTOR CO.
    5. NOTE: Do not fully tighten stabilizer bar clamp front retaining bolts at this stage.
  5. Install the stabilizer bar clamp front retaining bolts.
  6. Tighten the stabilizer bar clamp retaining bolts.
    • Tighten the bolts in the sequence shown in two stages.
    • Stage 1: Tighten bolts 1 through 2 to 50 Nm (37 lb-ft).
    • Stage 2: Tighten bolts 1 through 2 to 70 Nm (52 lb-ft).

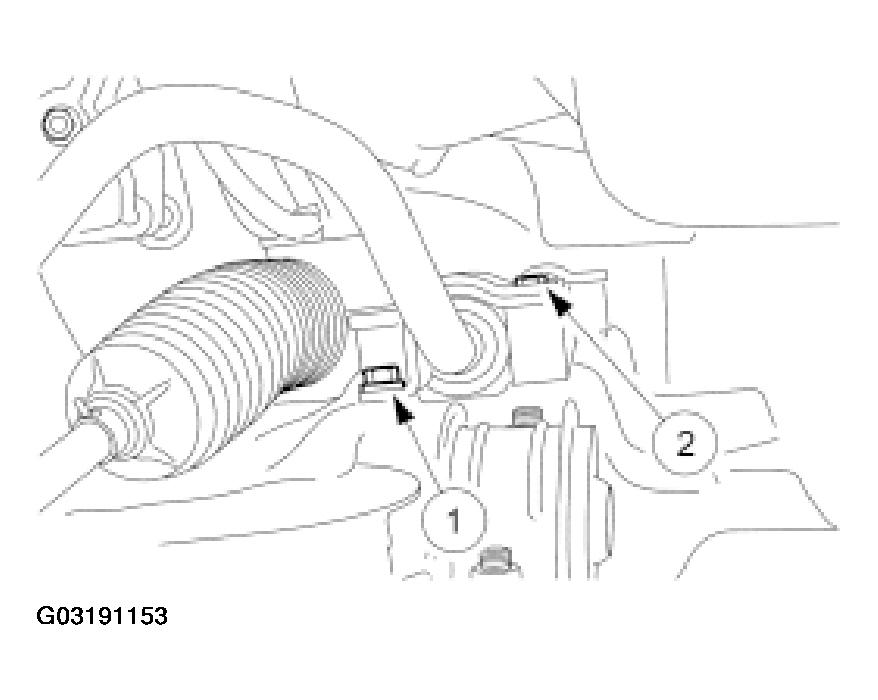

    Fig 5: Tightening Stabilizer Bar Clamp Retaining Bolts
    G03191153Courtesy of FORD MOTOR CO.
  7. Remove the cable ties supporting the stabilizer bar.
    8. CAUTION: Make sure the crossmember ball bearing washers and captives are installed correctly.

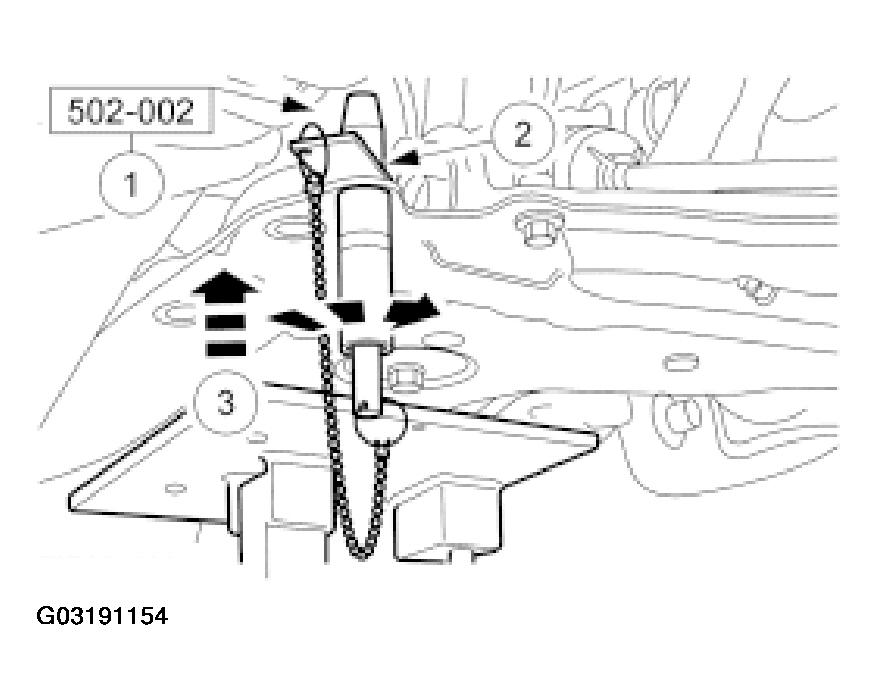

    Fig 6: Aligning Crossmember
    G03191154Courtesy of FORD MOTOR CO.
  8. Using the special tools, align the crossmember.
    1. Insert the guide pins through the crossmember alignment holes.
    2. Slide the locking plates into the grooves and tighten the guide pin sleeve.
    3. Raise the crossmember, engaging the guide pins into the chassis alignment holes.
    9. NOTE: Do not fully tighten the crossmember retaining bolts at this stage.

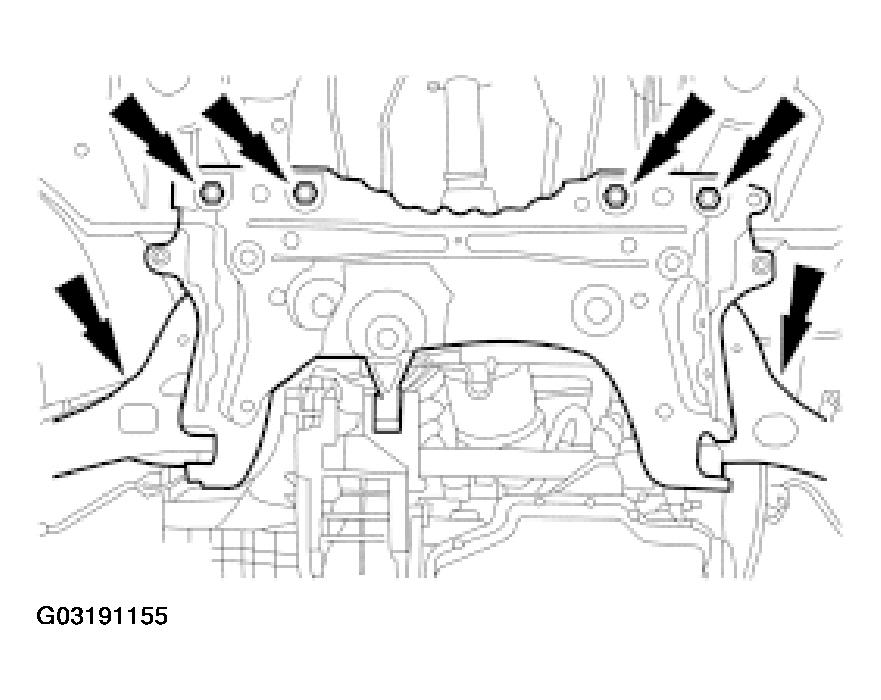

    Fig 7: Installing Crossmember Retaining Bolts
    G03191155Courtesy of FORD MOTOR CO.
  9. Install the crossmember retaining bolts.
  10. Remove the crossmember RH alignment pin.
    11. CAUTION: While tightening the crossmember retaining bolts, make sure the crossmember does not move.

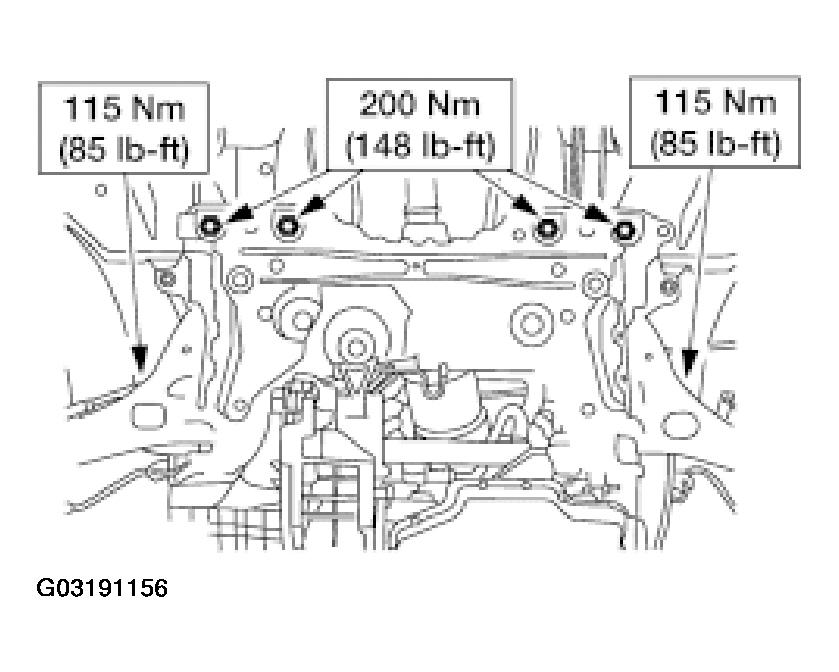

    Fig 8: Tightening Crossmember Retaining Bolts
    G03191156Courtesy of FORD MOTOR CO.
  11. Tighten the crossmember retaining bolts.
  12. Lower and remove the transmission jack.
  13. Remove the crossmember LH alignment pin.
  14. Install the support insulator to transaxle center bolt.

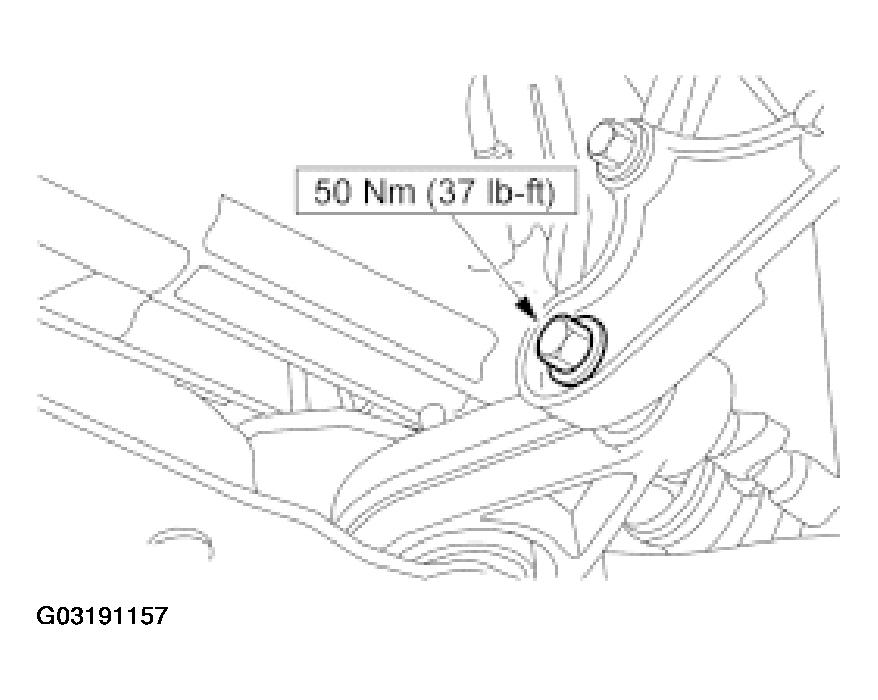

    Fig 9: Installing Support Insulator To Transaxle Center Bolt
    G03191157Courtesy of FORD MOTOR CO.
    15. CAUTION: Make sure the heat shield is installed to prevent damage to the ball joint.

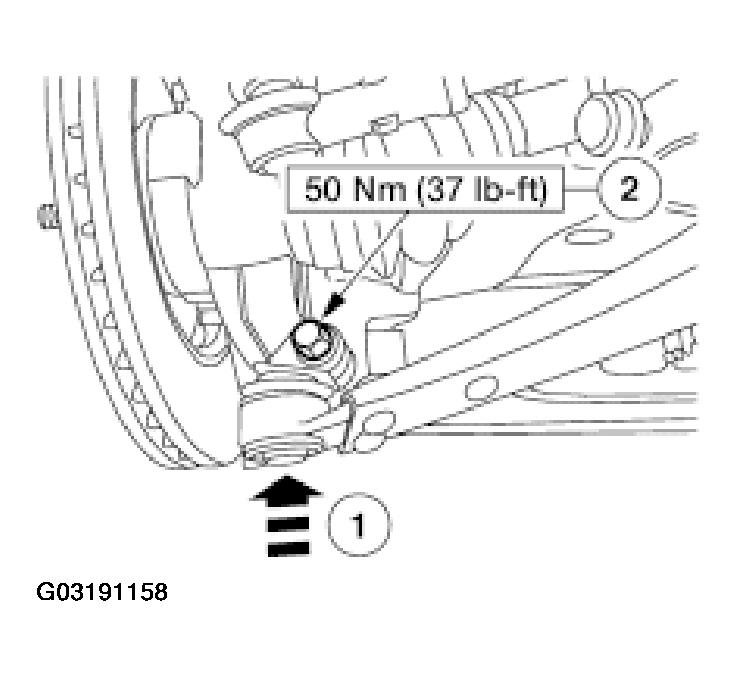

    Fig 10: Installing Lower Arm Ball Joint
    G03191158Courtesy of FORD MOTOR CO.
  15. Install the lower arm ball joint.
    1. Install the lower arm ball joint.
    2. Install the bolt.
  16. Attach the stabilizer bar connecting links to the stabilizer bar (LH side shown).

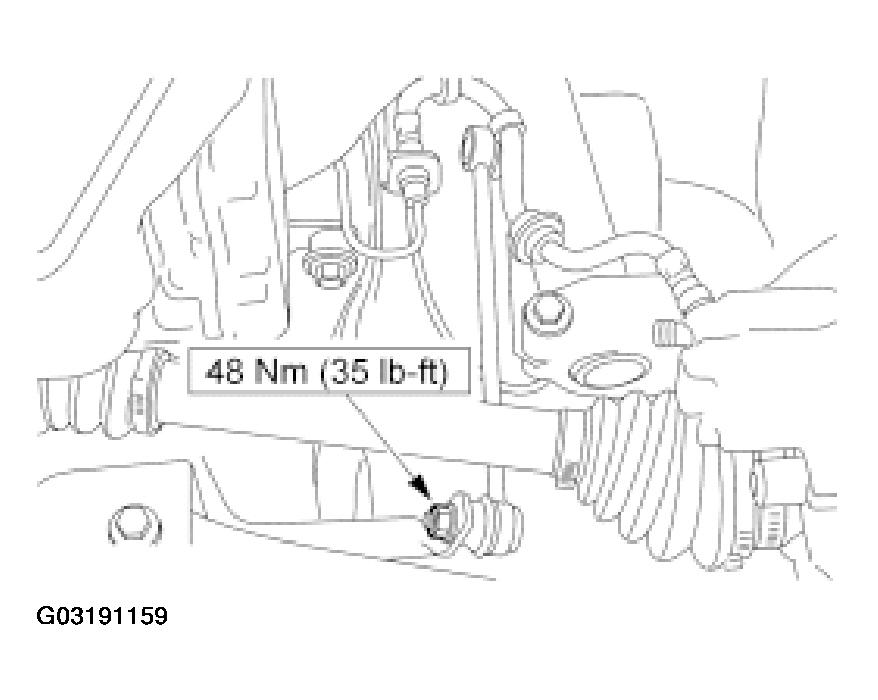

    Fig 11: Installing Stabilizer Bar Connecting Links
    G03191159Courtesy of FORD MOTOR CO.
    17. WARNING: Install new tie-rod end retaining nuts. Failure to follow this instruction may result in personal injury.

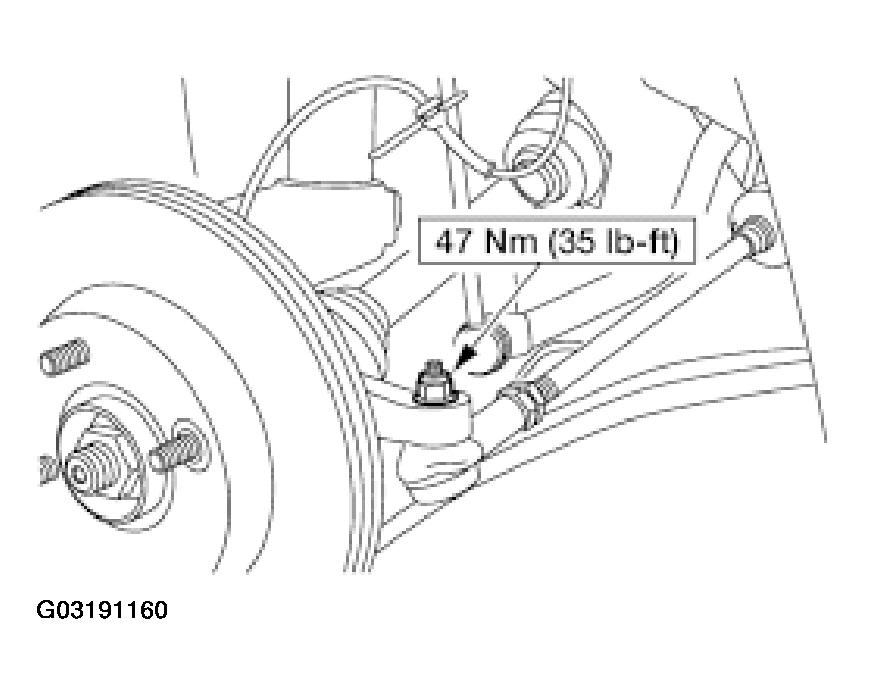

    Fig 12: Installing Tie-Rod End Retaining Nuts
    G03191160Courtesy of FORD MOTOR CO.
  17. Attach the tie-rod ends to the wheel knuckles (LH side shown).
  18. Install the front wheels and tires. For additional information, refer to WHEELS AND TIRES .
    19. WARNING: Make sure the vehicle is in the straight-ahead position, before lowering the vehicle.
  19. Lower the vehicle.
    20. WARNING: Install a new steering column pinch bolt. Failure to follow this instruction may result in personal injury.

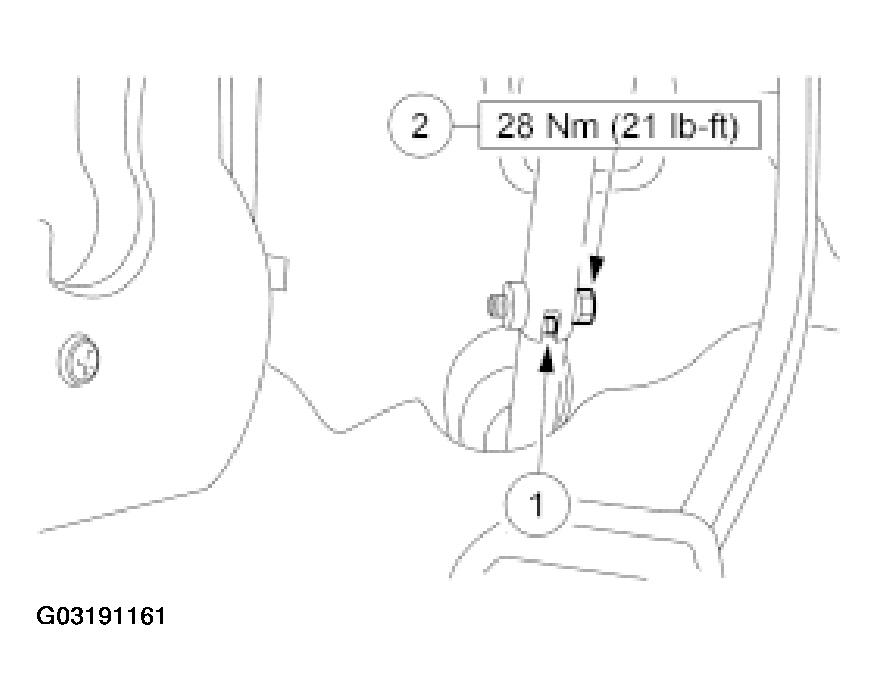

    Fig 13: Connecting Pinion Shaft Extension To Steering Column
    G03191161Courtesy of FORD MOTOR CO.
  20. Connect the steering column shaft to the steering gear pinion extension.
    1. Connect the pinion shaft extension to the steering column.
    2. Install the bolt.
    21. CAUTION: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
  21. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
