Pinpoint Test T: The Speed Control Indicator Is Never On

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

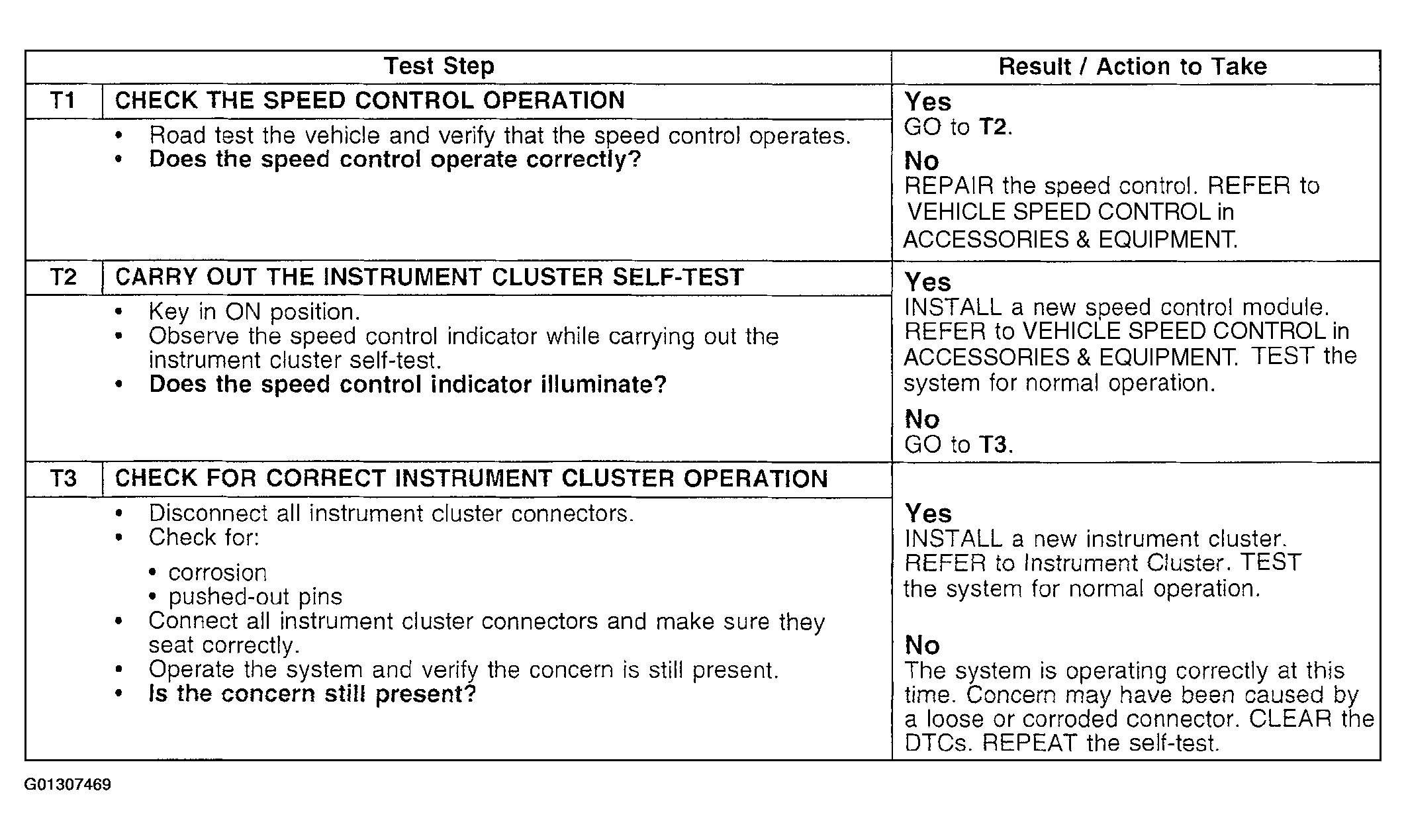

Fig 1: Pinpoint Test T: Speed Control Indicator Is Never On (Steps T1-T3)
G01307469Courtesy of FORD MOTOR CO.
