Coast Band Servo

NOTE: Inspect the seals on the coast servo piston and rod, and the coast servo cover, for damage. If the seals are damaged a new piston, rod, and the coast servo cover are installed as an assembly.

Inspect the seals.

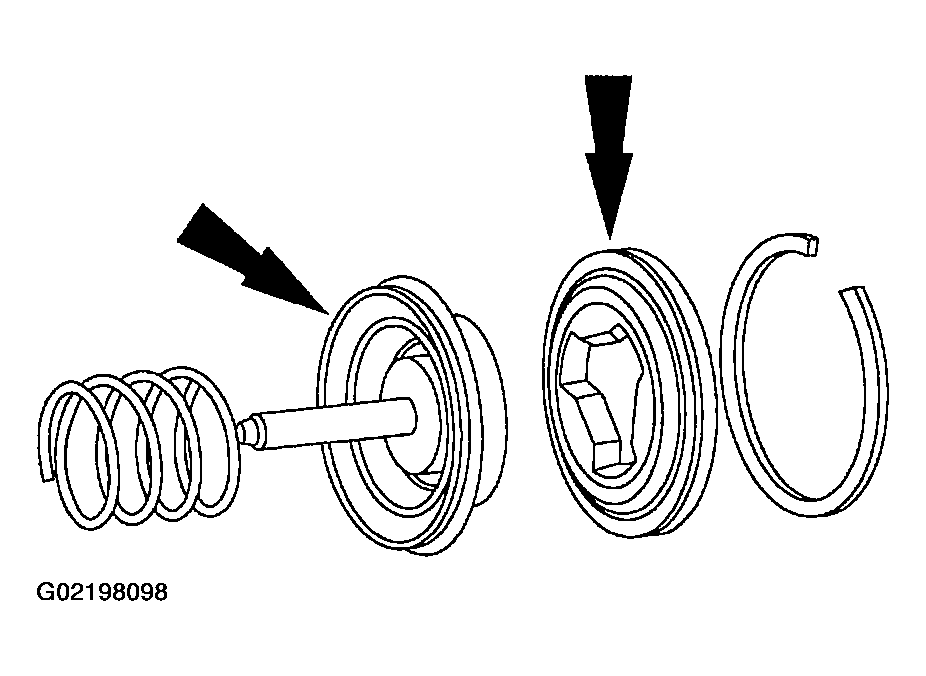

Fig 1: Identifying Coast Band Servo Components
G02198098
