Diagnostic Flow Chart

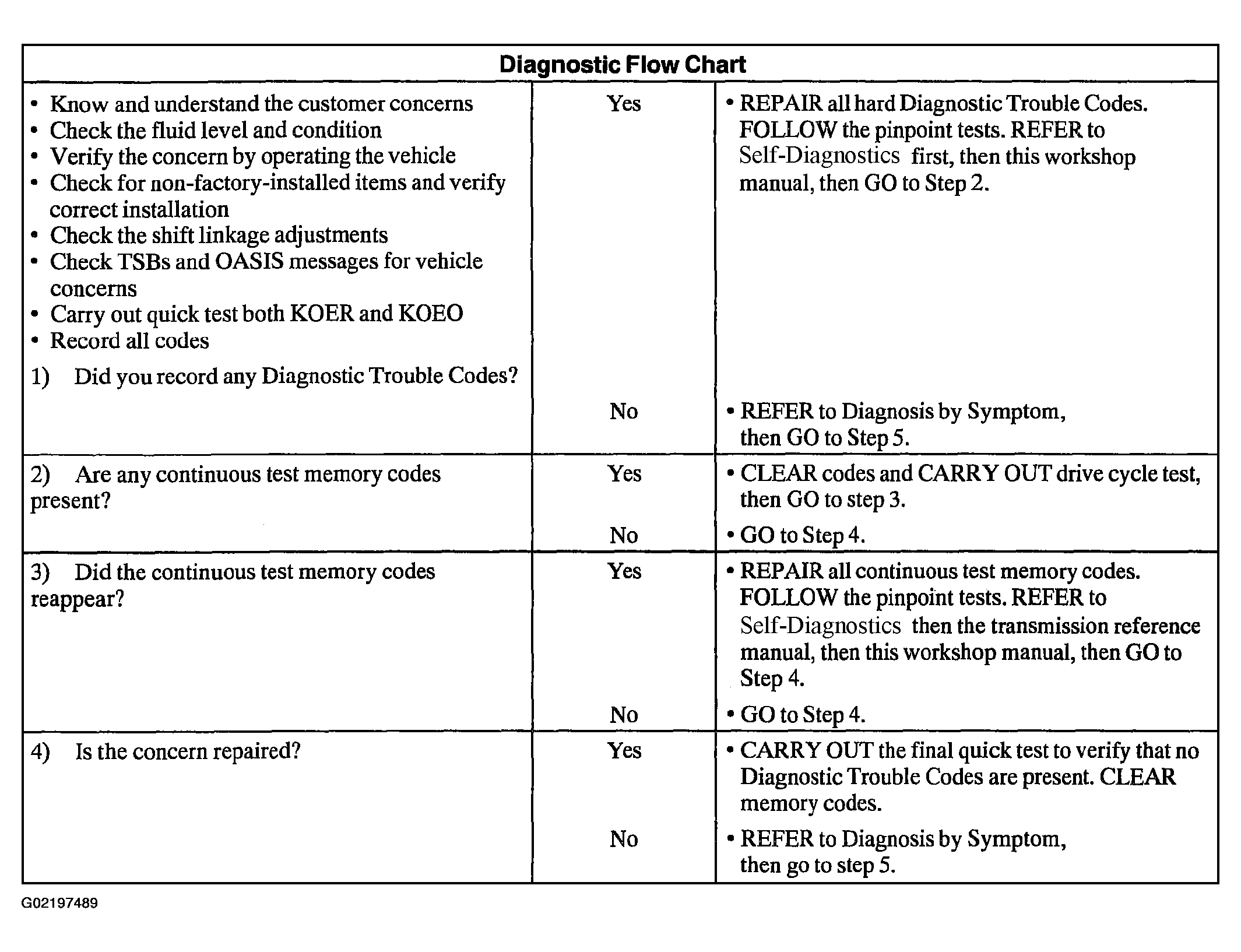

Fig 1: Diagnostic Flow Chart (1 Of 2)

G02197489

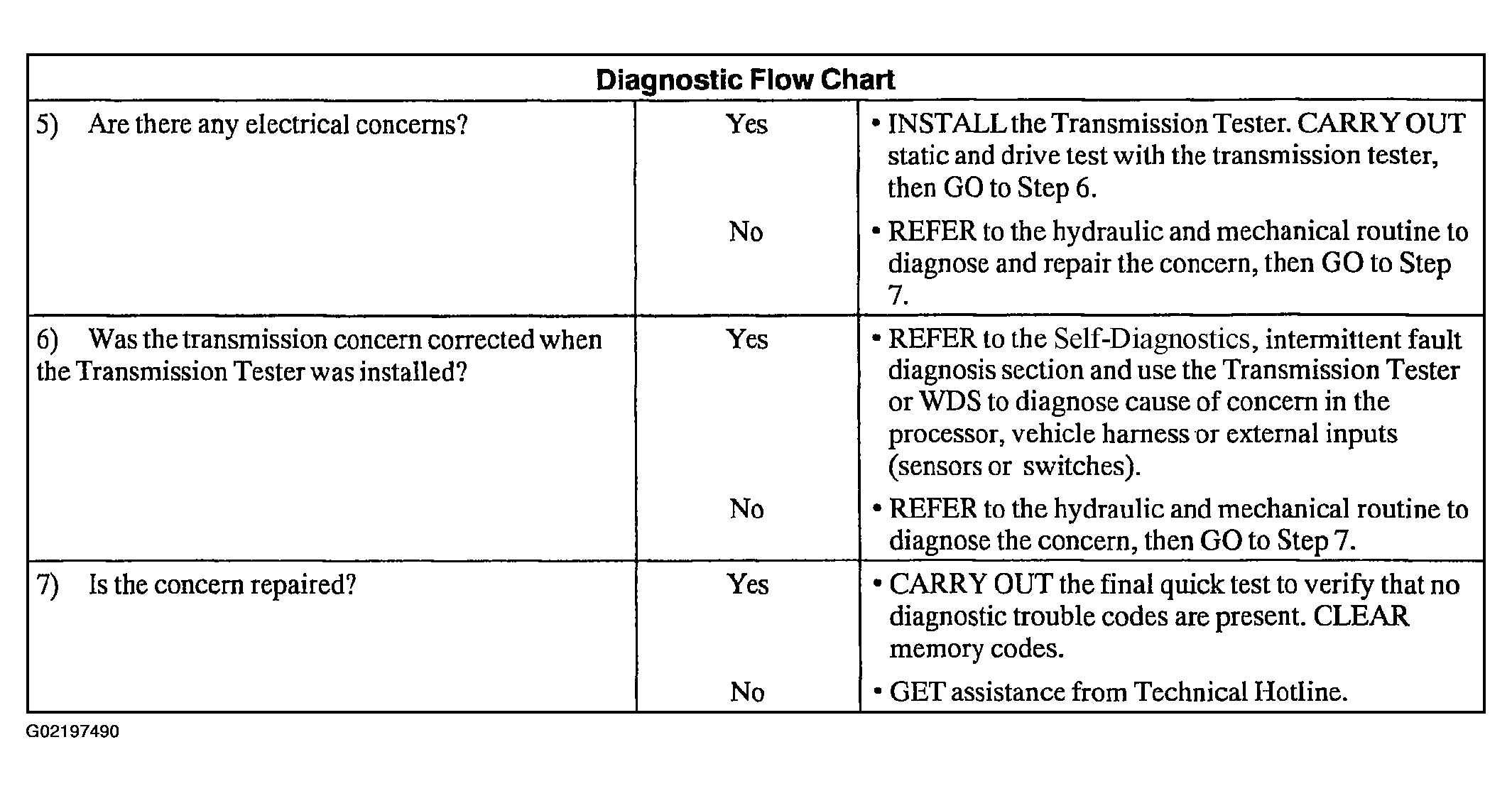

Fig 2: Diagnostic Flow Chart (2 Of 2)

G02197490
