Pinpoint Test C: Control Linkage Is Binding

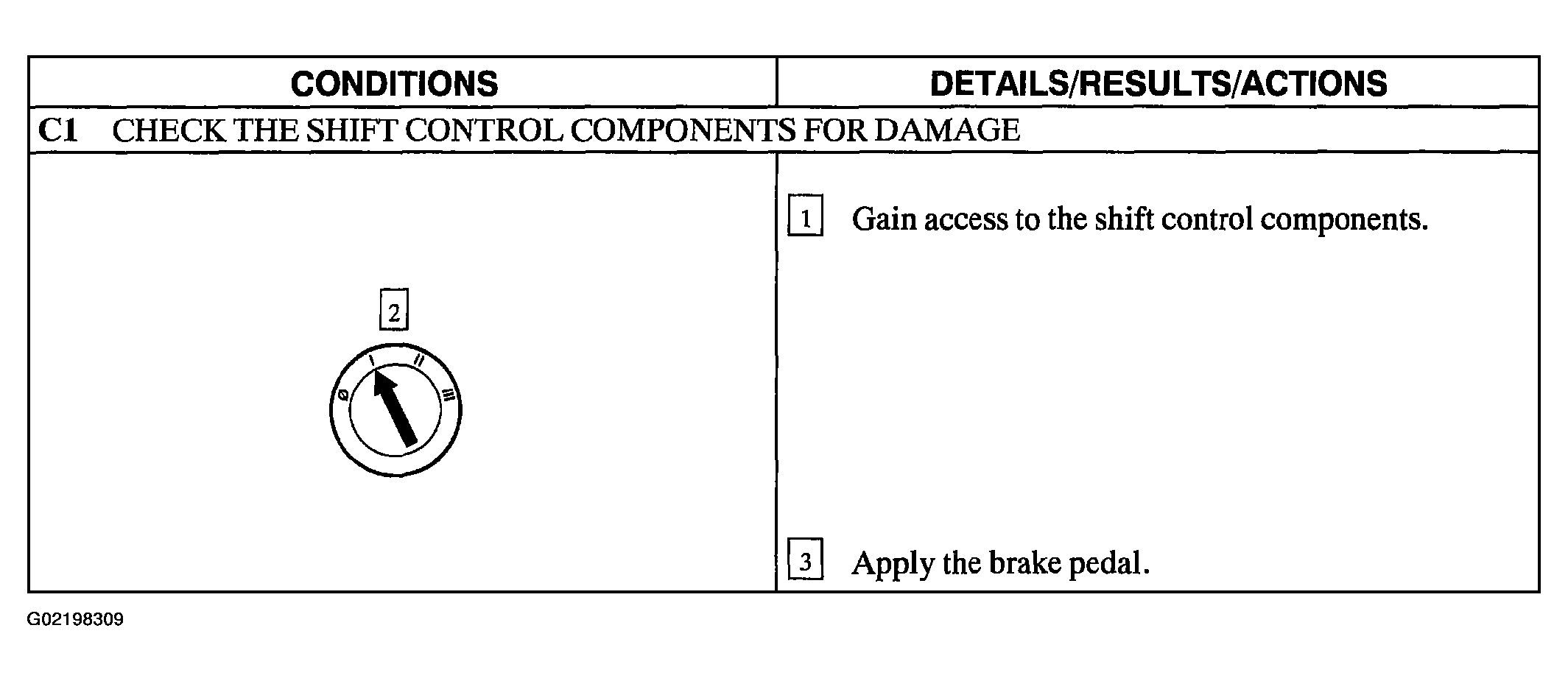

Fig 1: Pinpoint Test C: Control Linkage Is Binding (Step C1)
G02198309

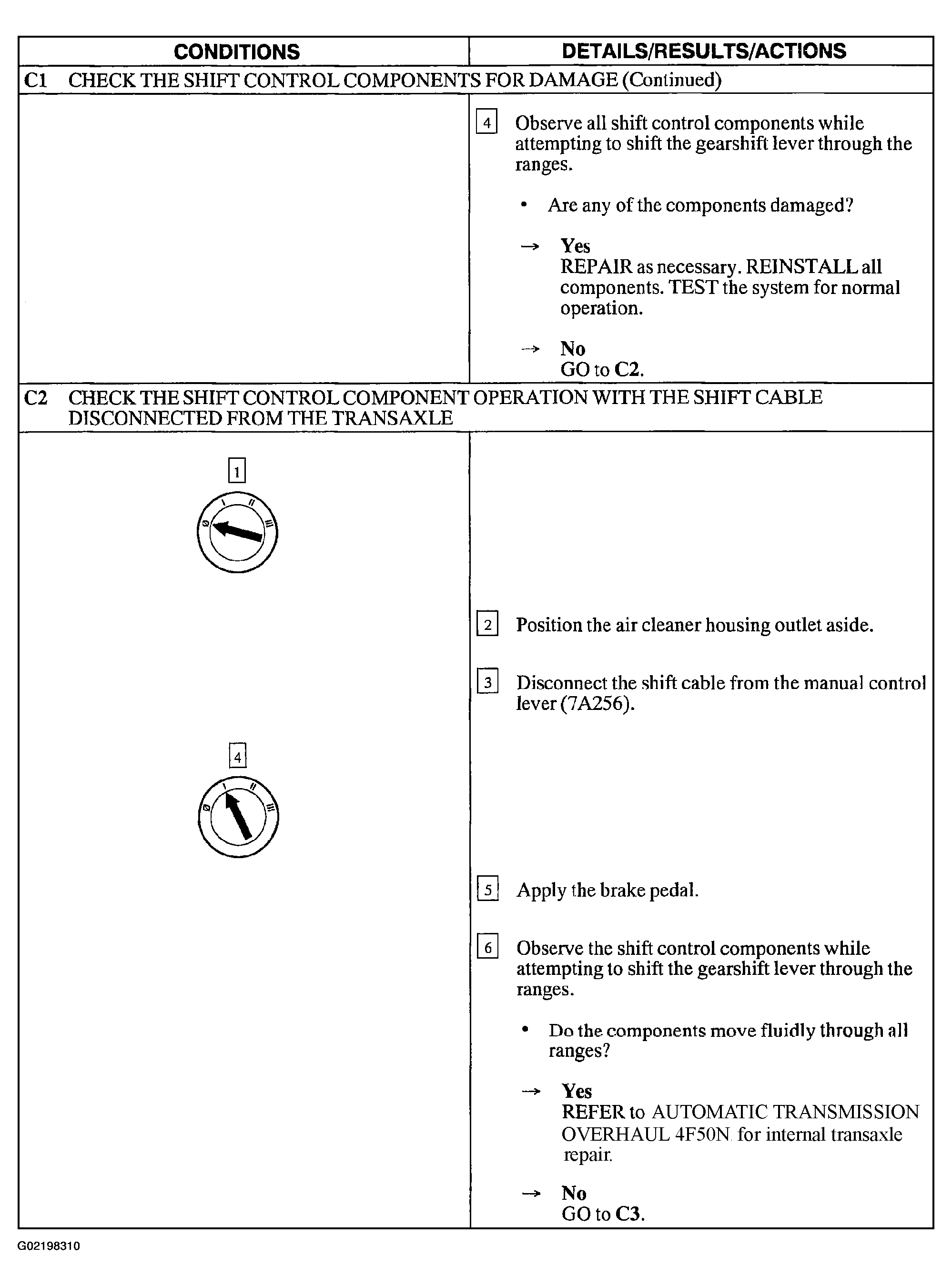

Fig 2: Pinpoint Test C: Control Linkage Is Binding (Steps C1 Cont. & C2)
G02198310

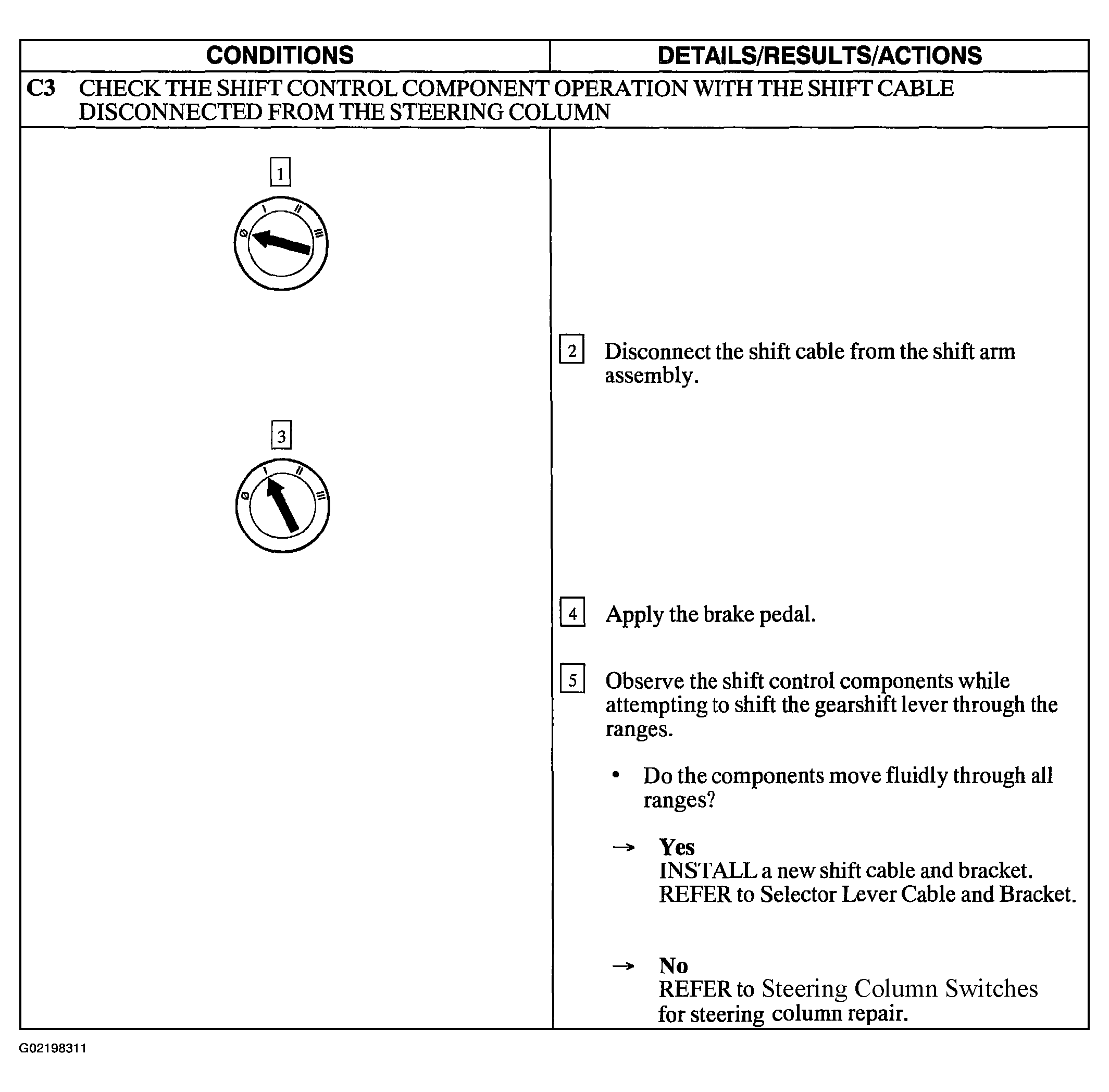

Fig 3: Pinpoint Test C: Control Linkage Is Binding (Step C3)
G02198311
