Drive Sprocket/Turbine Shaft: Assembly

  1. Make sure that the seals are mated correctly.

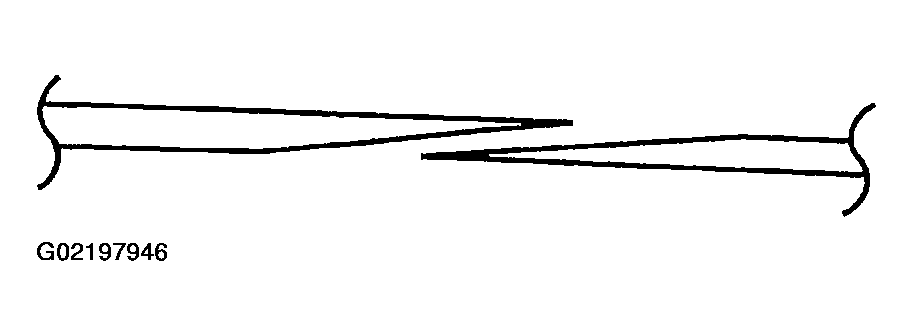

    Fig 1: Correct Pump Shaft Seals Installed Position
    G02197946
  2. Install the drive sprocket/turbine shaft seal and O-ring.
    • Install the drive sprocket/turbine shaft O-ring.
    • Install the drive sprocket/turbine shaft seal.

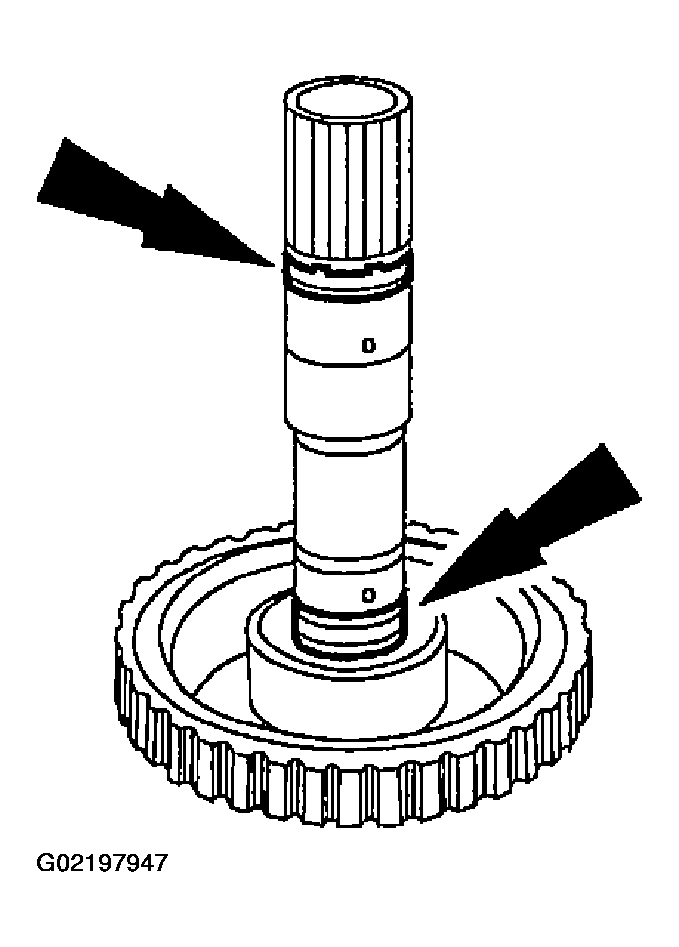

    Fig 2: Installing Drive Sprocket/Turbine Shaft Seal & O-Ring
    G02197947
  3. Install the turbine shaft front seal.

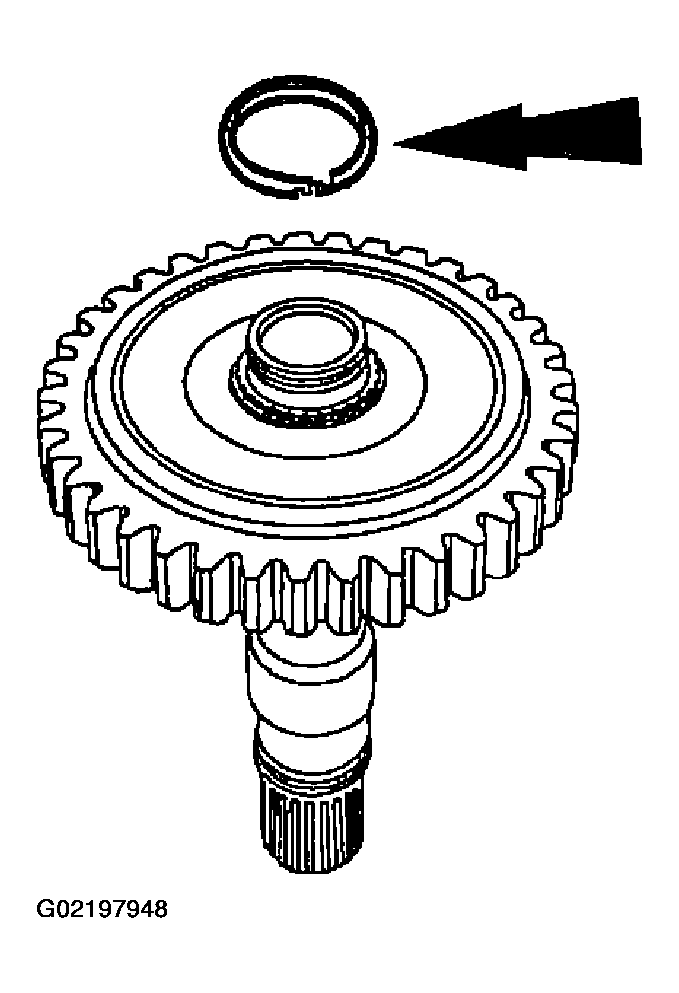

    Fig 3: Installing Turbine Shaft Front Seal
    G02197948
  4. Make sure that the seal is locked correctly.

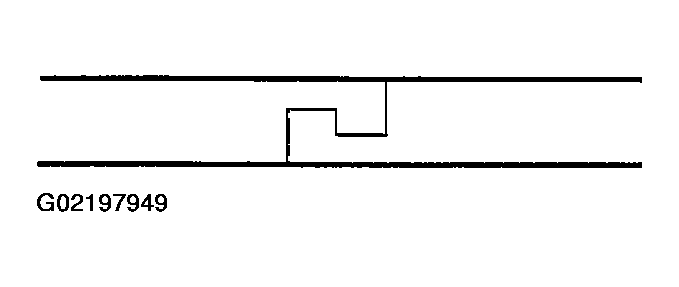

    Fig 4: Turbine Shaft Front Seal Correctly Locked
    G02197949
