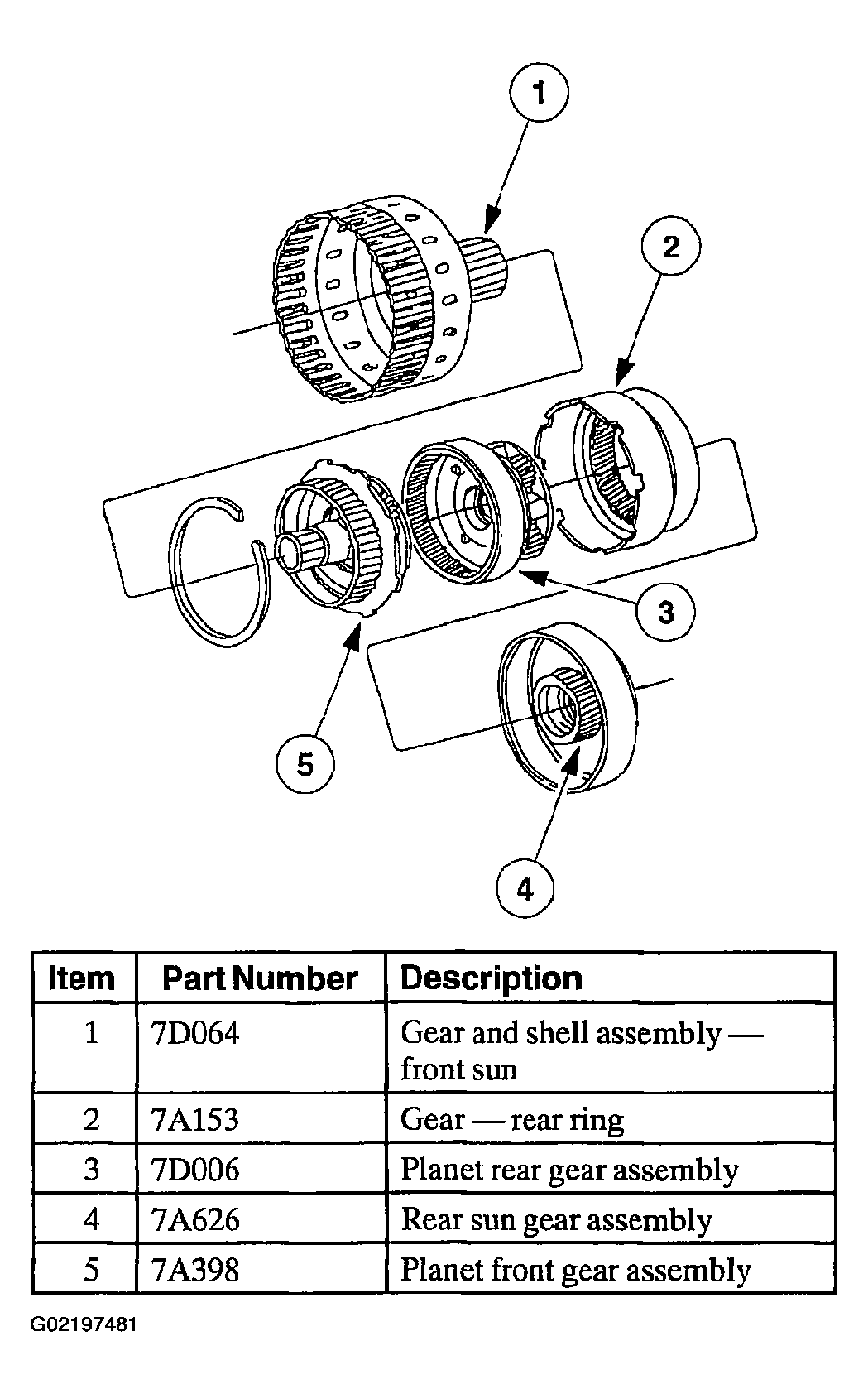

Planetary Gearset
The transaxle has two planetary gearsets to provide operation in reverse and four forward speeds.
The gearsets are comprised of the following components:
- Front sun gear (part of the front sun gear and shell assembly).
- Front carrier.
- Rear ring gear.
- Front ring gear and rear carrier.
- Rear sun gear.
