Door lock switch, passenger side (14028)

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

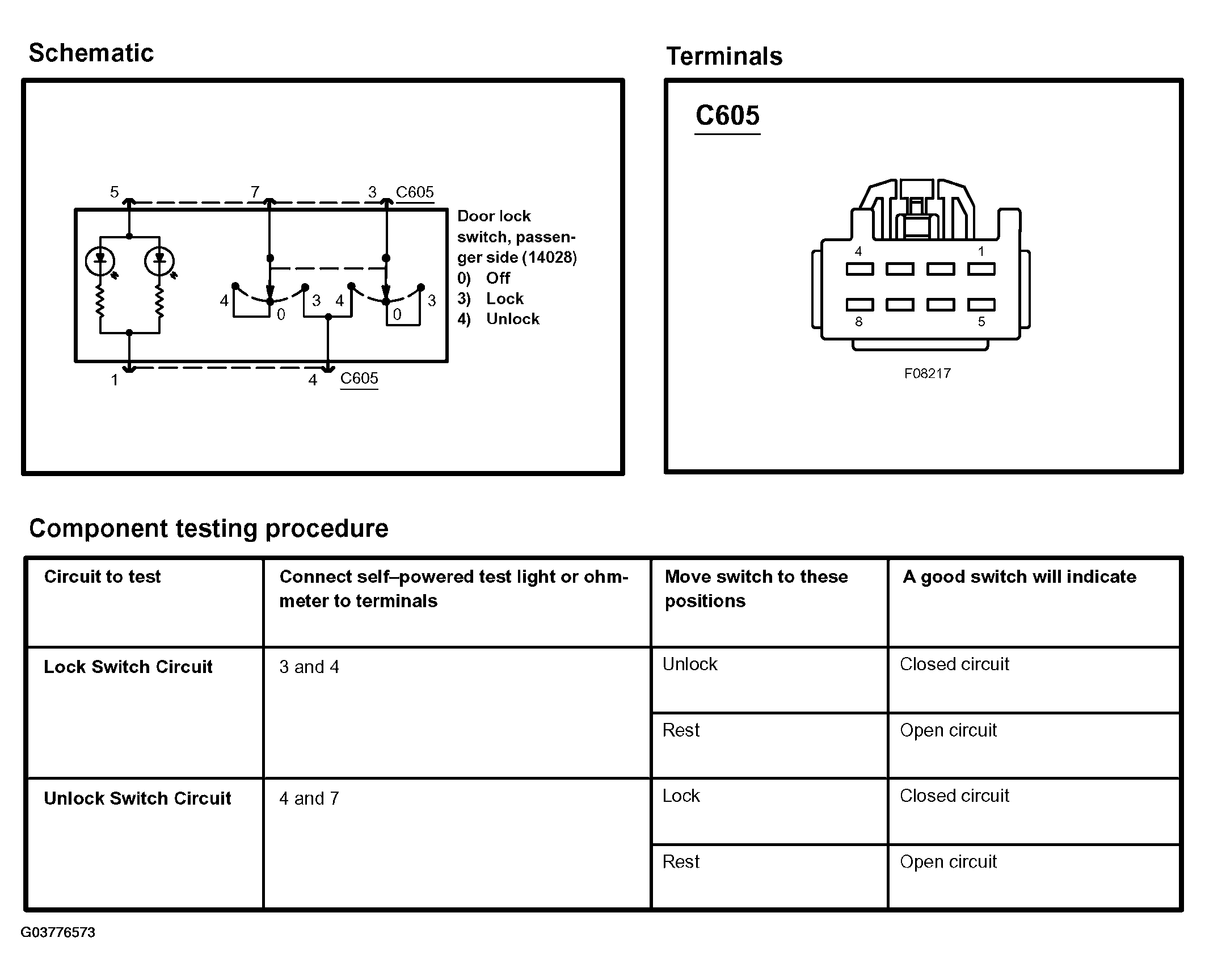

Fig 1: Testing Door Lock Switch, Passenger Side (14028)
G03776573Courtesy of FORD MOTOR CO.
