Keypad Switch Assembly Connector - C500

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

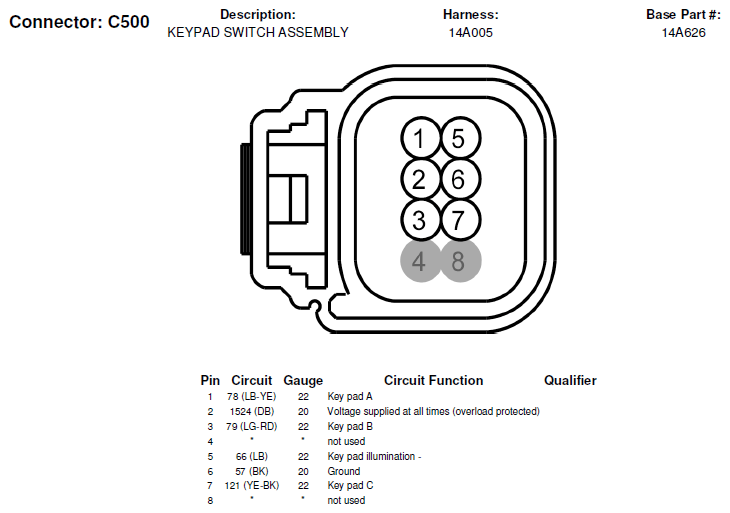

Fig 1: Keypad Switch Assembly Connector End View (C500)
G06414233Courtesy of FORD MOTOR CO.
