Front Heated Seat Module Connector - C681

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

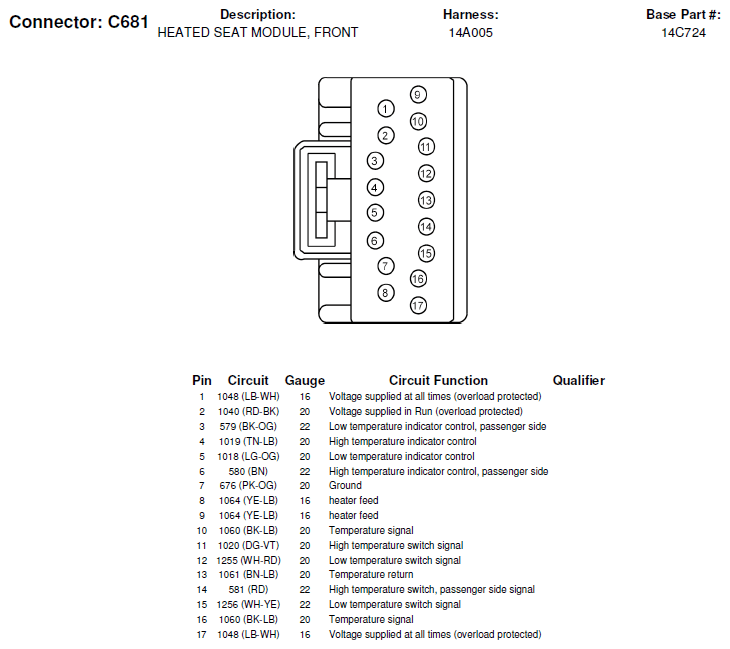

Fig 1: Front Heated Seat Module Connector End View (C681)
G06414272Courtesy of FORD MOTOR CO.
