Central Junction Box

NOTE: Central junction box is located under driver's side of instrument panel. See Fig 1.

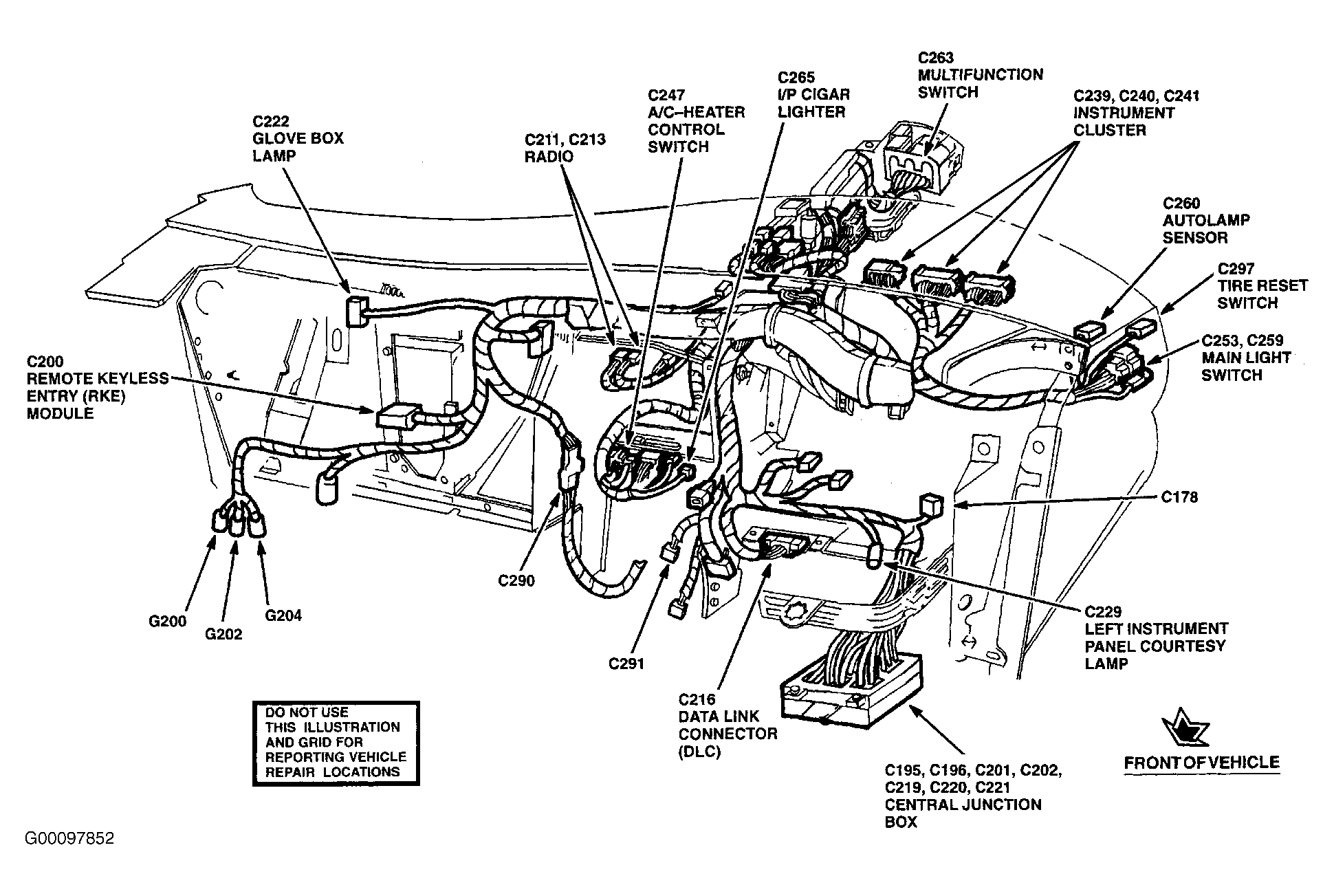

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Central Junction Box Components

Courtesy of FORD MOTOR CO.

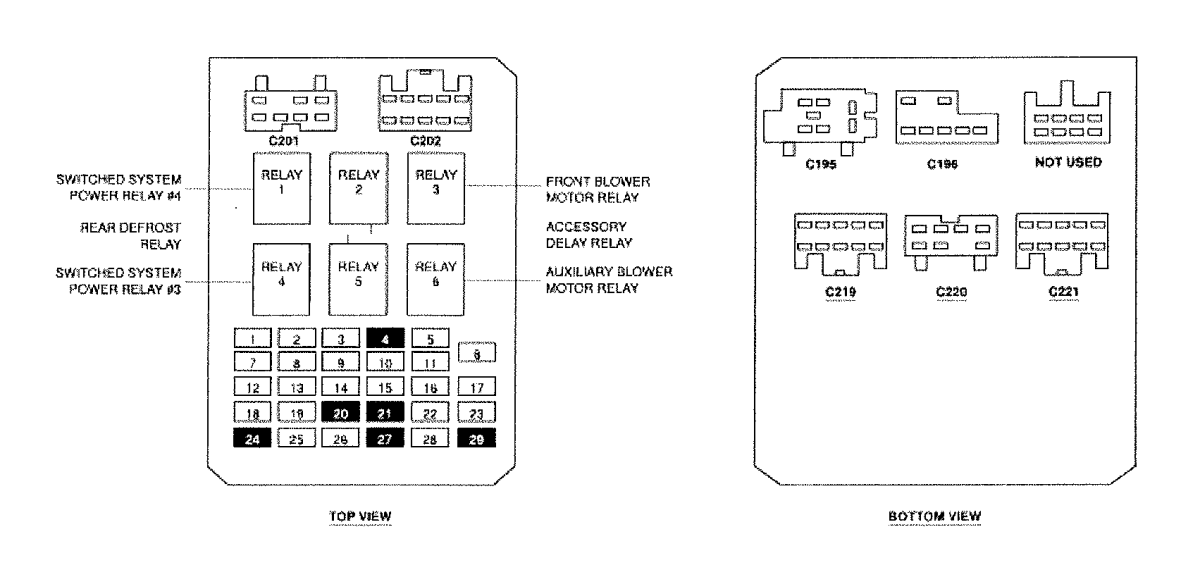

Fig 3: Central Junction Box Legend

Courtesy of FORD MOTOR CO.
